Swiftech APOGEE-LP (Socket 775/1156/1366) Low - Profile CPU Water-block

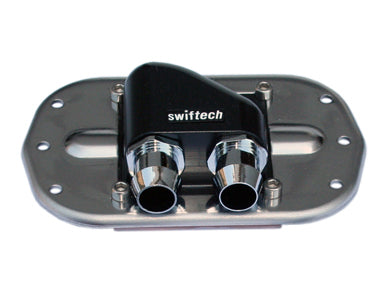

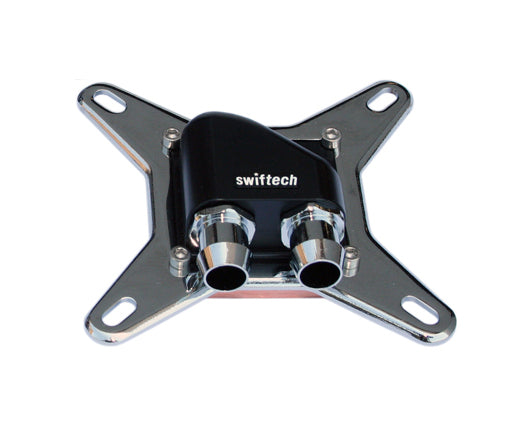

The Apogee ? LP (LP stands for Low Profile) CPU water-block is a high-performance, flow agnostic waterblock using the same micro-pin technology as the award-winning Apogee ? XT.

The horizontal orientation of the inlet and outlet ports facilitates installation of the block in space constrained environments such as 1U racks or Small Form Factor Computers.

Flow characteristics:



Comparative performance data:



Test setup

• Processor: CoreÂ? i7 920 @ 4.1 Ghz at 1.42V, HT enabled, 100% load.


• Cooling system: MCR320 Drive radiator, with built-in MCP355 pump at 100% speed (4500 rpm), and Gentle Typhoon fans (D1225C12B5AP-15) running at 100% speed (1850 rpm).

Motherboard and CPU Compatibility

In stock configuration, the ApogeeÂ? LP is compatible with:

• Intel® desktop and server processors using socket LGA775, 1156 & 1366 - The Intel-universal hold-down plate is installed by default. Motherboard back plates for desktop boards class boards in 1156 and 1366 socket are included. Socket 775 back-plate is sent free of charge upon request. In server class boards, the waterblock bolts directly onto the existing motherboard back-plate.


• Optional Part # Apogee-GTZ-AM2-HD, provides compatibility with AMD® Socket AM2, and AM3 and is fully compliant with the component keep-out specification.

AMD® desktop and server processors using socket AM2 and AM3 - Installation of the hold-plate is required.

Optional Part # Apogee-GTZ-1U-S-HD, is a multi-platform hold-down plate and provides compatibility with the following legacy sockets:

Intel® XeonÂ? socket 771, and legacy 603, 604
AMD® socket F, and legacy 754, 939, 940

Due to the hybrid nature of this hold-down solution, users are advised to check for possible clearance issues with their particular motherboards by using the schematic below.



Fittings & tubing compatibility

The waterblock ships with a set of 3/8 barb fittings. The inlet and outlet port threads comply with the G1/4 specification.

Specifications

The CNC machined C110 copper base plate is at the heart of the ApogeeÂ? LP cooling efficiency. An array of micro-pins measuring 0.25 x 0.25mm (.01 x .01) reduces thermal resistance, and provides exceptional performance at low to moderate flow rates.



The housing is CNC machined out of black Delrin



Critical Dimensions



Base plate dimensions: 2 x 2 (50.5 x 50.5 mm)
Inlet & outlet port thread specification: G1/4
Assembly weight: : 6.7 oz (190 g)

*** How to obtain your free AMD mounting hardware ***

• World; except Europe, Australia & China: email help@swiftech.com with a copy of your proof purchase (invoice)
