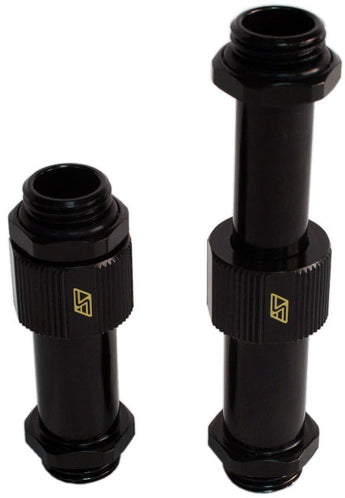

Swiftech G¼ Male-Male Lok-Seal Long Extension Fitting (41-65mm Range) - Black

G14-MMEXT-LONG-BK

Swiftech G?Male-Male Lok-Seal Long Extension Fitting (41-65mm Range) - Black

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$9.95 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

G¼ Male-Male adjustable connector fittings for multiple VGA waterblocks in SLI or CrossfireX. This product is part of the Lok-Seal ? family of fittings.

Recommended use

  • Initial Tip: If possible, attach the fittings to the cooling devices first! While not mandatory, it is always preferable to fasten a fitting to a cooling device prior to installing the device inside the case. This will eliminate interference issues that may be encountered when working with tools inside of space constrained enclosures.
  • Fasten the fitting by hand until it mates with the surface of the cooling device. The amount of force necessary to screw the fittings down in ?finger tight ? mating position may vary from one device to another depending on various factors. Users are advised to always visually check on the actual position of the fitting relative to the device surface rather than solely relying on feel. There should be little -not to exceed the thickness of a sheet of paper, or no visible gap between the fitting lower lip and the device surface. See the illustration below.
Specifications

Dimensions






Recommended use




  • Initial Tip:  If possible, attach the fittings to the cooling devices first! While not mandatory,  it is always preferable to fasten a fitting to a cooling device prior to installing the device inside the case. This will eliminate interference issues that may be encountered when working with tools inside of space constrained enclosures.



  • Fasten the fitting by hand until it mates with the surface of the cooling device. The amount of force necessary to screw the fittings down in ?finger tight? mating position may vary from one device to another depending on various factors.  Users are advised to always visually check on the actual position of the fitting relative to the device surface rather than solely relying on feel. There should be little -not to exceed the thickness of a sheet of paper, or no visible gap between the fitting lower lip and the device surface. See the illustration below.









  • For complete long-term safety and leak-free operations, Swiftech® recommends that the fittings be locked in place using the recommended tools and that the torque levels specified below be applied:




























Recommended Torque


Soft Material

Minimum



Maximum (*)


Acetal (POM) and acrylics

1/4 of a turn after initial contact between mating surfaces



1/2 of a turn after initial contact between mating surfaces


Hard Materials

Recommended


Copper, brass, aluminum

1/8 of a turn after initial contact between mating surfaces








(*) For full 5mm thread depth ? please inspect the device threads prior to applying the maximum
recommended torque ? when partial threads exist due to application necessity, only apply the
minimum torque.
















































Recommended Tools



A small adjustable wrench with jaw opening up to 1? (25.4mm)

may be used as a universal tool instead of the specific tools listed below


Specific tool sizes



Male/male

Connectors


Fitting base hex:



Flat wrench


Lock Nut



Flat or adjustable wrench

G1/4 MMEXT Short (11-18mm)
Metric: 16mm

Inch: 5/8?

N/A
G1/4 MMEXT Medium (20-33mm)
Metric: 16mm

Inch: 5/8?


Metric: 17mm

Inch: adjustable wrench

G1/4 MMEXT Long  (41-65mm)
Metric: 16mm

Inch: 5/8?


Metric: 17mm

Inch: adjustable wrench
