Swiftech MCP655-B Special Edition 12 VDC Pump Without Speed Controller Swiftech MCP655-B Special Edition 12 VDC Pump Without Speed Controller
Swiftech MCP655-B Special Edition 12 VDC Pump Without Speed Controller

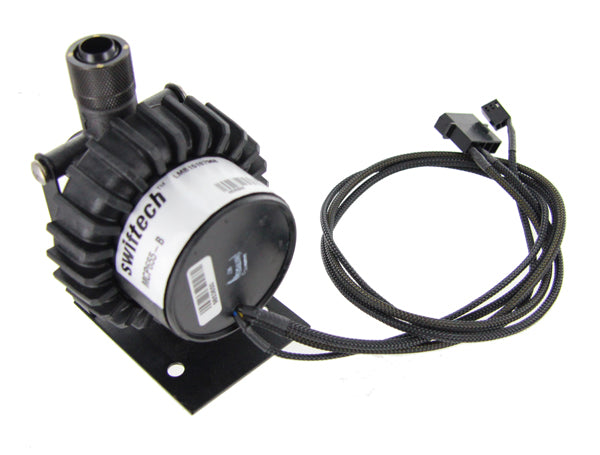

Swiftech MCP655-B G1/4 Threaded Special Edition 12 VDC D5 Pump Without Speed Controller

Swiftech

MCP655-B-SE

Product Details:

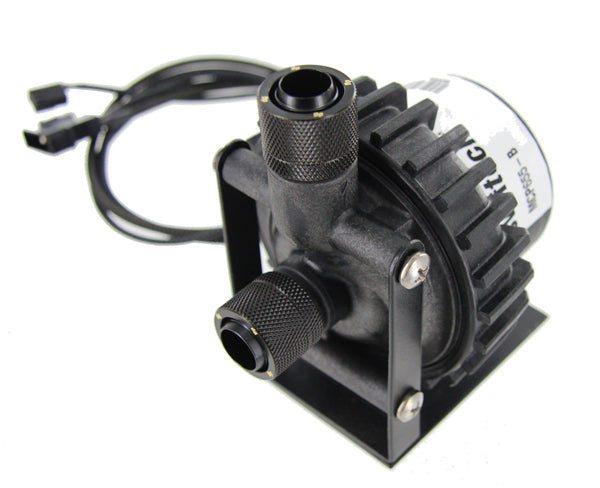

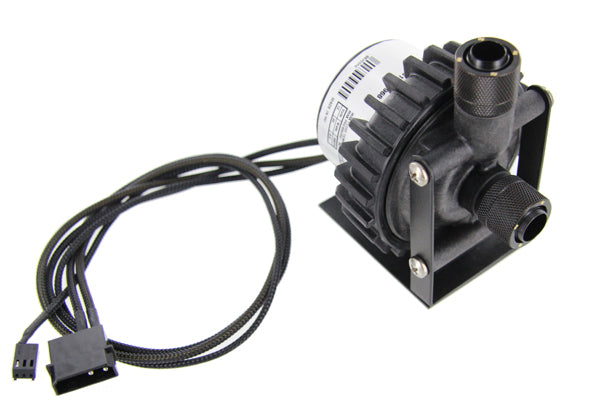

This is the same great Swiftech MCP655 pump with couple of added frills!  We've tapped G1/4 threading into the pump housing so you can use any of your favorite fittings.  We're also providing the pump with single-braid sleeved cables, any color option below!


***Note: Fittings shown in pictures are for representation only and are not included in price



The MCP655 pump is a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime). Such reliability is afforded by the unique design of this pump, which contains only one moving part: the magnetically driven spherical impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.

The pump is completely plug-and-play, and connects directly to the computer power-supply with a standard 4 pin power connectors. It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$119.95 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Product Details:

This is the same great Swiftech MCP655 pump with couple of added frills! We've tapped G1/4 threading into the pump housing so you can use any of your favorite fittings. We're also providing the pump with single-braid sleeved cables, any color option below!

***Note: Fittings shown in pictures are for representation only and are not included in price

The MCP655 pump is a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime). Such reliability is afforded by the unique design of this pump, which contains only one moving part: the magnetically driven spherical impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.

The pump is completely plug-and-play, and connects directly to the computer power-supply with a standard 4 pin power connectors. It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium.

The MCP655 is available in two versions:
  • With a speed controller (part # MCP655)
  • Without speed controller (part # MCP655-B)

**Note: These are custom-modded in-house, so there may be a slight delay on the shipment because of work-load!
Features


  • 50,000 hours MTBF (Mean Time Between Failure) equivalent to 5 years lifetime

  • Superior 12 Volts DC convenience: plugs into the computer power supply

  • The MCP655 can be used with full confidence in any MP servers, and high-end workstations

  • Superior real world performance

  • High pressure capability of the MCP655 is particularly well adapted to high-flow systems using 1/2 ID tubing

  • Pump speed can be adjusted to yield top performance or virtually silent operations (model MCP655 only)

  • Compact Design.

  • Quiet operations even at high speed thanks to new chipset controller

  • ½ Barb fittings

  • No maintenance when used with de-mineralized water, and anti-fungal additives (Our HydrX additive is recommended)

  • Quick installation with adhesive neoprene pad, or permanent installation with thru-bolts

Specifications

Performance Data:


MCP655






























P1, P2, P3, P4, and P5 denote the speed controller settings on the MCP655 pump


MCB655-B (P4) is the maximum speed setting at which the MCP655-B operates


Specifications:

























































Nominal Voltage 12 V DC
Operating Voltage 8 to 24 V DC
Nominal Power (@ 12 V) 24 W
Nominal Current (@ 12 V) 2 Amps
Motor Type Electronically Commutated DC Spherical Brushless Motor , with automatic overload protection and low in-rush current
Nominal Head (@12v) ~ 13 ft (4 m)
Nominal Discharge (@12v) ~ 317 GPH (1200 LPH)
Connection Size 1/2 barbs (10mm)
Maximum (working) Pressure 50 PSI (3.5 BAR)
Temperature Range 32 °F to 140 °F (0 °C to 60 °C)
Electrical Connector Molex 4-pin
Weight 1.4 LB (650 g)
Impeller  material Noryl



Dimensions


MCP655
