Thermal Grizzly DeltaMate Pass Through Fitting - Matt NickelTG-DM-FIT-0216

Brass

Adapter

Thermal Grizzly DeltaMate Pass Through Fitting - Matt Nickel

Name: Thermal Grizzly DeltaMate Pass Through Fitting - Matt Nickel
Brand: Thermal Grizzly
Price: 14.99 USD
Availability: InStock

TG-DM-FIT-0216

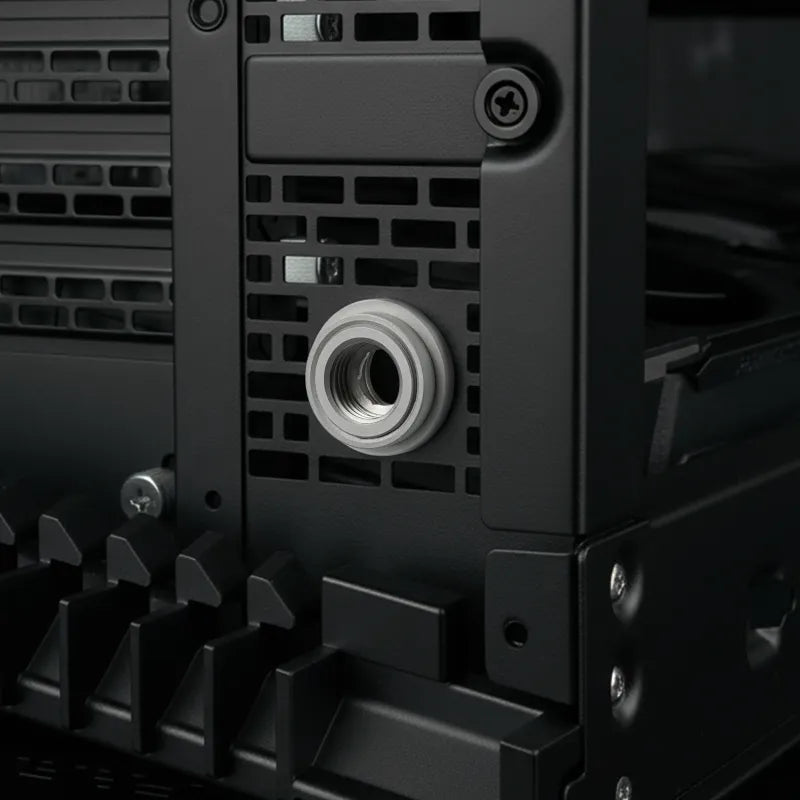

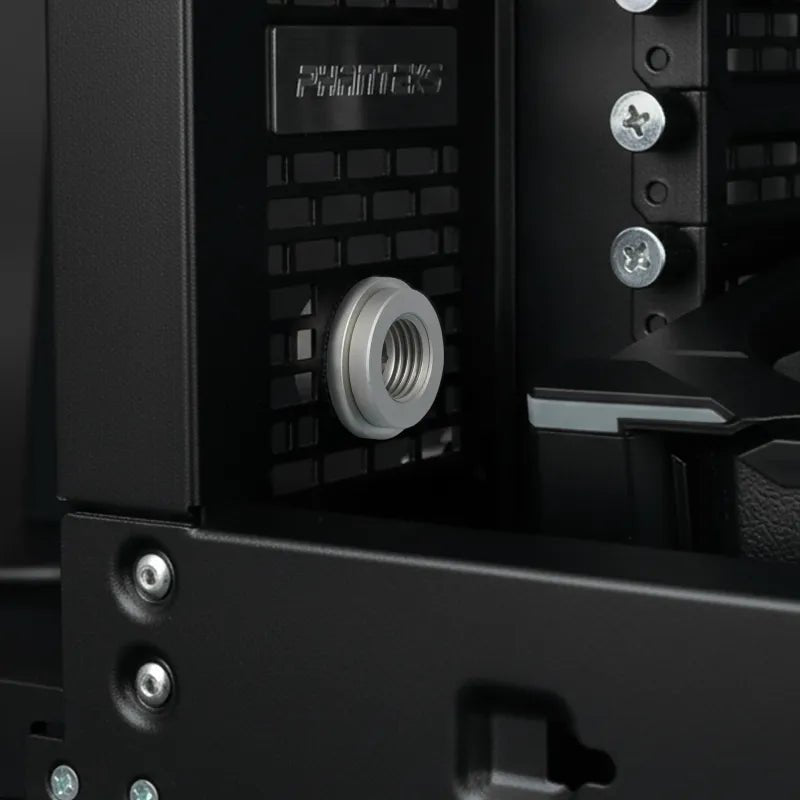

The matt nickel-plated DeltaMate Pass Through Fitting is used in a pass-through opening in a panel, such as a case wall or a PCI slot bracket. The panel thickness can be up to 5.5 mm, and the diameter of the opening can be between 18 and 22 mm. Pass-through openings of this type are present on the case (usually on the rear) or can be retrofitted in the form of a PCI slot bracket. They are designed to connect two chambers within a case or to enable the use of an external radiator.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

7 in stock, ready to ship

$14.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

Product information "DeltaMate Pass Through Fitting - Matt Nickel"

DeltaMate fittings are water-cooling hose fittings for the individual components of a custom water-cooling system. In the usual Thermal Grizzly quality, the fittings are precision-machined from brass. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while also being harder and more corrosion-resistant than copper. The robust design of DeltaMate fittings allows installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate ports enables seamless integration of the individual products.

General information

Properties

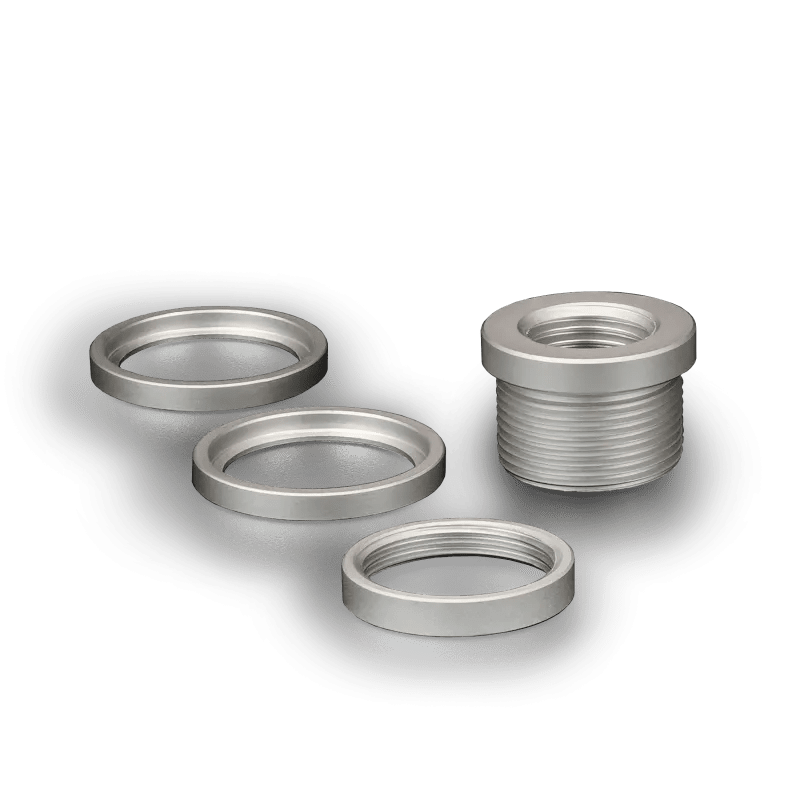

Simple adapter that enables the connection of two male-thread fittings through a panel.
Configurable spacers enable a clean installation across a wide range of different panel thicknesses.
Uniform outer diameter across all DeltaMate ports for completely seamless integration.
Robust construction allows installation using an 8 mm hex key.

Features

Properties

Simple adapter that enables the connection of two male-thread fittings through a panel.
Configurable spacers enable a clean installation across a wide range of different panel thicknesses.
Uniform outer diameter across all DeltaMate ports for completely seamless integration.
Robust construction allows installation using an 8 mm hex key.

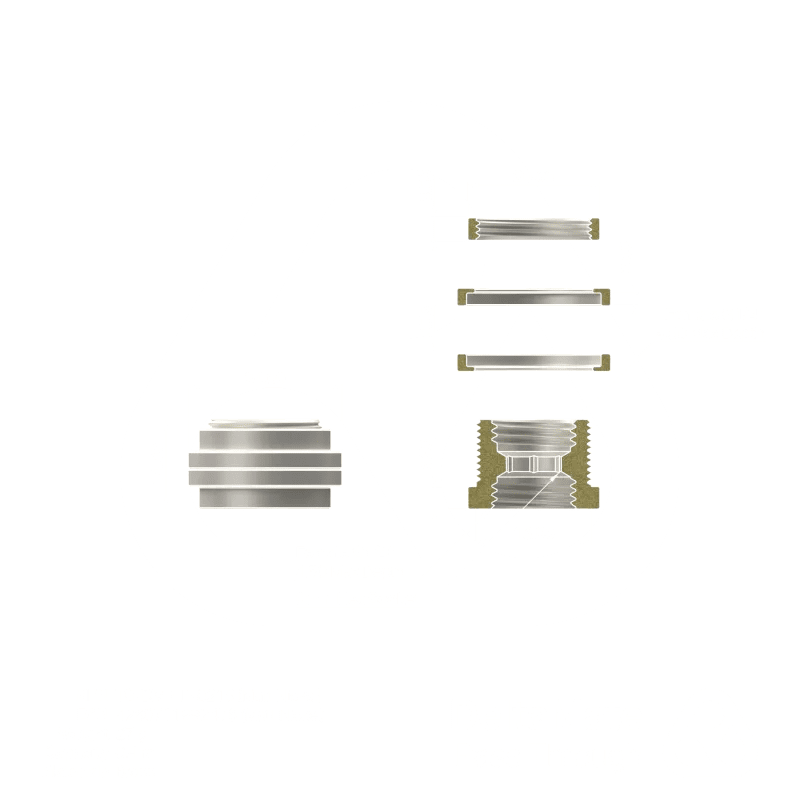

Specifications

Color: matt nickel
Material: brass
Threading: G1/4" female
