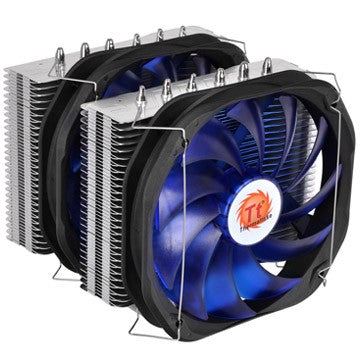

Thermaltake CLP0587 Frio Extreme 140mm CPU Cooler

Thermaltake CLP0587 Frio Extreme 140mm CPU Cooler

- Ultimate Over-clocking Design Structure, support up to 250W.
- The Combination of VR and PWM Control Function Fan.
- Universal Socket Compatibility.

Ultimate Over-clocking Design Structure, support up to 250W

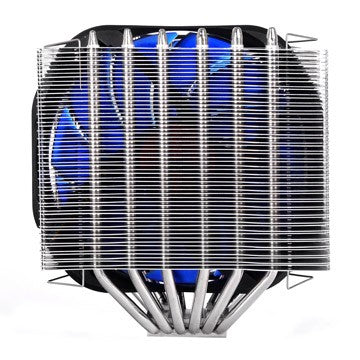

• Dual tower heat-sink with 0.4mm aluminum fins provide large surface for heat dissipation.


• 6 x Ø6 mm-U-shape copper heat pipes accelerate heat conductivity.

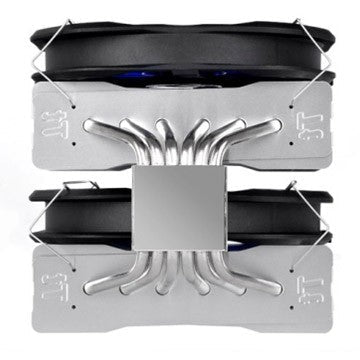

• Mirror-finished copper base, provide perfect contact with CPU.


• Premium thermal grease maximizes heat transfer from the CPU onto the copper base for faster dissipation.

The Combination of VR and PWM Control Function Fan


• Dual 14cm high performance blue blade designed fans, spins from 1,200 to 1,800RPM.


• Combination of VR and PWM functions, switchable upon userÂ?s preferences.


• Tool-less and Easy installation design for quicker disassemble and assemble the fan module.

Universal Socket Compatibility & Accessory Package

• All-in-one back-plate design, support all Intel and AMD platform


• Universal socket support :
  Intel: LGA 2011, 1366, 1155, 1156, 775
  AMD: FM1, AM3+, AM3, AM2+, AM2

Dimension

---

Intel Motherboard Installation

Step 1	Step 2
Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers evenly.	Put the two Intel mounting bars along with the four long screws and secure them with the four nuts.
Step 3	Step 4
For LGA2011: Screwing the LGA 2011 screw onto motherboard tightly and put the two Intel mounting bars on the LGA 2011 screws. Fasten the four nuts onto the mounting bars tightly.	Install the fan clips onto the heat-sink separately
Step 5	Step 6
Applying a thin layer of thermal grease onto the CPU.	Screw the heat-sink onto the motherboard with the mounting plate tightly.
Step 7	Step 8
Fix the two fans onto the heat-sink with fan clips separately.	Connect two fan cords to the controller close to the VR Knob. Link the power cord to the CPU FAN slot and the right slot of the controller.
Step 9
Connect the 4-pin wire of controller to the motherboardÂ?s CPU fan connector. Installation is done.

---

AMD Motherboard Installation

Step 1	Step 2
Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers evenly.	Put the two AMD mounting bars along with the four long screws and secure them with the four nuts.
Step 3	Step 4
Install the fan clips onto the heat-sink separately.	Applying a thin layer of thermal grease onto the CPU.
Step 5	Step 6
Screw the heat-sink onto the motherboard with the mounting plate tightly.	Fix the two fans onto the heat-sink with fan clips separately.
Step 7	Step 8
Connect two fan cords to the controller close to the VR Knob. Link the power cord to the CPU FAN slot and the right slot of the controller.	Connect the 4-pin wire of controller to the motherboardÂ?s CPU fan connector. Installation is done.

Specifications:

Dimension	148.2(L) x 151(W) x 160(H) mm (2 Fans)
Material	Aluminum Fins Aluminum & Copper Base
Heatpipe	6mm x 6 PCS
Fan Dimension	140(L) x 140(H) x 25(W) mm
Rated Voltage	12 V
Rated Current	0.5 A
Power Input	7.2 W
Fan Speed	1200 ~ 1800 RPM
Max. Air Flow	106.2 CFM
Max. Air Pressure	2.34 mmH2O
Noise	18 dBA
Life Expectancy	100,000 Hours
Connector	4 Pin
Power Input	250W
Weight	1,230g
Compatibility	Intel LGA 2011 LGA 1366 Core i7 LGA 1155/1156 Core i7 / Core i5 / Corei3 LGA 775 Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium D / Pentium 4/Pentium / Celeron D / Celeron AMD FM1 A-series AM3+ / AM3 Phenom II / Athlon II / Athlon / Sempron series AM2+ / AM2 Phenom II / Phenom / Athlon / Sempron series
P/N	CLP0587
Warranty	10 Years

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
