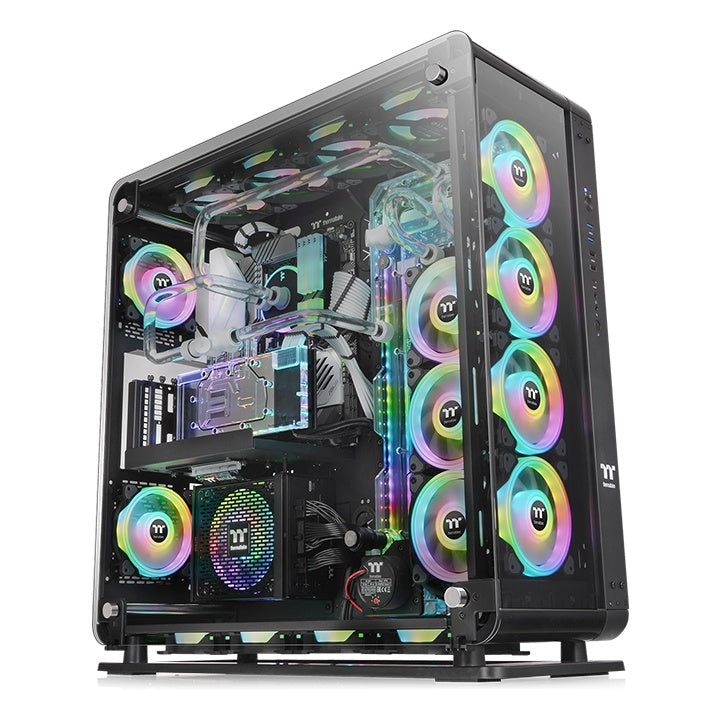

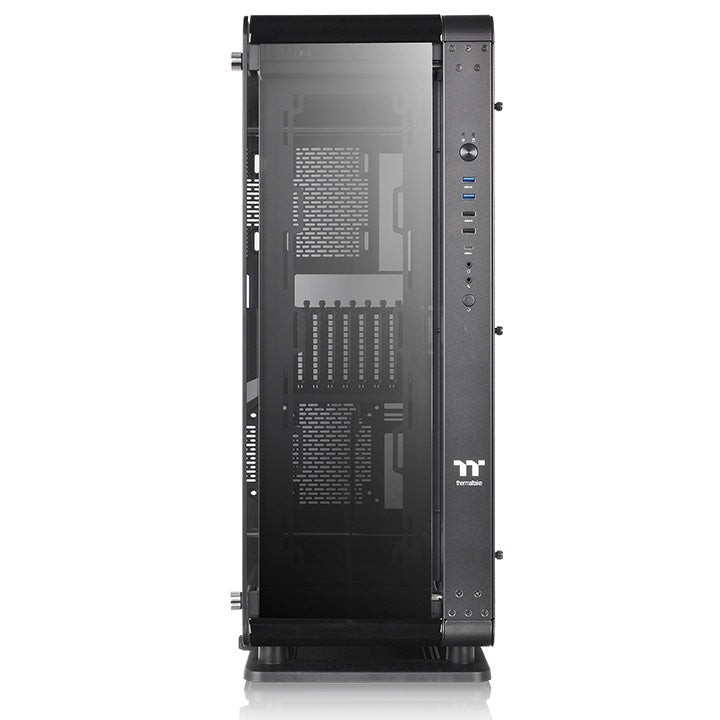

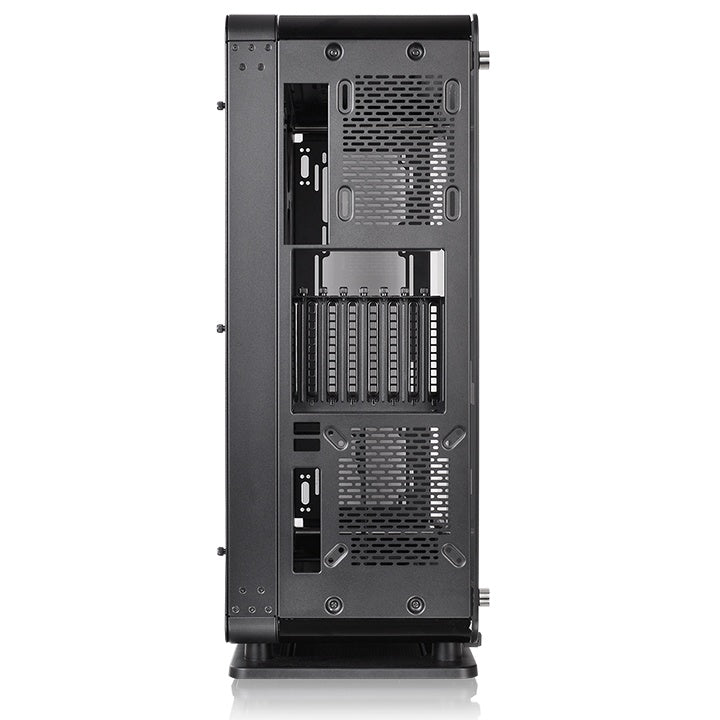

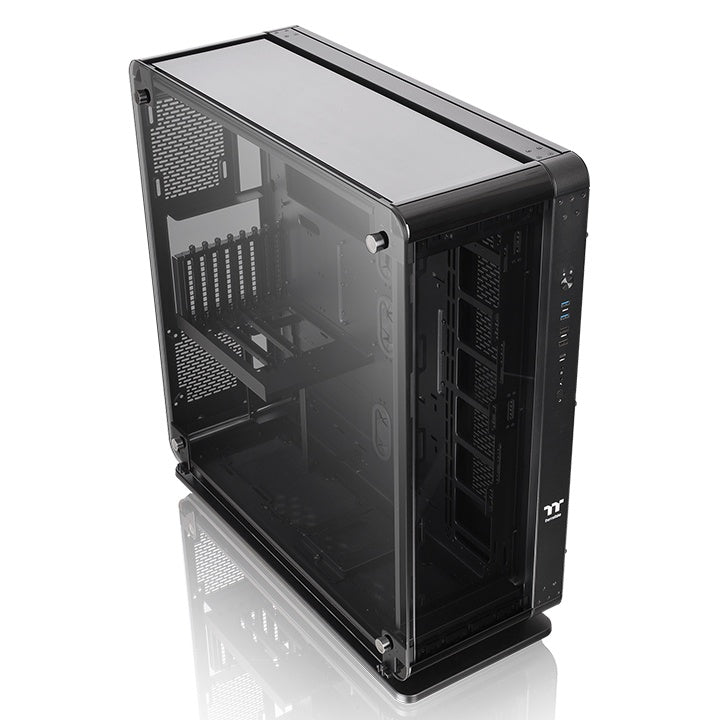

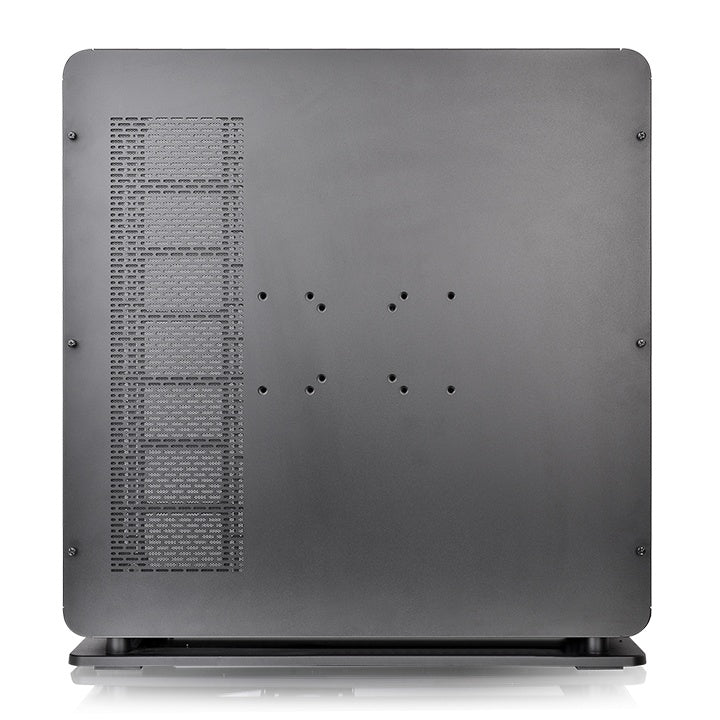

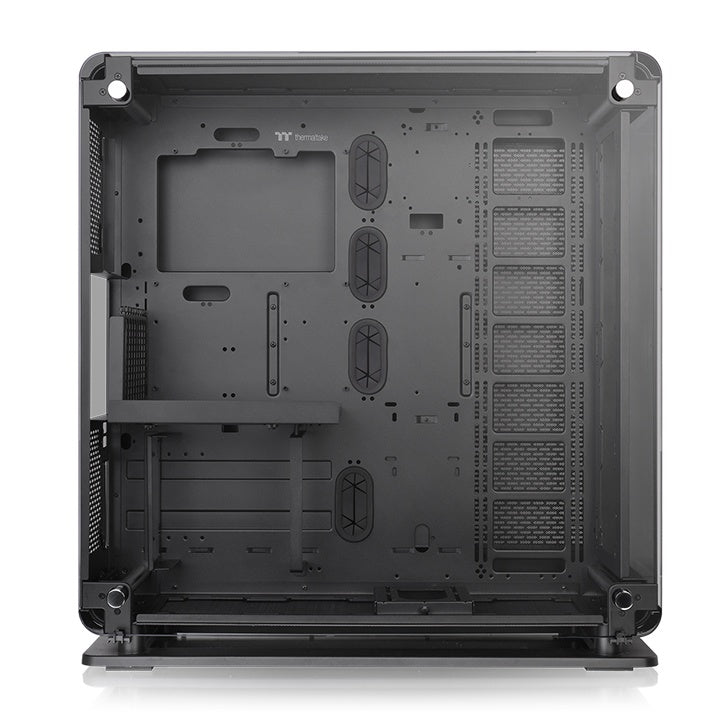

Thermaltake Core P8 Tempered Glass Full Tower Chassis
CA-1Q2-00M-1WN-00
Thank you for your submission!
We will get back to you soon.
Estimate shipping
$279.99
/
Sold out
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details
Features
Specifications
Â
SERIES
Core
MODEL
Core P8 TG
CASE TYPE
Full Tower
DIMENSION (H X W X D)
660 x 260 x 626 mm
(26 x 10.24 x 24.65 inch)
NET WEIGHT
22.6 kg / 49.8 lbs
SIDE PANEL
Tempered Glass x 3 (4mm thickness)
COLOR
Black
MATERIAL
SPCC
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
-Accessible
-Hidden>
1 x 2.5â??â?? (with Pump Bracket)
3 x 3.5â??â?? or 6 x 2.5â??â?? (With HDD Bracket)
EXPANSION SLOTS
8
MOTHERBOARDS
6.7â? x 6.7â? (Mini ITX), 9.6â? x 9.6â? (Micro ATX),
12â? x 9.6â? (ATX), 12â? x 13â?(E-ATX)
I/O PORT
1 x USB 3.1 (Gen 2) Type C, 2 x USB 3.0, x 2 USB 2.0, 1 x HD Audio
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Top: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Rear: 1 x 120mm or 2 x 120mm ,
Right: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Bottom: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
RADIATOR SUPPORT
Front: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Top: 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Right: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Bottom: 1 x 240mm or 1 x 120mm (With P5 DP-D5 ) ,
CLEARANCE
CPU cooler height limitation: 180mm
VGA length limitation: 280mm (With Reservoir)
320mm (Without Reservoir)
PSU length limitation: 200mm
