40mm

Thermaltake Pacific DIY CLD480 40mm Thick

CL-W283-CU00BL-A

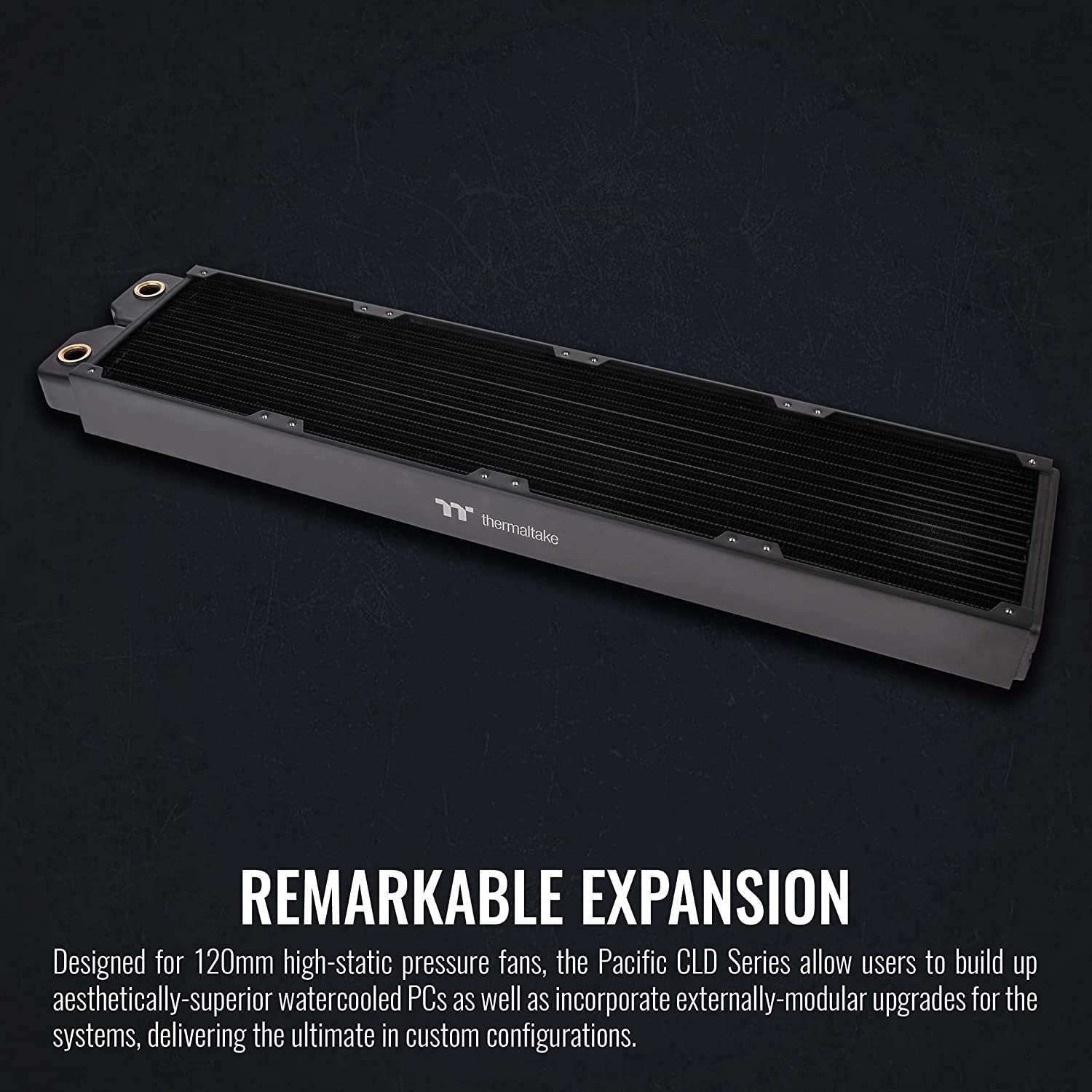

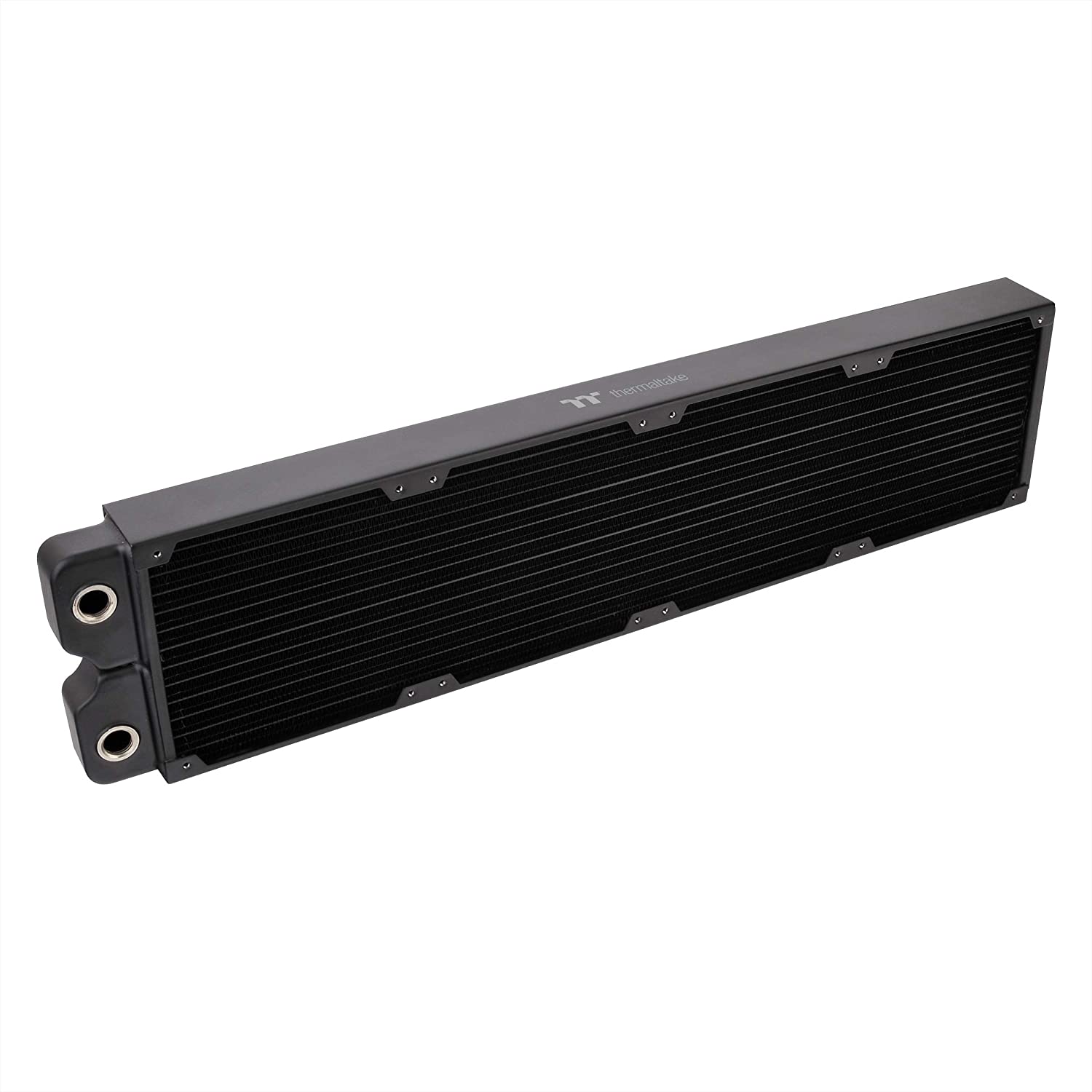

The Pacific CLD Series Radiator is a copper radiator built with an highly efficient double-fin design and a brass tank.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$149.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Pacific CLD Series Radiator is a copper radiator built with an highly efficient double-fin design and a brass tank. The radiator is compatible with 120mm high-static pressure fans with 40mm thickness for optimal heat dissipation, the CLD series is manufactured with a â??reflow soldering manufacturing processâ? which provides exceptional cooling performance.P/N: CL-W281-CU00BL-ADIMENSIONS: 285.4(L) x 119 (W) x 40 (H) mmWEIGHT: 800 gMATERIAL: CopperFPI (FIN PER INCH): 25FLAT TUBE: 12-setTHICKNESS: 40 mmPARTS: Stopper 3 (G 1/4 )SCREW THREADL: G ¼â? 5

Pacific

Features

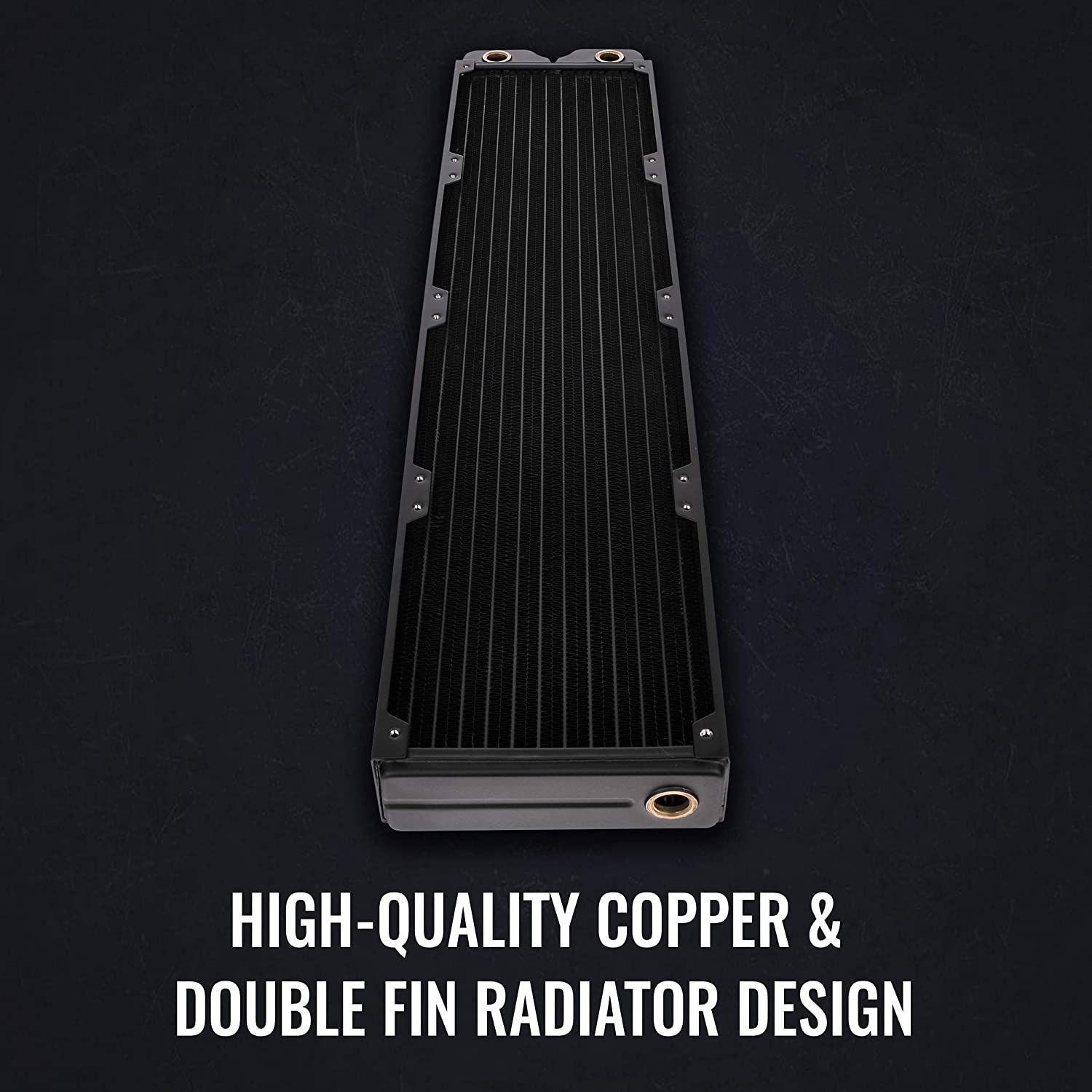

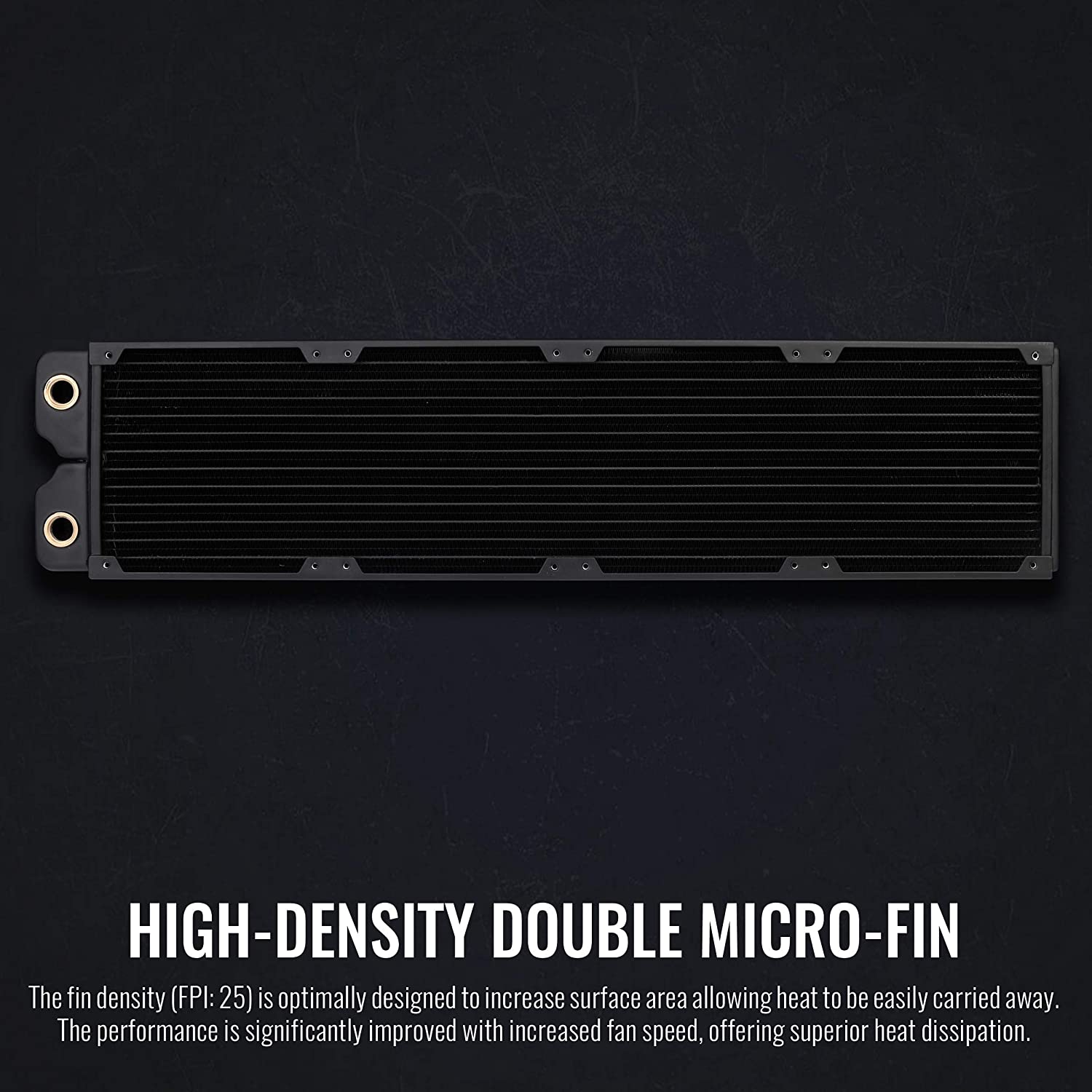

  • Double Copper Micro-fins - The fin density (FPI: 25) is optimally designed to increase surface area allowing heat to be easily carried away.

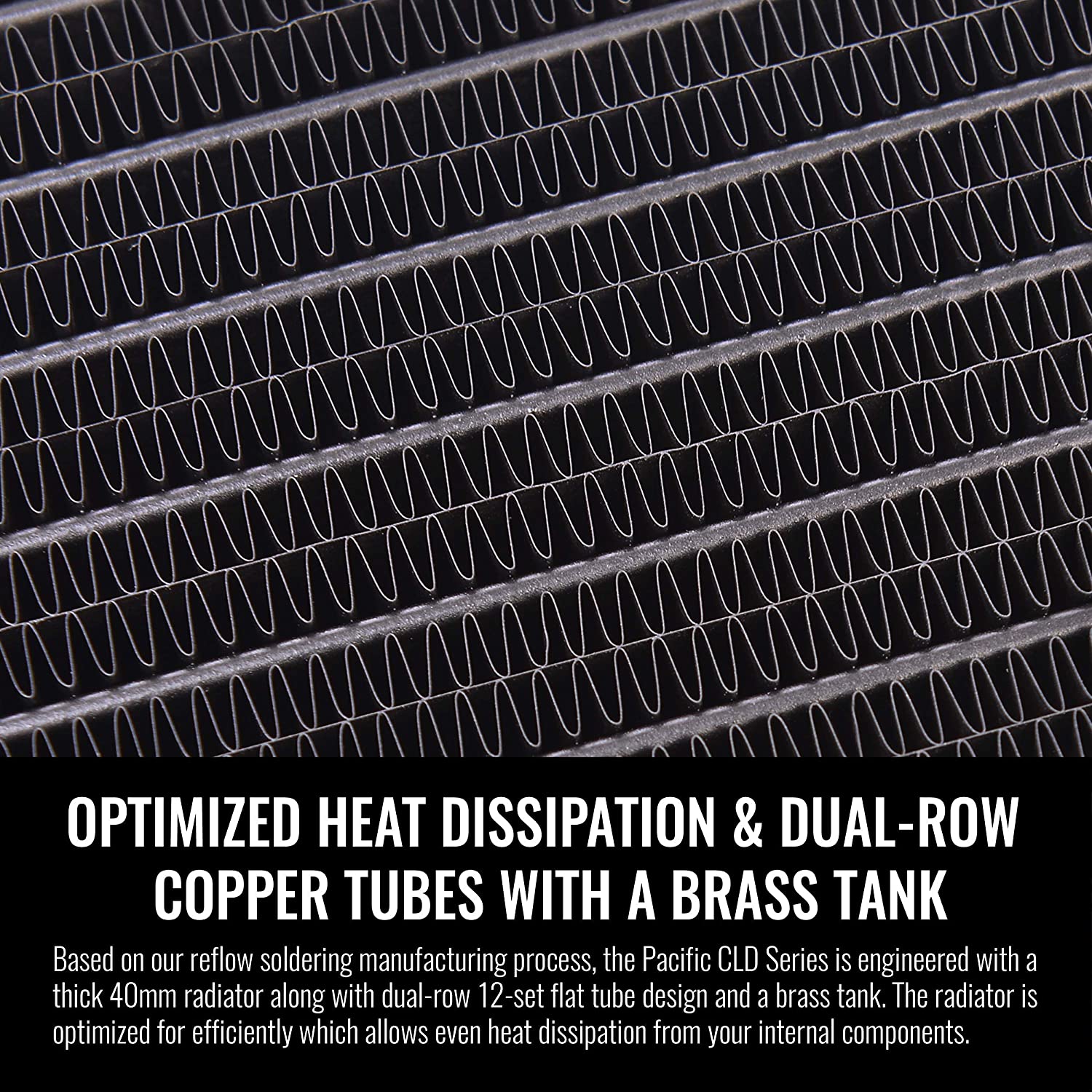

  • Fitment - Engineered at 40mm thickness with dual-row 12-set flat tubes and a brass tank.

  • Reflow Soldering - High-quality and high-temperature soldering at 482â??/250â?? ensures optimal thermal transfer with full strength on all connected area avoiding cracking and fail over time.

  • Durable Construction - Stainless steel side panels increases the strength of the radiator while reducing the weight

  • G¼â? Thread Ports - Five total ports with one dedicated for coolant drain solutions.

Specifications








































P/N CL-W283-CU00BL-A
DIMENSIONS 526.6(L) x 119 (W) x 40(H) mm
WEIGHT 1300 g
MATERIAL Copper
FPI (FIN PER INCH) 25
FLAT TUBE 12-set
THICKNESS 40 mm
PARTS Stopper *3 (G 1/4 )
SCREW THREAD G¼� * 5
