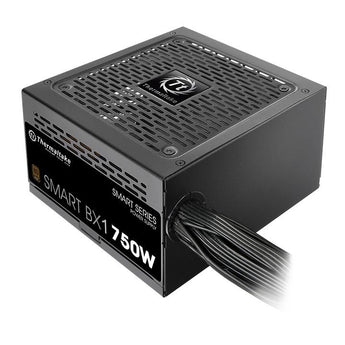

Thermaltake Smart BX1 750W Bronze Power Supply

Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40?, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

Ultra Quiet 120mm Hydraulic Bearing Fan

Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

Low Ripple Noise

All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.

Premium Japanese Main Capacitor

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

Multiple Connectors

Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages

80 PLUS Gold Certified and Intel C6/C7 States Ready

Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

P/N	PS-SPD-0750NNFABU-1
watts	750W
RGB Fan	No
Form Factor	ATX
Model	SPD-750AH2NKB
Type	ATX 12V v2.3 and EPS v2.92
Max. Output Capacity	750W
Peak Output Capacity	900W
Color	Black
Dimension ( W / H / D )	150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	> 16msec at 70% of full load
Input Current	12A max.
Input Frequency Range	50Hz - 60Hz
Input Voltage	100V â?? 240V~
Operating Temperature	5°C to + 40°C
Operating Humidity	20% to 85%, non-condensing
Storage Temperature	-40°C to + 55°C
Storage Humidity	10% to 95%, non-condensing
Cooling System	12cm Hydraulic bearing fan
Efficiency	Meet 80 PLUS®Bronze at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2pin	4
