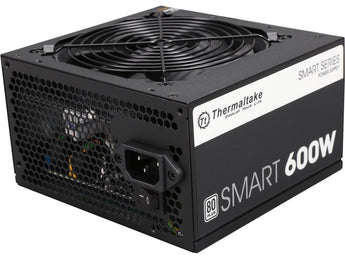

Thermaltake Smart SP-600AH2NKW ATX12V & EPS12V Power Supply

PS-SPD-0600NPCWUS-W

Incorporating various high-quality components, the Smart Series ? models are rated from 500W to 700W ? saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$59.99 $53.99 Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Incorporating various high-quality components, the Smart Series ? models are rated from 500W to 700W ? saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Features

120mm Ultra Quiet Fan


Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.




Multiple Connectors


Smart 600W connector?s specification as below:






















MODEL / CABLE Thermaltake
Main Power
Connector
(20+4Pin)
Thermaltake
ATX 12V
(4+4Pin)
Thermaltake
Peripheral
(4Pin)
Thermaltake
SATA
(5Pin)
Thermaltake
PCI-E
(6+2Pin)
Thermaltake
Floppy
(4Pin)
SMART 700W 1 1 3 6 2 1




80 PLUS Standard Certified and Haswell Ready


Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.




High-Quality Components


High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.




Single +12V Output


Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading.

Specifications































































































P/N



PS-SPD-0600NPCW**-W



Short P/N



SPD-0600P



Model



SP-600AH2NKW



Type



Intel ATX 12V 2.3



Max. Output Capacity



600W



Color



Black



Dimension (H x W x D)



86mm x 150mm x 140mm



PFC ï¼?Power Factor Correctionï¼?



Active PFC



Power Good Signal



100-500 msec



Hold Up Time



16msec (minimum) within 60% load



Input current



10A max



Input Frequency Range



50 Hz - 60 Hz



Input Voltage



100Vac - 240Vac



Operating Temperature



5â?? to +40â??



Operating Humidity



20% to 85%,non-condensing



Operating Temperature



-40 â?? to +55 â??



Storage Humidity



10% to 95%, non-condensing



Cooling System



120mm Fan: 1800 R.P.M. ± 10%



Efficiency



82-86% efficiency @ 20-100% load



MTBF



100,000 hrs minimum



Safety Approval



CE/CB/TUV/ UL/ FCC



PCI-E Connector



PCI-E 6+2pin x 2




* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
