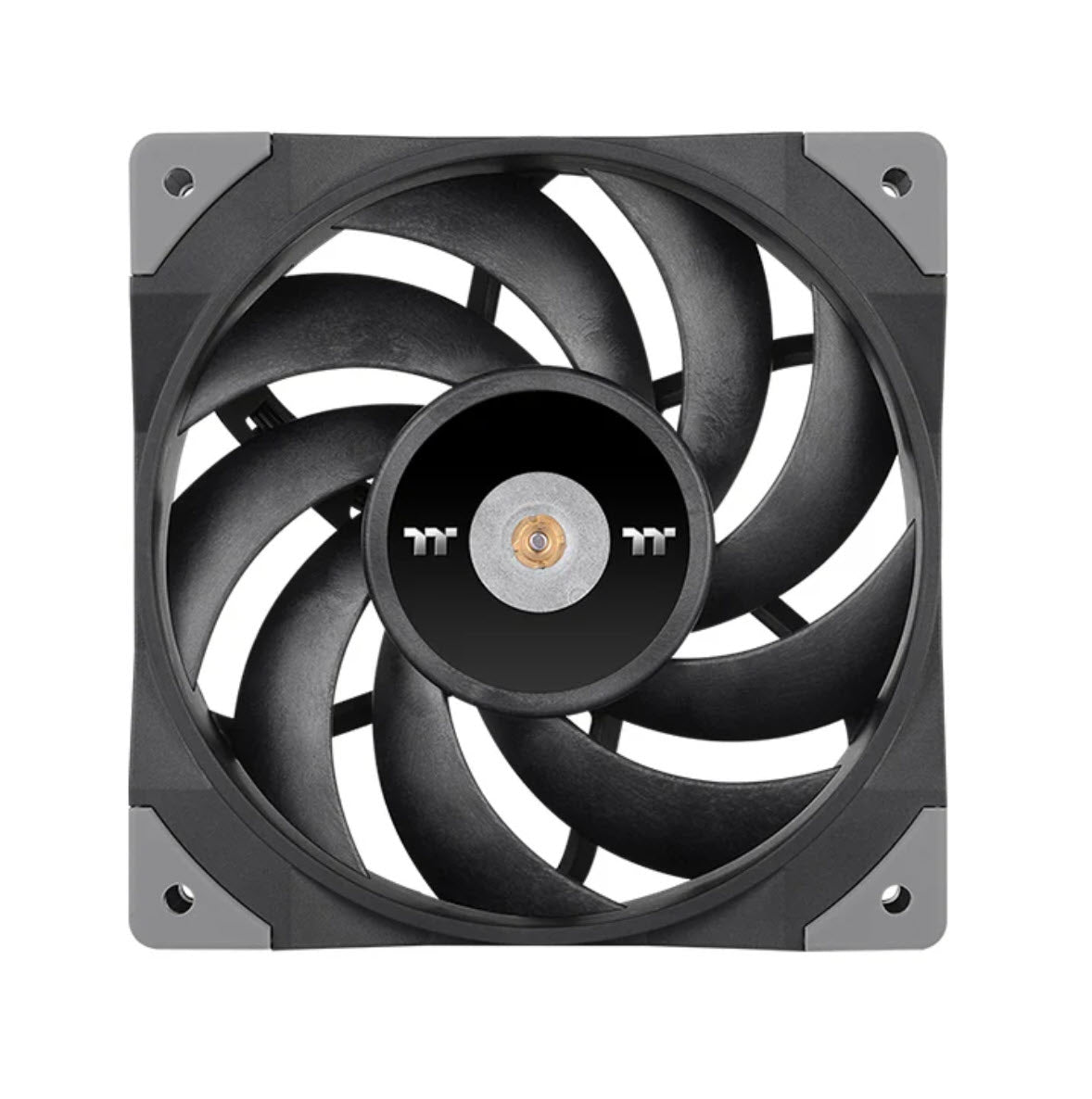

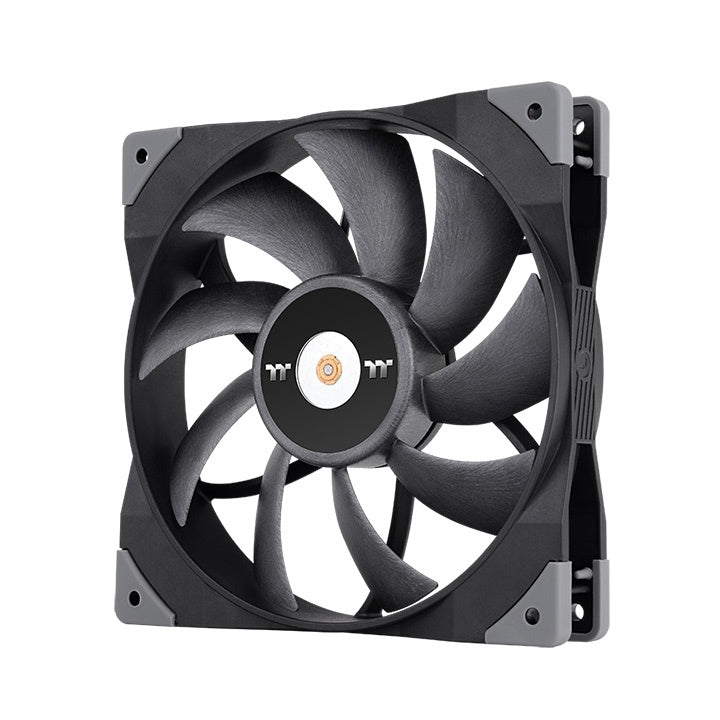

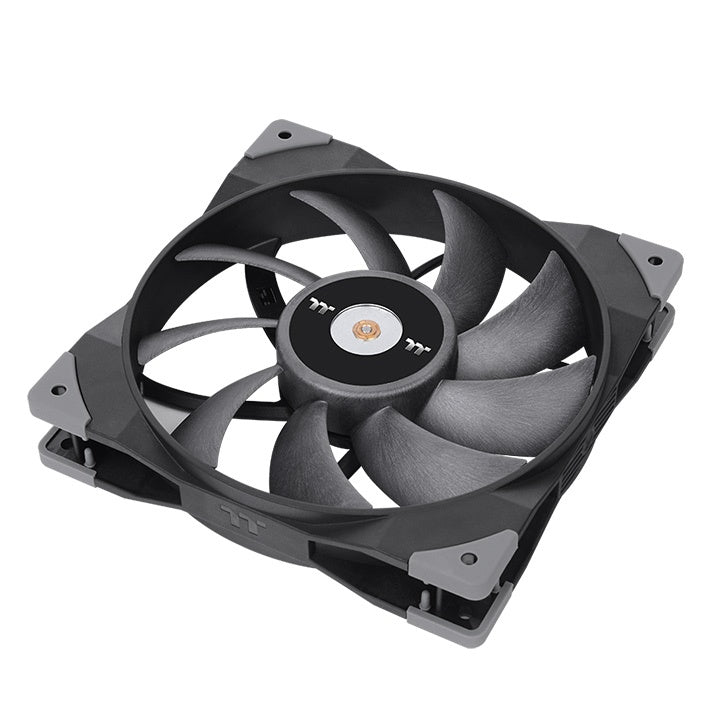

Thermaltake TOUGHFAN 12 High Static Pressure Radiator Fan (Single Fan Pack)

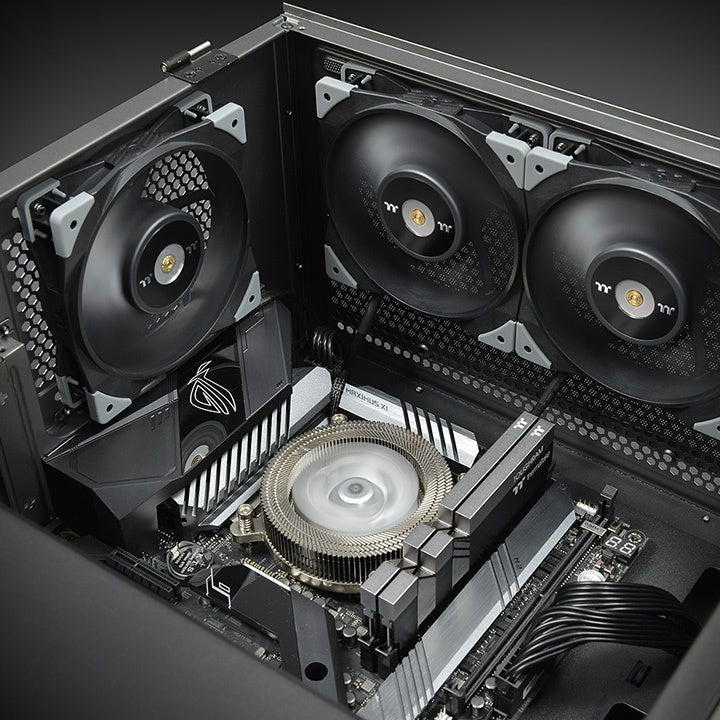

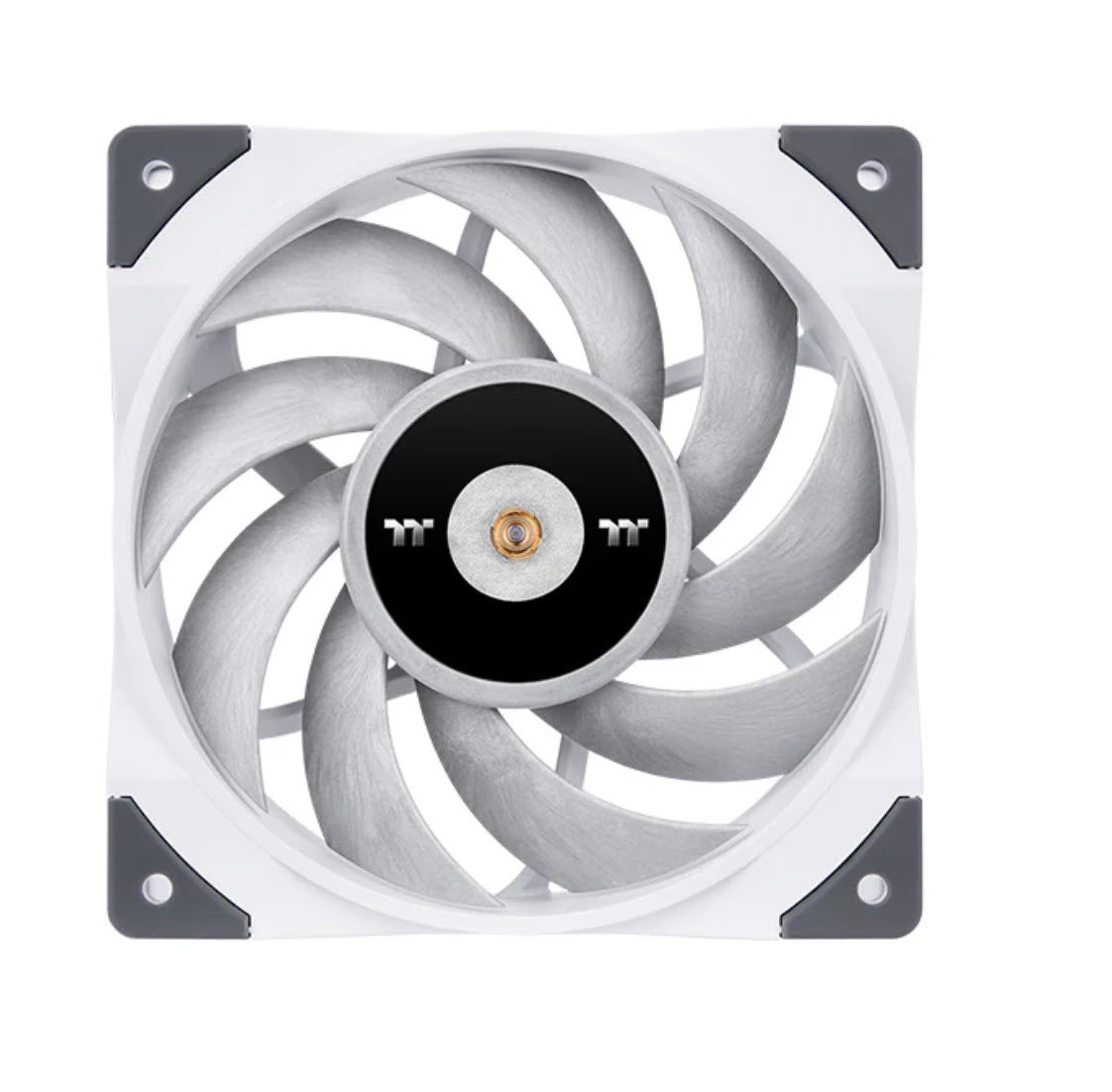

Thermaltake TOUGHFAN 12 PWM-controlled high static pressure 120mm  fan features an optimized structure to maximize high-end cooling needs and fulfill users’ wishes to add black or white to their chassis.

Powerful and Noiseless

TOUGHFAN 12  high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure, and maintaining a low audio noise level of 22.3 dB-A.

Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.

Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.

The 2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

Specificvations:



P/N	CL-F117-PL12WT-A
Dimension	120 x 120 x 25 mm
Weight	212.5 g
Started Voltage	9.0 V
Rated Voltage	12 V
Rated Current	0.12 A
Power Input	1.44 W
Fan Speed	PWM 500~2000 R.P.M With L.N.C PWM 500~1500 R.P.M
Max Air Pressure	2.41 mm-H2O With L.N.C 1.2522 mm-H2O
Max Air Flow	58.35 CFM With L.N.C 45.72 CFM
Noise	22.3 dB-A With L.N.C 19 dB-A
Bearing Type	Hydraulic Bearing Gen.2
Life Expectation	40,000 hrs,25℃
Connector	4 PIN PWM
