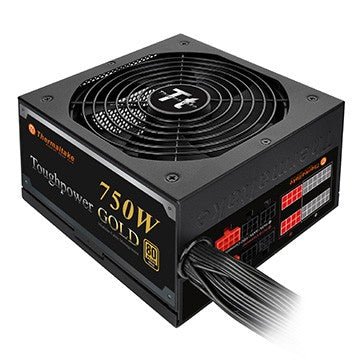

Thermaltake Toughpower 750W 80 PLUS Gold Power Supply Thermaltake Toughpower 750W 80 PLUS Gold Power Supply
Thermaltake Toughpower 750W 80 PLUS Gold Power Supply

Thermaltake Toughpower 750W 80 PLUS Gold Power Supply

Thermaltake

PS-TPD-0750MPCGUS-1

The Thermaltake Toughpower series is a premium 80 PLUS GOLD certified power supply that uses the highest quality components for stable performance, exvellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$98.99 USD $73.99 USD Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details
height=580
Toughpower 750W GOLD (Modular)
The Thermaltake Toughpower series is a premium 80 PLUS GOLD certified power supply that uses the highest quality components for stable performance, exvellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 750W GOLD (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment.

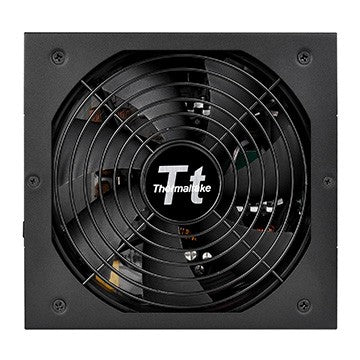

Silent Cooling Minimizes Noise Levels
Ultra-quiet 14cm fan comes with a noise level of around 18dB at typical load to provide silent cooling for your PC.
 height=500





height=500
80 PLUS Gold Certified and Haswell Ready
Deliver up to 87%-92% efficiency under real world load conditions to promise lowest power losses. Besides, Toughpower Grand is already prepared for the new Intel processors Haswell to achieve maximum energy savings.

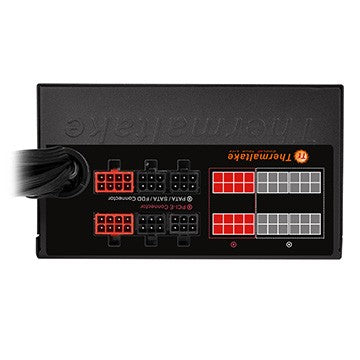

Flat Modular Cables
All new low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.
height=150
height=600
height=500
High Quality Japanese Capacitor
High quality Japanese capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
height=150
Massive and Dedicated +12V Output
Toughpower series is equipped with a powerful single +12V rail, please see the output specification below:
height=87
AC INPUT

Input Voltage: 100V-240V
Input Current: 10A
Frequency: 47Hz-63Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 20A

20A

62A

0.8A

 3.0A
Max Output Power

100W

 744W

9.6W

15W
Continuous Power

750W
height=540
Specifications
































































































P/N PS-TPD-0750MPCG
Short P/N TPD-0750M
Model TP-750AH3CCG-B
Type Intel ATX 12V V2.3 & EPS 12V standards
Max. Output Capacity 750W
Peak Output Capacity 900W
Color Black
Dimension (H x W x D) 86mm x 150mm x 160mm
PFC ï¼?Power Factor Correctionï¼? Active PFC
Power Good Signal 100-500 msec
Hold Up Time 12msec (minimum) @ 80% of full load at 115V / 230V input.
Input current 10A
Input Frequency Range 47 Hz - 63 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0â?? to +40â??
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -40 â?? to +70 â??
Storage Humidity 5% to 95%, non-condensing
Cooling System 140mm double ball-bearing fan, 1500±10%R.P.M.
Efficiency 87-92% efficiency @ 20-100% load
MTBF 120,000 hrs minimum
Safety Approval UL/ TUV/ CE/ FCC/ BSMI/ EAC certification
PCI-E Connector PCI-E 6+2pin x 4

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
