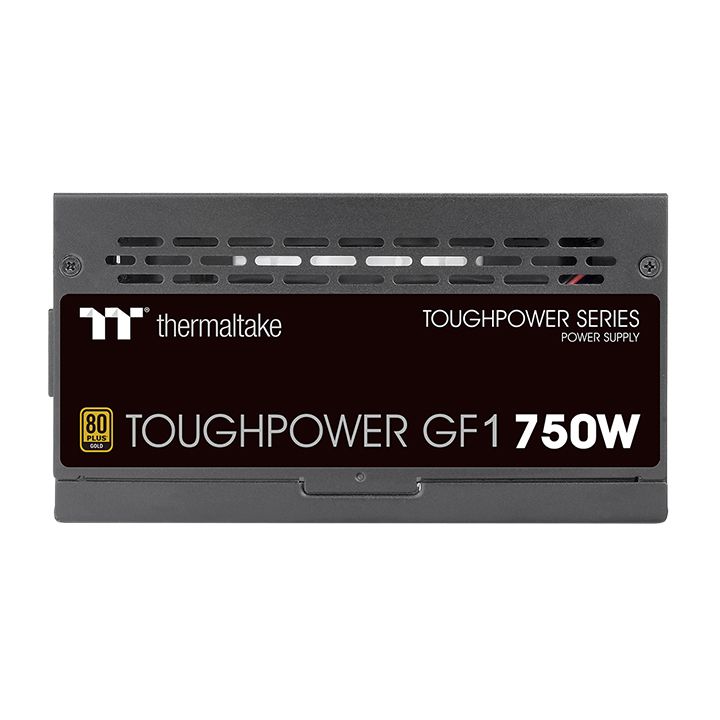

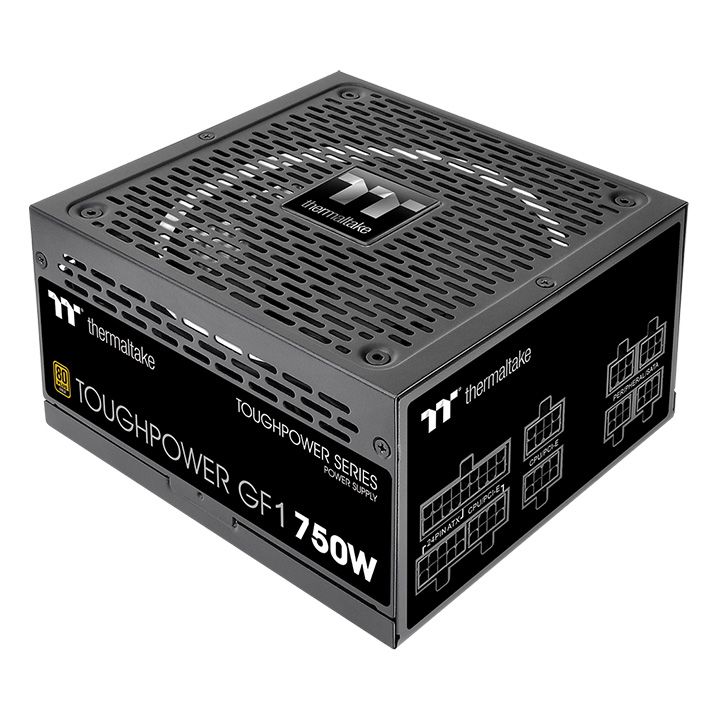

Thermaltake Toughpower GF1 750W - TT Premium Edition

The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50 °C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

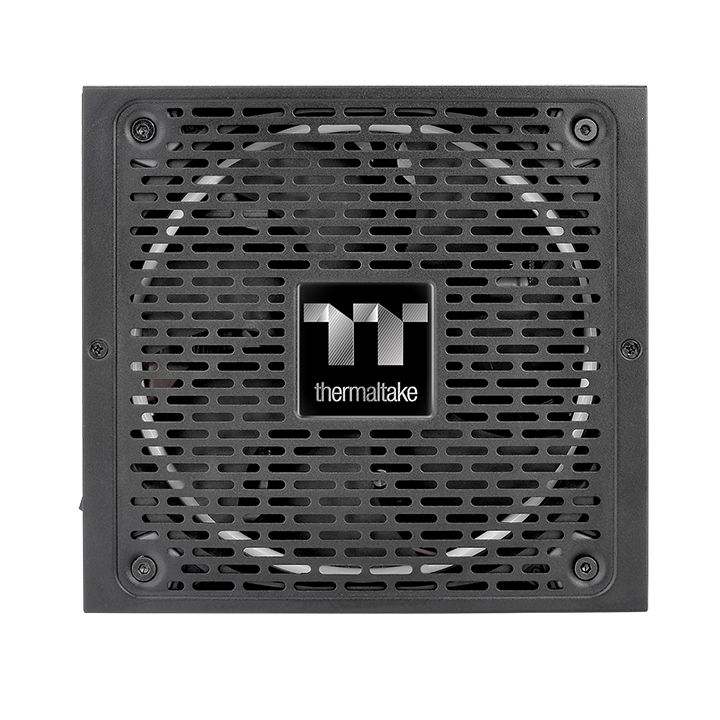

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

?30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ?±2%

The voltage regulation, more strict than Intel's standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

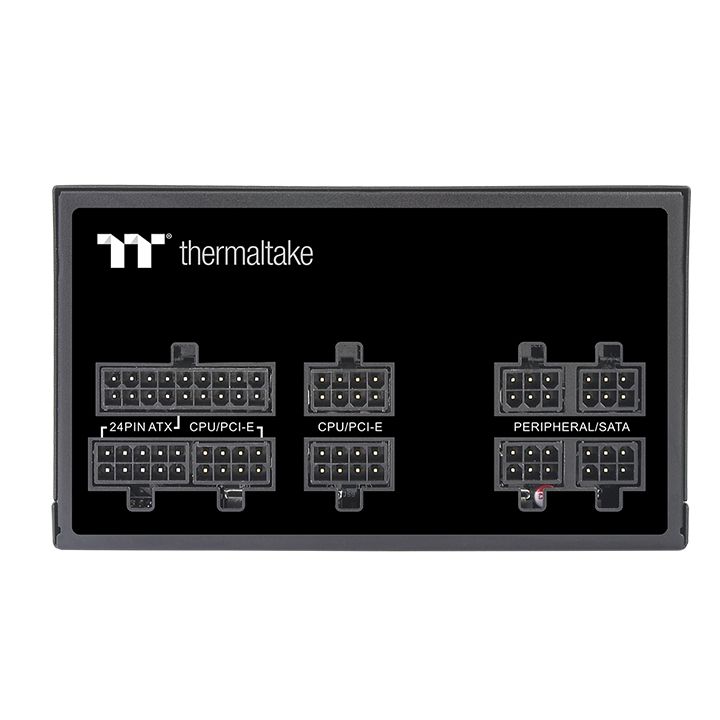

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

P/N	PS-TPD-0750FNFAGU-1
watts	750W
Model	TTP-750AH3FCG
Max. Output Capacity	750W
Peak Output Capacity	900W
Color	Black
Dimension ( W / H / D )	150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	> 16msec at 100% of full load
Input Current	10A
Input Frequency Range	50Hz - 60Hz
Input Voltage	100V â?? 240V~
Operating Temperature	0°C to + 50°C
Operating Humidity	20% to 90%,non-condensing
Storage Temperature	-20°C to + 70°C
Storage Humidity	5% to 95%, non-condensing
Cooling System	14cm hydraulic bearing fan
Efficiency	Meet 80 PLUS®Gold at 115Vac input.
MTBF	120,000 hrs minimum
Safety Approval	CE/cTUVus/TÃ?V SÃ?D/FCC/BSMI/EAC
PCI-E 6+2pin	4
Protection	OCP, OVP, UVP, OPP, SCP, OTP
