Thermaltake Toughpower Grand TPG-1200M 1200W ATX 12V 80 PLUS Gold Power Supply Thermaltake Toughpower Grand TPG-1200M 1200W ATX 12V 80 PLUS Gold Power Supply
Thermaltake Toughpower Grand TPG-1200M 1200W ATX 12V 80 PLUS Gold Power Supply

Thermaltake Toughpower Grand TPG-1200M 1200W ATX 12V 80 PLUS Gold Power Supply

Thermaltake

PS-TPG-1200FPCGUS

Thermaltake new high wattage (1050W/1200W) â??Toughpowerâ? line of the high-end PC power supply unit, the Toughpower Grand Series is launched with fully modular design. Its grandiose look with a classy black finish makes a clear statement through sheer appearance.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$249.95 $224.96 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details
height=580

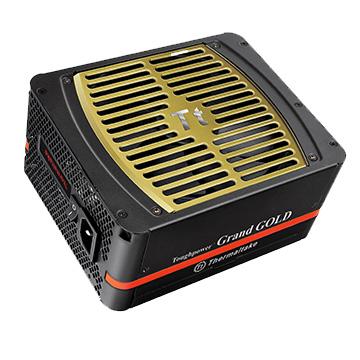

Thermaltake Toughpower Grand 1200W
Thermaltake new high wattage (1050W/1200W) ?Toughpower? line of the high-end PC power supply unit, the Toughpower Grand Series is launched with fully modular design. Its grandiose look with a classy black finish makes a clear statement through sheer appearance. Being 80 PLUS Gold certified, users not only get a guaranteed eco-friendly PSU, but also an electricity bill with reduced cost. The Toughpower Grand 1050W/1200W models are ideally suited for high-end gaming and enthusiast PCs powering multi-core processors in combination with multi-GPU setup.
Pure Aesthetic Outer Chassis
Unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of Thermaltake's innovative hallmarks.
 height=500
height=500
80 PLUS Gold Certified and Haswell Ready
Deliver up to 87%-90% efficiency under real world load conditions to promise lowest power losses. Besides, Toughpower Grand is already prepared for the new Intel processors Haswell to achieve maximum energy savings.

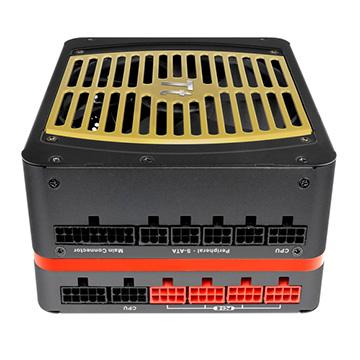

Fully modular cable design
The fully modular cabling design allows use of cables users need resulting in improved optimal airflow and reduced system cutter.
 height=500
height=500

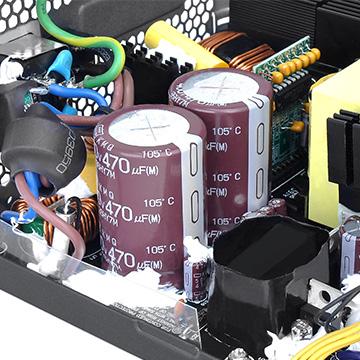

100% High Quality Japanese Capacitors
Japanese capacitors provide uncompromised performance and reliability.
height=150

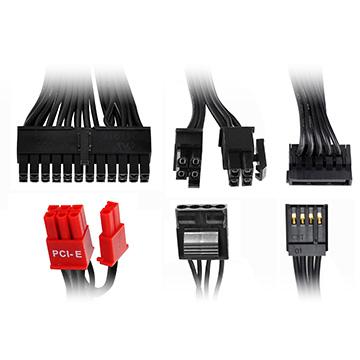

Flat Modular Cables
Toughpower Grand series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.
 height=600
height=550
Massive and Dedicated +12V Output
Toughpower Grand series is equipped with a powerful single +12V rail, please see the output specification below:
height=87
AC INPUT

Input Voltage: 100V-240V
Input Current: 15A
Frequency: 50Hz-60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 25A

25A

100A

0.3A

 4.0A
Max Output Power

130W

 1200W

3.6W

20W
Continuous Power

1200
Specifications




























































































P/N TPG-1200F
Model TPG-1200AH3FSG
Type Intel ATX 12V V2.3 & EPS 12V standards
Max. Output Capacity 1200W
Peak Output Capacity 1440W
Color Black
Dimension (H x W x D) 86mm x 150mm x 180mm
PFC ï¼?Power Factor Correctionï¼? Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) @ 75% of full load at 115 / 230Vac input.
Input current 15A
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0â?? to +50â??
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -40 â?? to +70 â??
Storage Humidity 20% to 95%, non-condensing
Cooling System 140mm Fan
Efficiency 87-90% efficiency @ 20-100% load
MTBF 120,000 hrs minimum
Safety Approval UL/ TUV/ CE/ FCC/ GOST certification
PCI-E Connector PCI-E 6+2pin x 8

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
