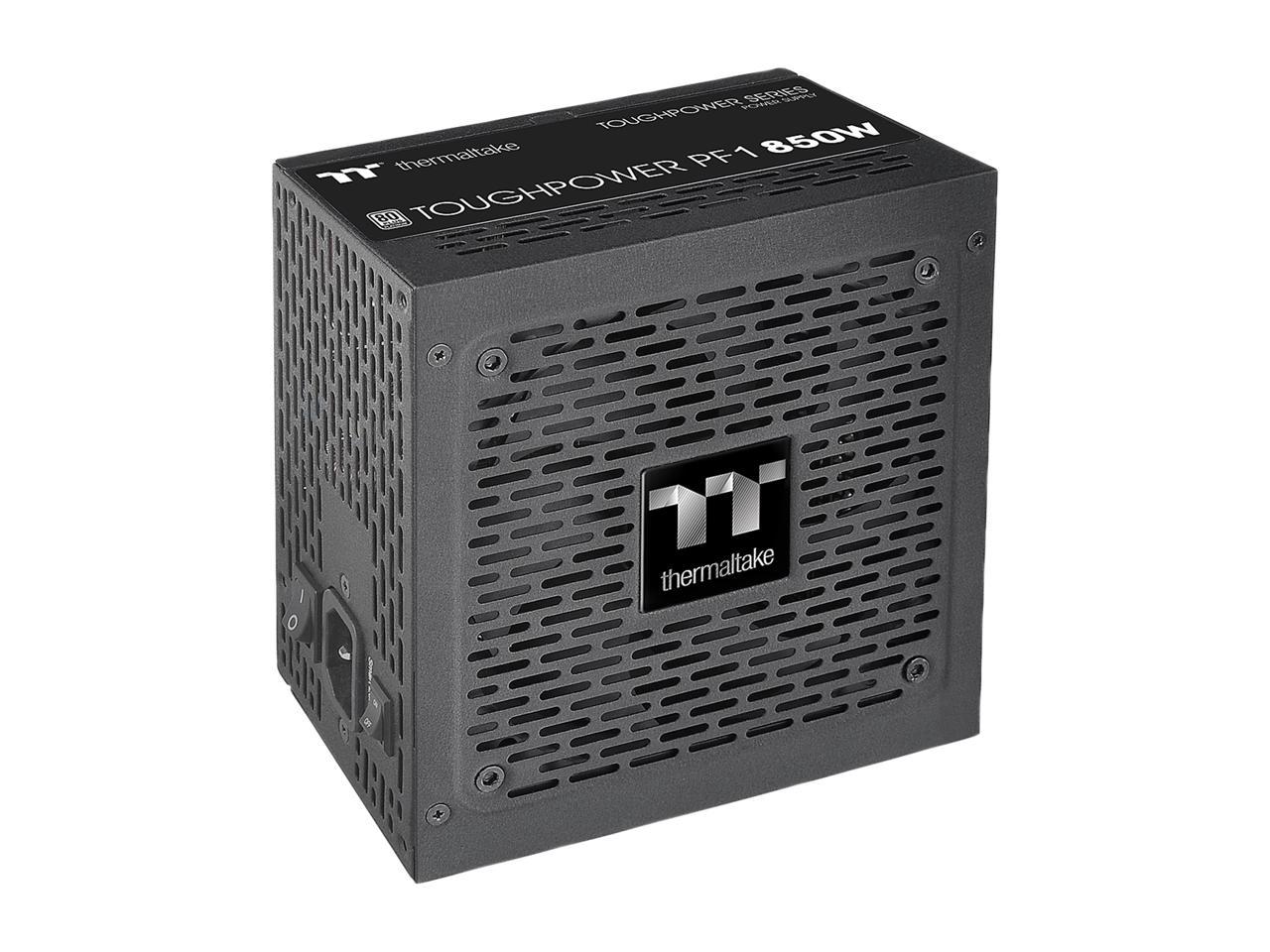

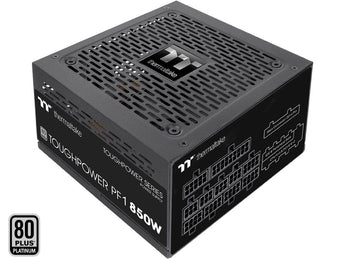

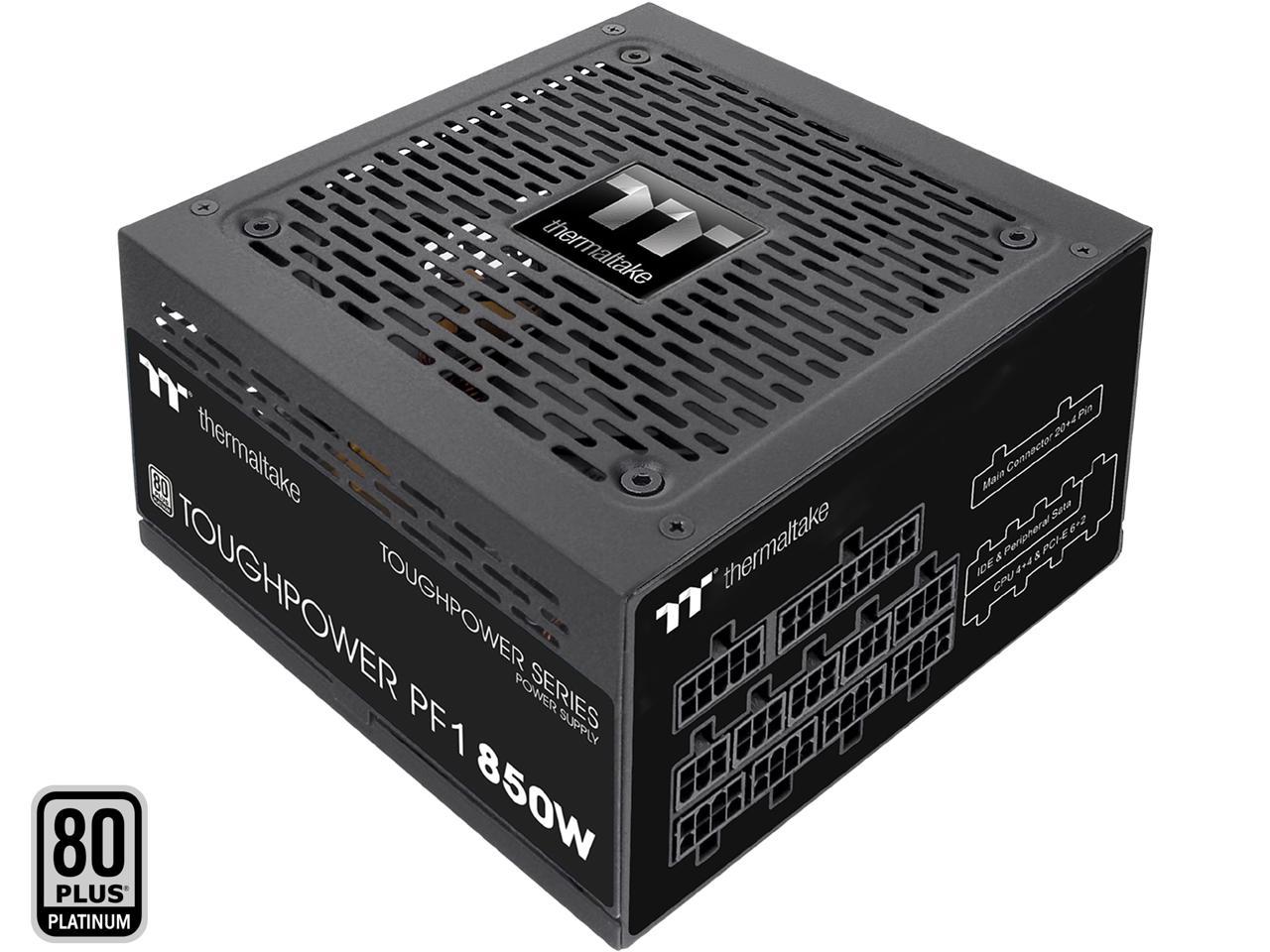

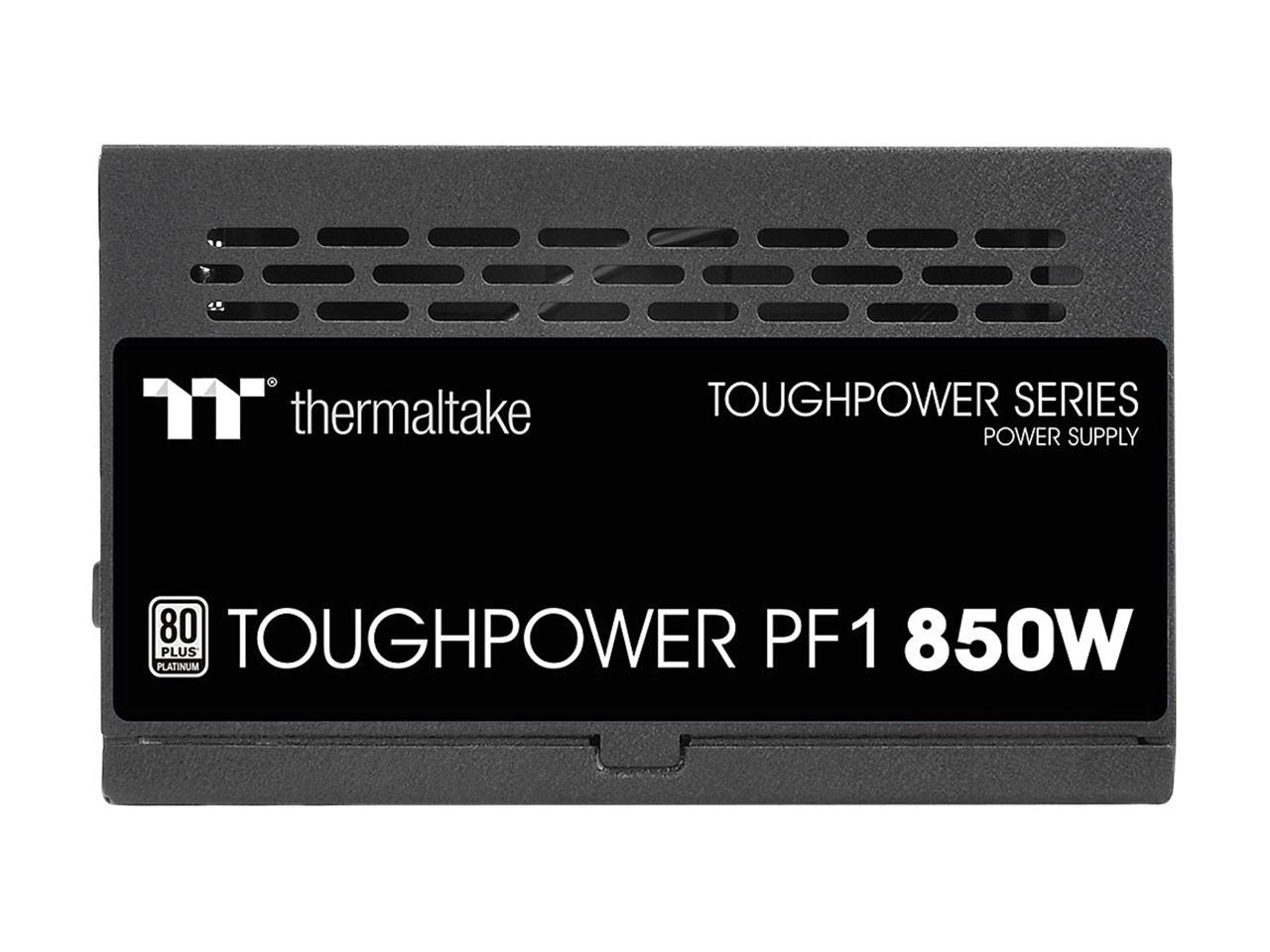

Thermaltake Toughpower PF1 850W 80+ Platinum Single Side SMD Compact Design

Thermaltake

PS-TPD-0850FNFAPU-1

The Toughpower PF1 Platinum Series comes in 850W/750W/650W and delivers 80 PLUS Platinum efficiency. Besides the fundamental features listed below, The PF1 Platinum Series has two other critical characteristics â?? compact size and our new board technology. With the small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 prides its ample space for cable management. The new board technology offers single sided SMD which all IC chips are set to only one side, allowing the heat to only be accumulated on one side so the entire board can be covered and cooled down by the 120mm ultra quiet Hydraulic Bearing Fan.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$179.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

width=1198
Features


  • [80+ PLATINUM and Intel C6/C7 STATES READY] - Deliver up to 90% efficiency, PF1 Series optimized to work with all generations of Intel's processors to achieve maximum energy saving

  • [ULTRA QUIET 120mm HYDRAULIC BEARING FAN] - Self-lubricated hydraulic Bearing PWM fan superior cooling performance and near silent operation

  • [SMART ZERO FAN] - Auto-regulated fan speed based on power consumption for a quiet and efficient operation. Fan works only when PSU work load goes over 30%. A switch At the back of the PSU can be turned off to have the fan spun constantly

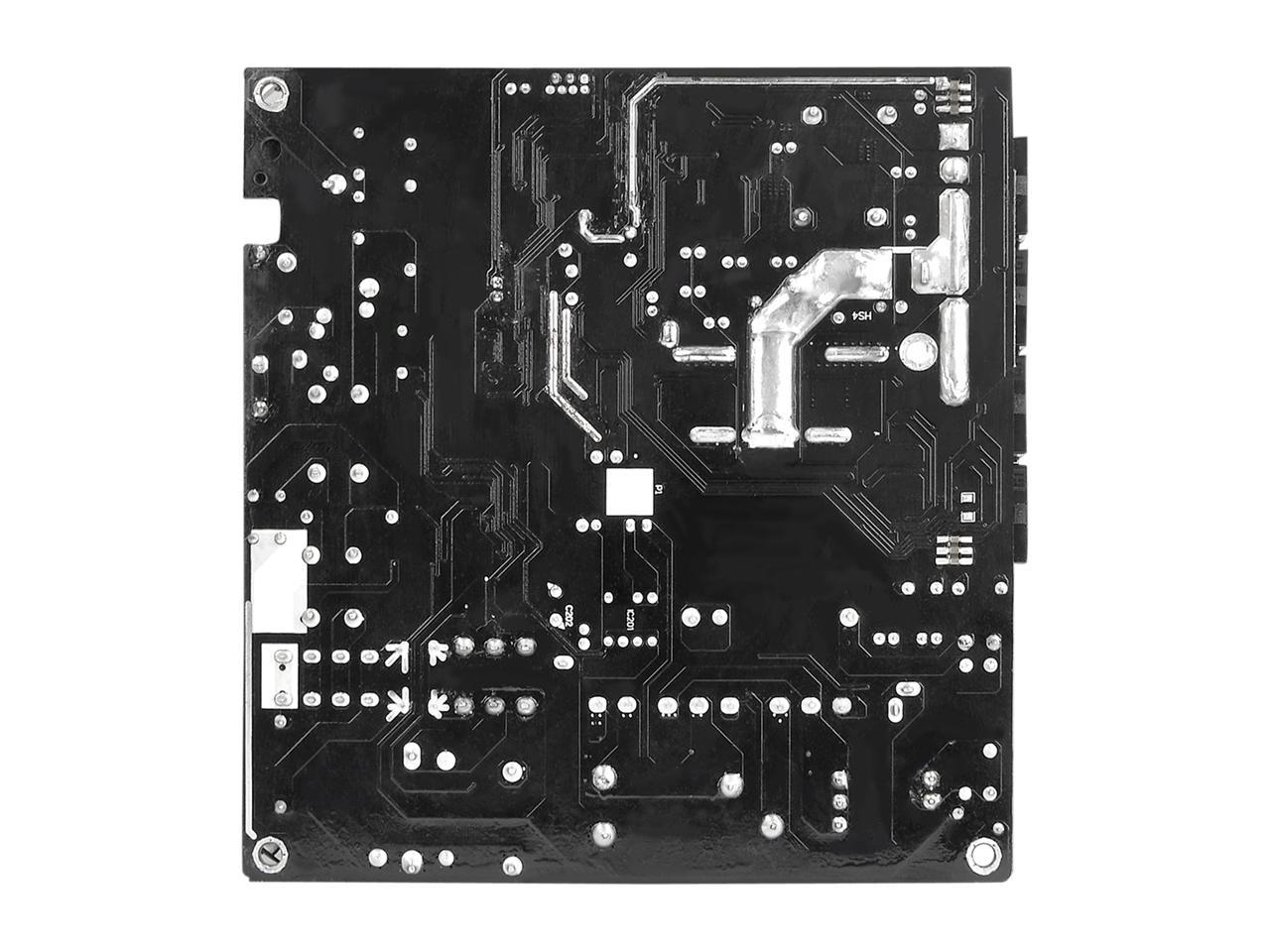

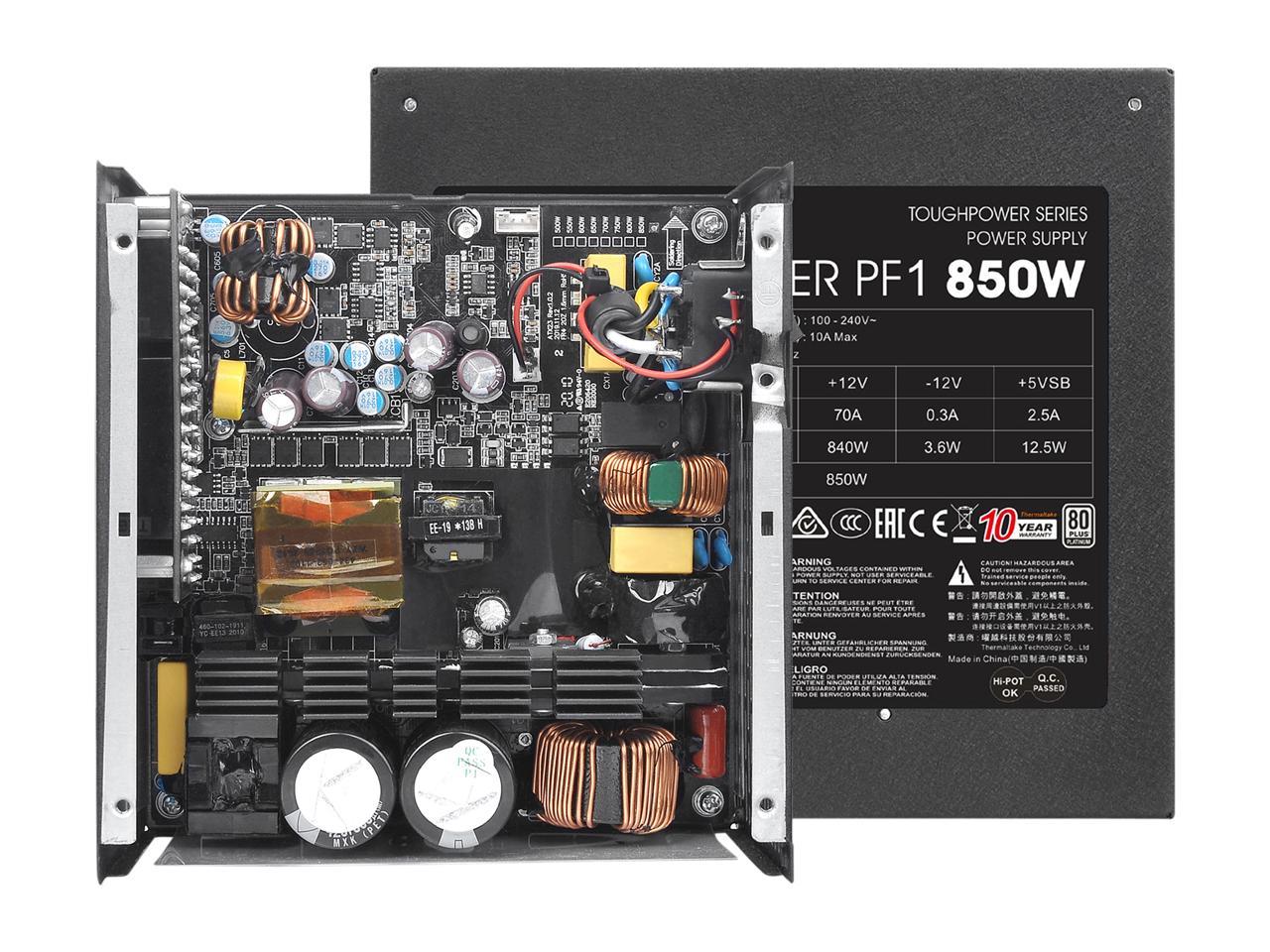

  • [SINGLE SIDE SMD] - The new design of the PCB allows all SMDs to sit on the top side of the PSUs PCB preventing heat accumulation at bottom and allows cold air pass through the fan, keeping temperature low

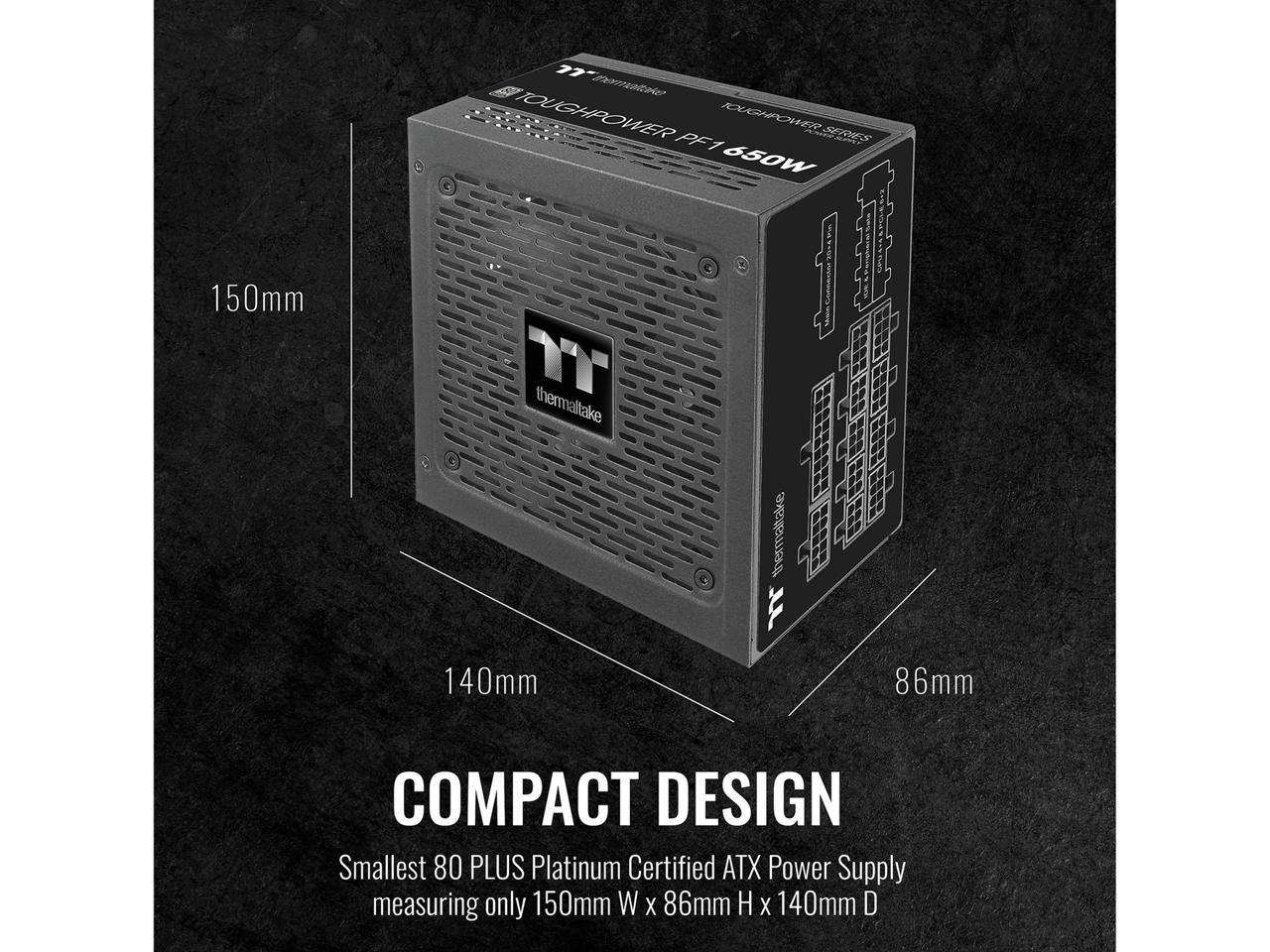

  • [COMPACT DESIGN] - Offering better chassis compatibility and room for cable management

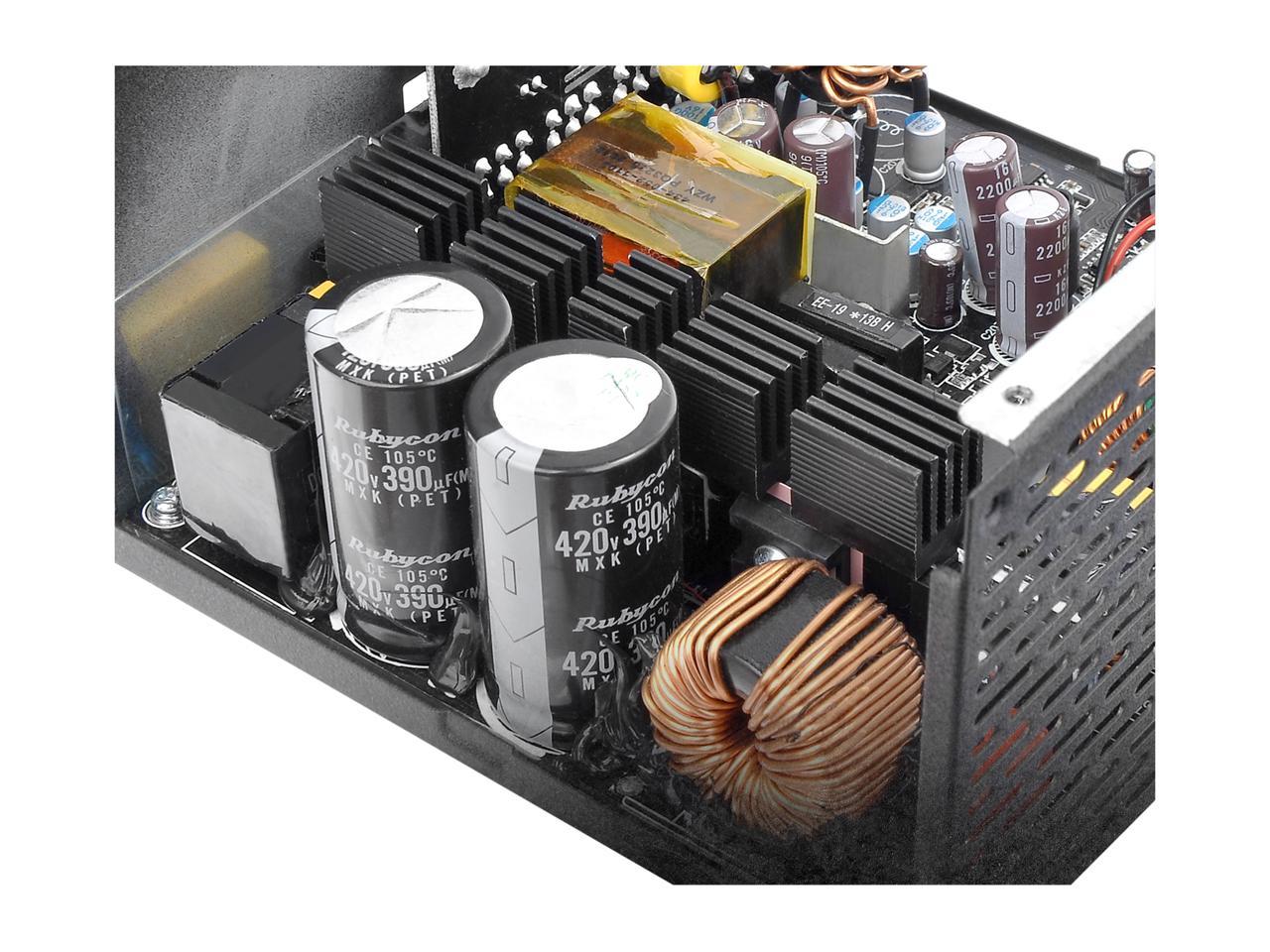

  • [JAPANESE CAPACITORS] - 100% High quality 105°C (221°F) Japanese capacitors offer the highest stability, durability, and reliability

  • [< 30 mV LOW RIPPLE NOISE] - Low ripple ensures excellent performance and keeps performance-critical components, such as high-end graphic card, operating reliably longer
Specifications
















Model
Brand Thermaltake
Series Toughpower PF1 850W
Model PS-TPD-0850FNFAPU-1
























































































Details
Type ATX12V / EPS12V
Maximum Power  850W
Fans  120mm Hydraulic Bearing Fan
PFC  Active
Main Connector  24Pin
+12V Rails  Single
PCI-Express Connector  6 x 6+2-Pin
SATA Power Connector  12

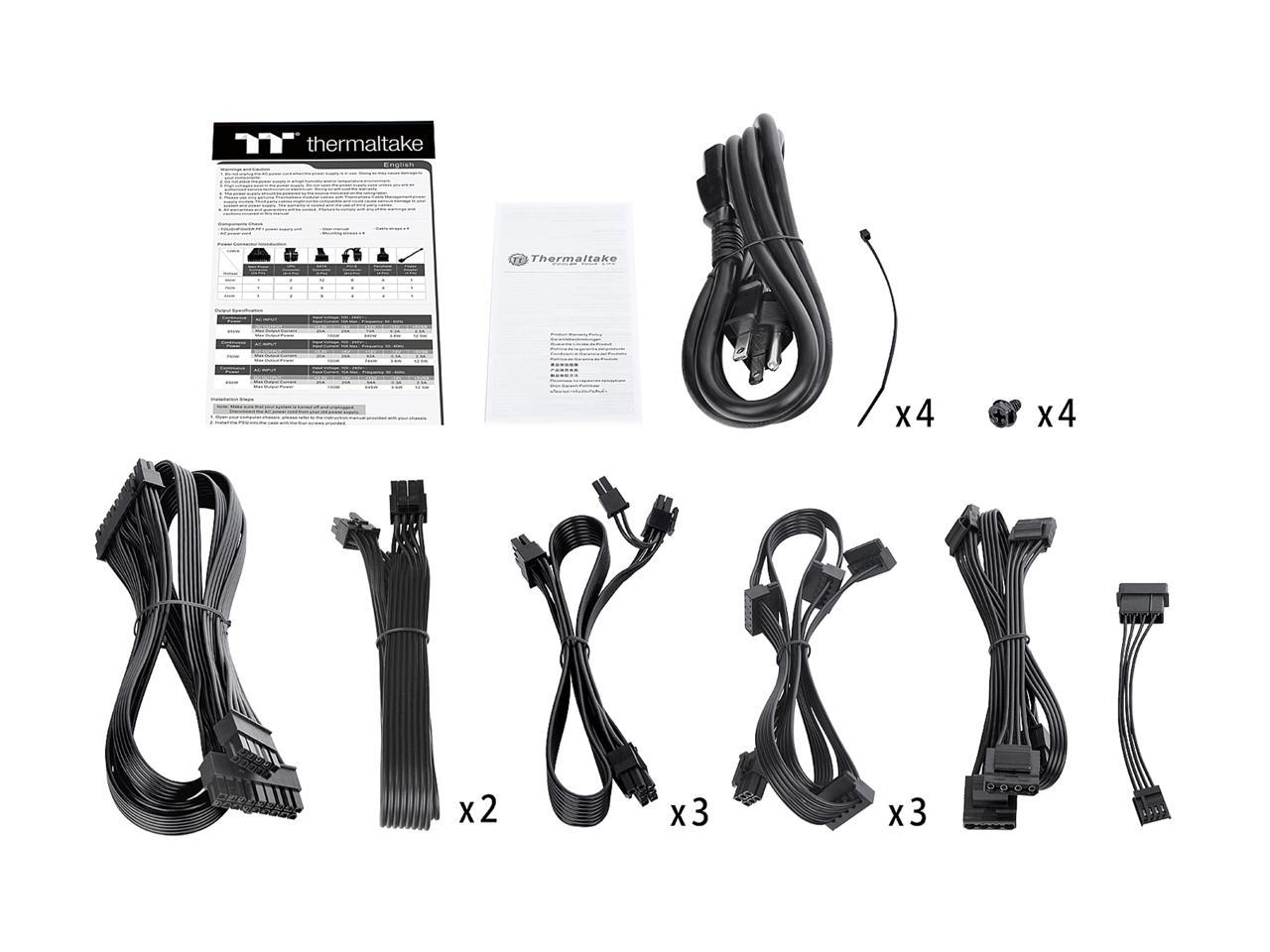

Modular  Full Modular
Power Good Signal 100-500ms
Hold-up Time > 16msec at 100% of full load
Energy-Efficient 80 PLUS PLATINUM Certified
Protection OCP, OVP, UVP, OPP, SCP, OTP
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 10A
Output +3.3V@20A, +5V@20A, +12V@70A, -12V@0.3A, +5VSB@2.5A
MTBF  >120,000 Hours
Approvals CE / UL / TÃ?V / FCC / BSMI / CCC / EAC certifications
Dimensions 3.39 x 5.91 x 5.51
Max PSU Length 140 mm
