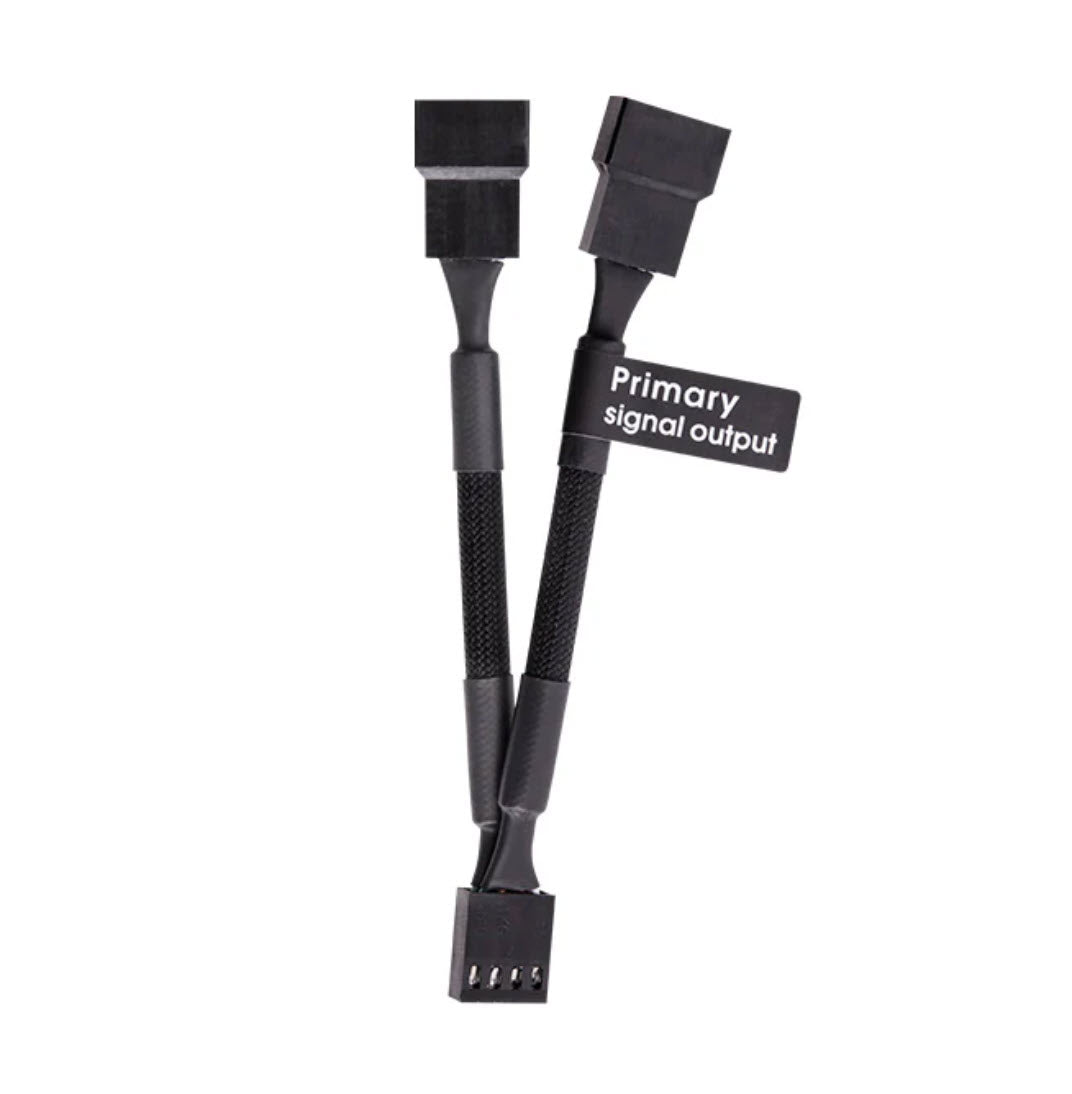

Thermaltake TTMOD PWM Fan 4 Pin Y-Cable - 3 Pack

AC-060-CO1OTN-F1

TTMOD PWM Fan 4 Pin Y-Cable can connect multiple fans, enhancing the freedom of additional fan options on a limited support motherboard. This Y-cable is compatible with both 3-pin and 4-pin PWM fans, but PWM control is only supported with 4-pin fans.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
10 in stock, ready to ship
$8.99 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

TTMOD PWM Fan 4 Pin Y-Cable can connect multiple fans, enhancing the freedom of additional fan options on a limited support motherboard. This Y-cable is compatible with both 3-pin and 4-pin PWM fans, but PWM control is only supported with 4-pin fans.

Fan Connection

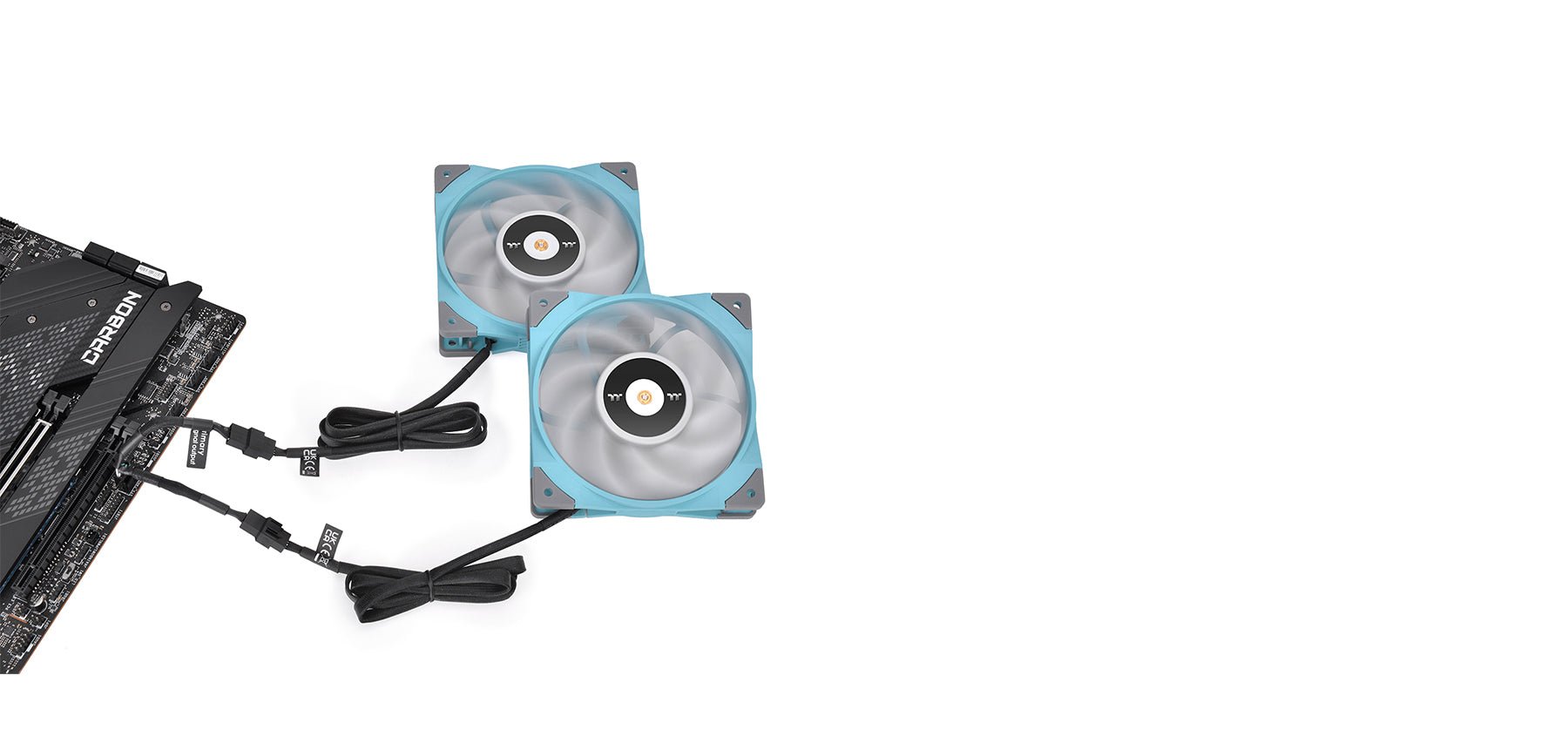

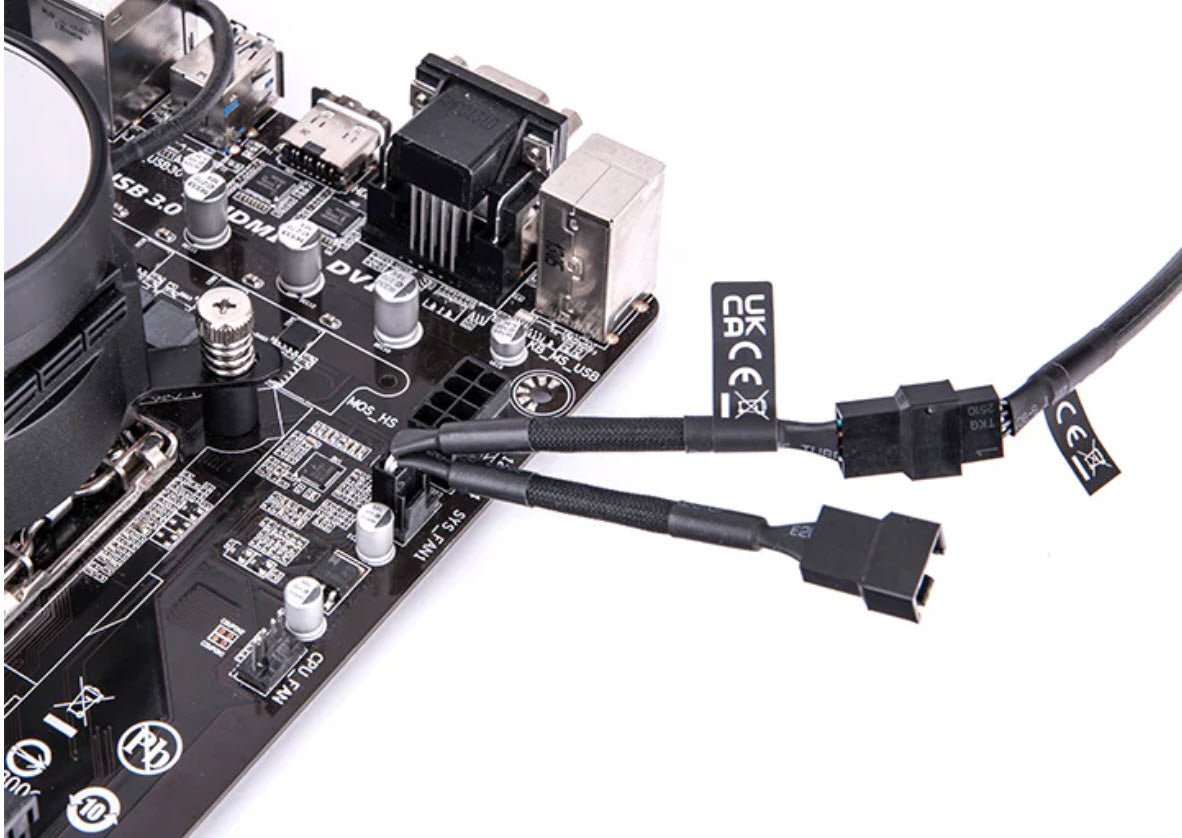

TTMOD PWM Fan 4 Pin Y-Cable can connect multiple fans to the motherboard.

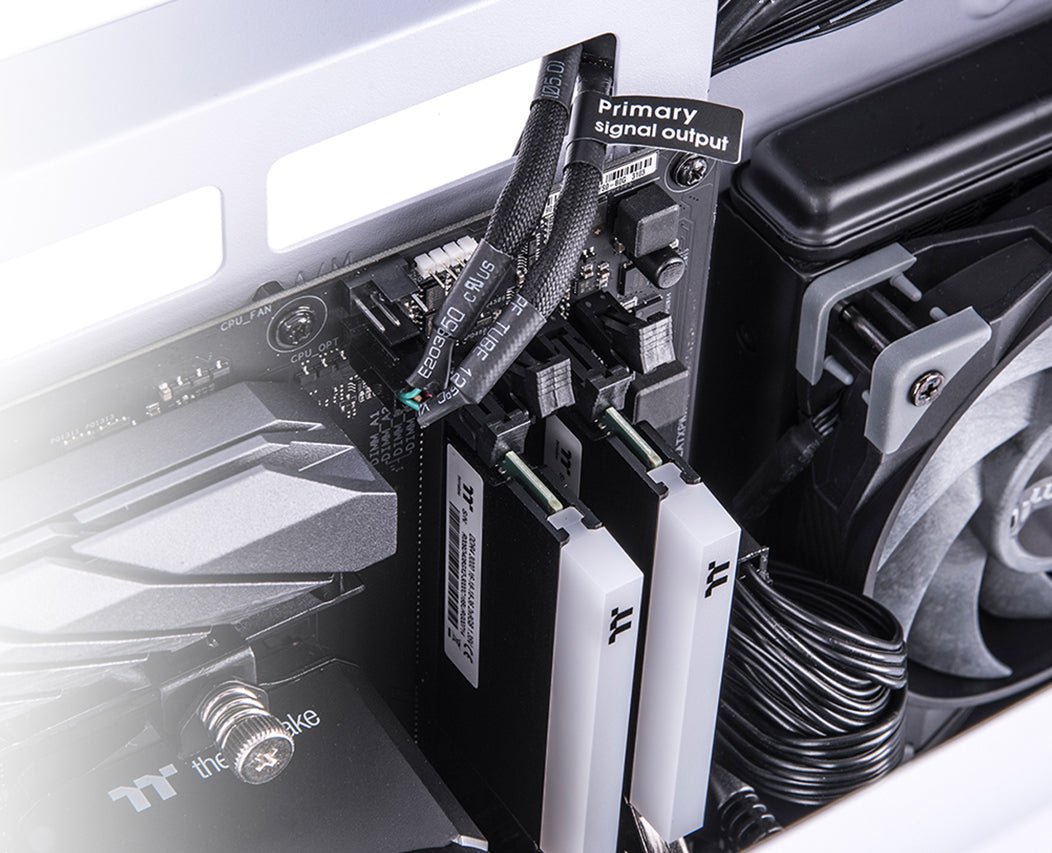

Easy Cable Management

TTMOD PWM Fan 4 Pin Y-Cable not only assures maximum fan usage when you run into limited fan headers on your motherboard, but also provides better cable management.

4-Pin PWM Fan Supported

Although 3-pin and 4-pin fans are both supported, only 4-pin fans support PWM control.

Specifications

Specifications:

P/NAC-060-CO1OTN-F1
Dimensions110 mm
ColorBlack
Rated Voltage12 VBlac
Pin SpecPin Connectivity:
2510 4 pin PWM (1-3pin fool-proof design)

Pin Material:
Nickel + Tin Plating

Pin Operating Temperature:
-20℃~65℃

Pin Rated Current:
0.8A(Male Contact)
Cable SpecCable Color:
White/Red/Orange/Green

Cable Current:
0.8A

Cable Type:
UL1061 #26

Cable Voltage:
DC 18V (Max)

Cable Length:
110 mm
Warranty2 Years
