More Information
P/N |
CL-W150-PL14RE-A |
|---|
WEIGHT |
782g |
|---|
PUMP |
Rated Voltage : 12 V
Rated Current : 175 mA |
|---|

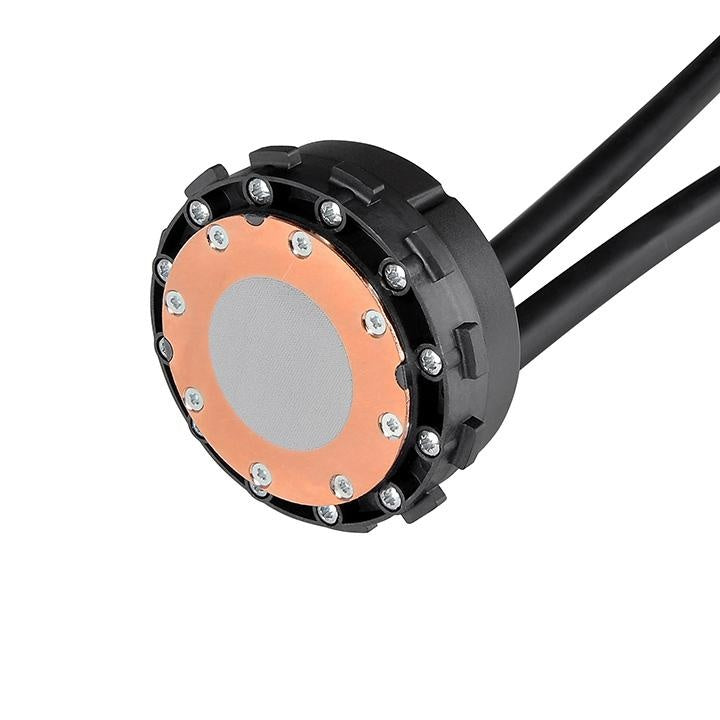

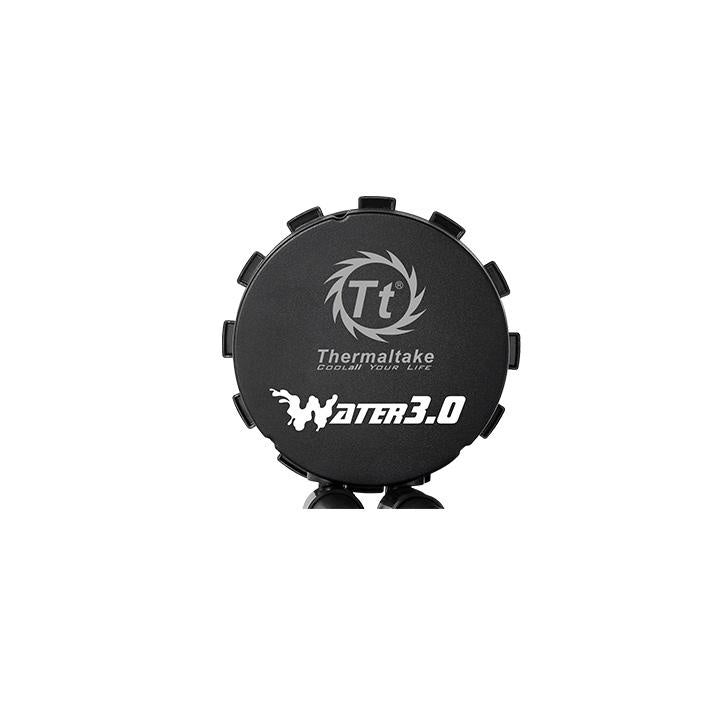

WATER BLOCK |
Material:Copper |
|---|

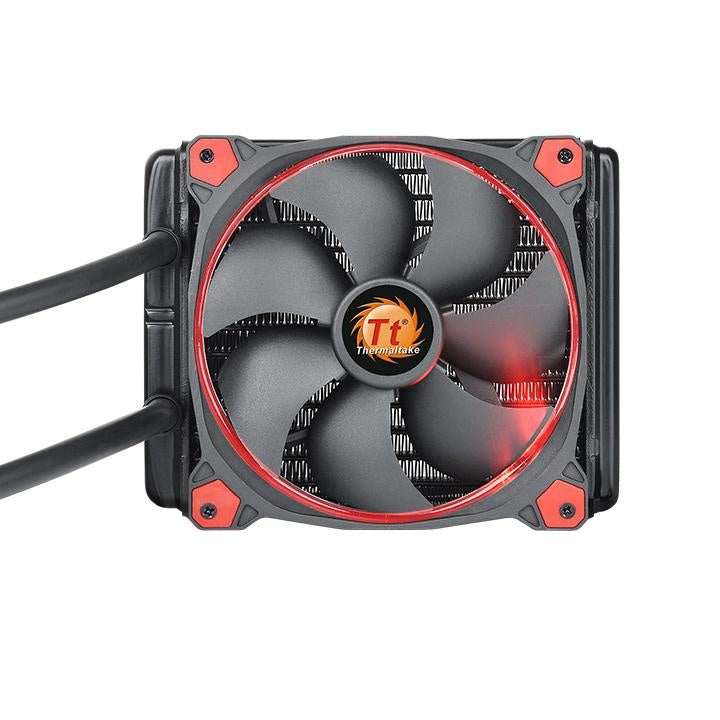

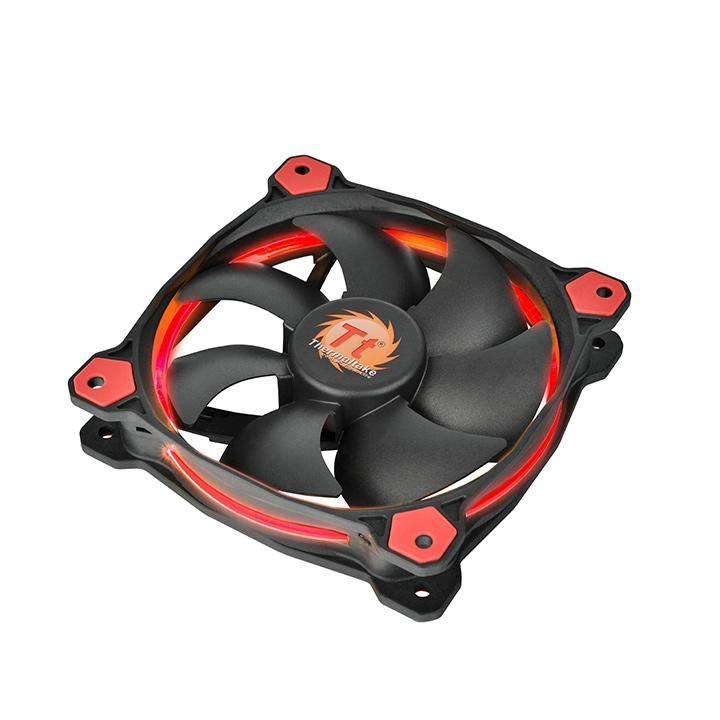

FAN |
Dimension :
140 x 140 x 25 mm
Speed:
800 ~ 1500 R.P.M (PWM)
400 ~ 1000 R.P.M (Low Noise Mode)
Noise Level:
18.5 ~ 26.4 dB-A
Rated Voltage:
12 V
Max. Air Flow:
22.14 ~ 40.6 CFM
Max. Pressure:
0.57 ~ 2.01 mm-H2O
Connector:
4 pin |
|---|
TUBE |
Length : 326 mm
Material : Rubber |
|---|

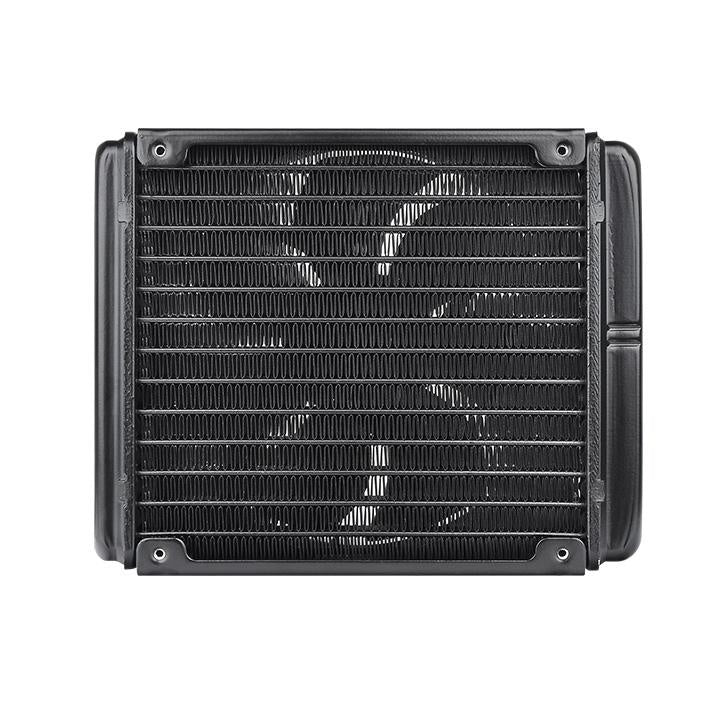

RADIATOR |
Dimension : 172 x 140 x 27 mm |
|---|
COMPATIBILITY |
Intel LGA 2066/2011-3/2011/1366/1156/1155/1151/1150
AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 |
|---|
Â
Cautions
Thermaltake recommends the following steps to be taken before using the Pacific series radiators and water blocks
- To ensure a clean loop, flush and rinse your radiators and water blocks with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while protecting the entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry. This will ensure a longer lifespan for your components.
Â
Thermaltake recommends the following steps to be taken after completing your water loop setup
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system â?? copper, brass, nickel, aluminum, and steel â?? from corrosion.
- Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the pump
- If necessary tilt the system slightly from side to side to bleed the air out of the loop.
- Place some paper towels under fittings and joining points to test for leaks.
- Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.
- Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
- Coolant might fade over time.
