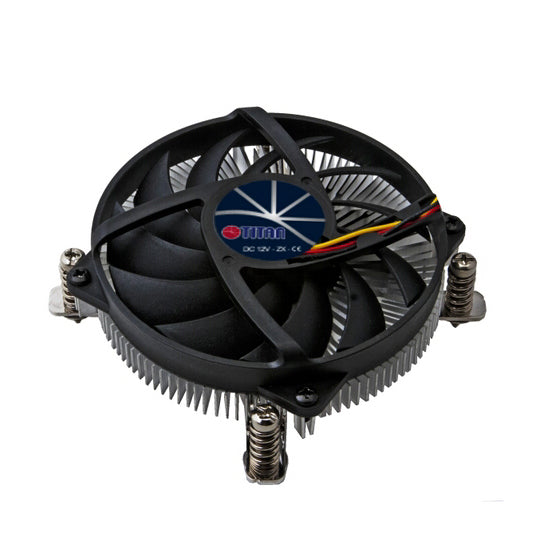

Titan Low Profile CPU Cooler (Intel LGA 1155, Intel LGA 1156)

Evercool's new Titan Low Profile CPU Cooler for Intel LGA 1155 and Intel LGA 1156!

• Radial aluminum fin design: centralizes airflow and enhances thermal dissipation

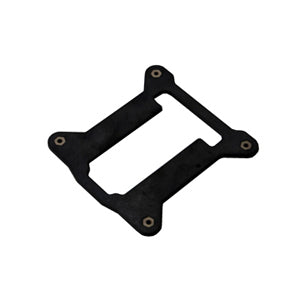

• Back holder design: keeps the motherboard from deforming

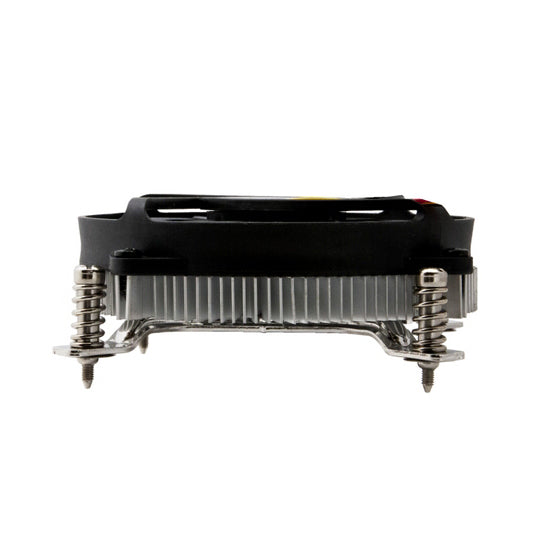

• 30mm low profile design: suitable for Home Theater PC (HTPC case)



• Compatibility: Intel LGA 1155 / 1156



• DC-155A915Z/R: Low noise fan for better performance



• DC-155A915Z/RPW: PWM speed controller: for effective cooling and minimum noise

CPU Support:

For Intel LGA 1155

• Intel Core i7-2600S


• Intel Core i5-2500T/Sã?2400Sã?2390T


• Intel Core i3-2120ã?2100/T

For Intel LGA 1156

• Intel Core i5-680ã?670ã?660ã?655Kã?650


• Intel Core i3-560ã?550ã?540ã?530


• Intel Pentium Dual-Core G6960ã?G6950

Specifications:

- DC-155A915Z/R - Outline Dimension Fan Dimension Rated Voltage Rated Current Power Consumption Rated Speed Airflow Static Pressure Noise Level Connector Bearing Type Life Time - DC-155A915Z/RPW - Outline Dimension Fan Dimension Rated Voltage Rated Current Power Consumption Rated Speed Airflow Static Pressure Noise Level Connector Bearing Type Life Time

95 x 95 x 30 mm 95 x 95 x 16 mm 12V DC 0.25A 3.0W 2600±10% RPM 47.61 CFM 0.153 InchH2O <33.4 dba= br=> 3-PIN Z-axis Bearing 60,000 Hours 95 x 95 x 30 mm 95 x 95 x 16 mm 12V DC 0.25A 3.0W 1000±25%~2600±10% RPM 18.3~47.6 CFM 0.039~0.153 InchH2O <24.8~<33.4 dba= br=> 4-PIN PWM function Z-axis Bearing 60,000 Hours
