ToughArmor M.2 PCIe NVMe SSD Mobile Rack for External 3.5” Drive Bay

The ToughArmor MB601M2K-1B is the worldâ??s first rugged M.2 NVMe removable mobile rack, supporting ultra-high speed 32Gbps data transfer using M.2 PCIe NVMe SSDs of all lengths and brands, including Samsung, Western Digital, Intel, Crucial, Corsair, Adata, and all other brands

Because M.2 SSDs are not designed for hot-swap, they use exposed circuit boards and delicate connectors typically rated for only 250 insertions and removals. With the MB601M2K-1B, your M.2 NVMe PCIe SSD is wrapped in a full-metal layer of protection, and takes advantage of ICY DOCKâ??s 10,000+ insertion / removal connector, making it easy to add, remove, and swap your drives quickly and safely. Additionally, the grounded connector design protects your drive from an electrical surge, ensuring your data is safe through many swaps.The removable function allows the user to swap the drive without rebooting the computer and makes system maintenance quick and easy.

Key Features
Â
â?¢	Fits 1x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
â?¢	Adjustable drive locker holds all length drives securely
�	Installs into any standard external 3.5� device bay or floppy bay
â?¢	Uses a U.2 port (SFF-8639) to connect, requires NVMe host
â?¢	Supports the full NVMe bandwidth specification of 32 Gbps
â?¢	Ruggedized full-metal enclosure meeting flammability requirements

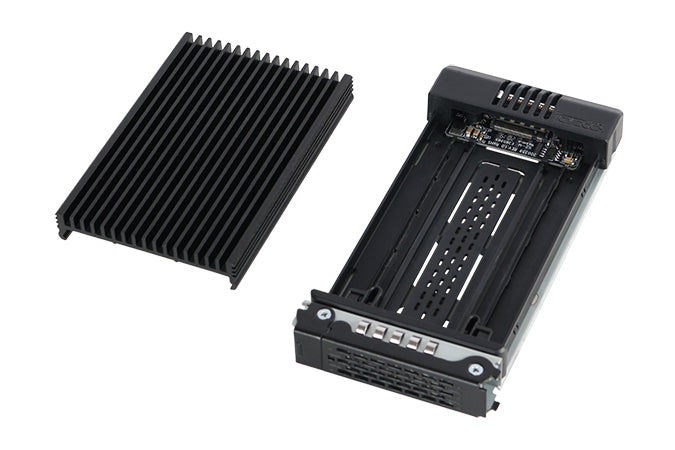

â?¢	Integrated heat sink and ample ventilation for excellent passive cooling
â?¢	2-segment key lock for additional physical security
â?¢	Eagle-hook tray latch securely holds the tray inside the enclosure
â?¢	EMI Grounding â?? protects SSDs from electrical damage
â?¢	Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
â?¢	Active Power Technology (APT) saves power by shutting the device down when no drive is installed.
â?¢	Industry leading 3-year warranty against all defects
â?¢	Complimentary support from professionally trained US-based technical support agents

Model Number : MB601M2K-1B

Color : Black

Support Drive Size : 1 x M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110

Compatible Drive Type : NVMe M.2

Number of Drives : 1

Drive Bay : 1 x external 3.5 drive bay

Host Interface : 1 x U.2 connector (SFF-8639)

Power Input : Via U.2 (SFF-8639)

Transfer Rate : Up to 32Gbps

Support HDD Capacity : No Limitation

Drive Cooling : Metal heat dispersion with passive cooling

Structure / Material : Full Metal

Support Hot-Plug : Yes

Drive Security : 2 segment key lock

Product Dimension (L x W x H) : 168.7 x 101.2 x 25.4mm

Product Net Weight : 546g

Package Gross Weight : 618g

Drive Activity LED Indication : Drive power: solid green; HDD access: flashing green

Package contents : 1 - Device, 1 - user manual, 10 - screw, 2 - key

 Connector Insertion Rate : 10,000

Humidity : 5%~65% RH

Operating Temperature : 0°C to 60°C (32°F to 140°F)

Storage Temperature : -35°C to 70°C (-31°F to 158°F)

Compliance : CE, RoHS, REACH
