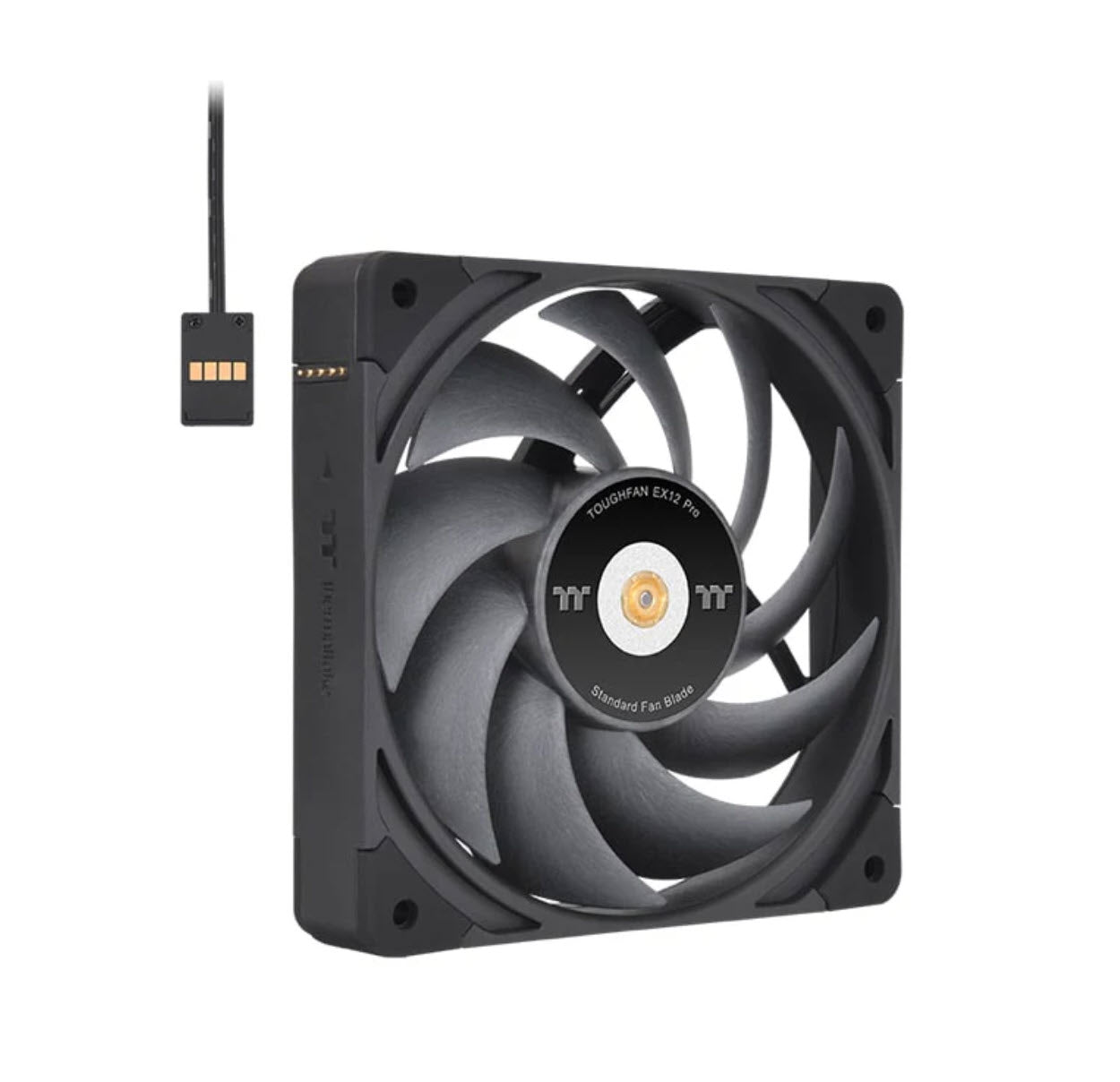

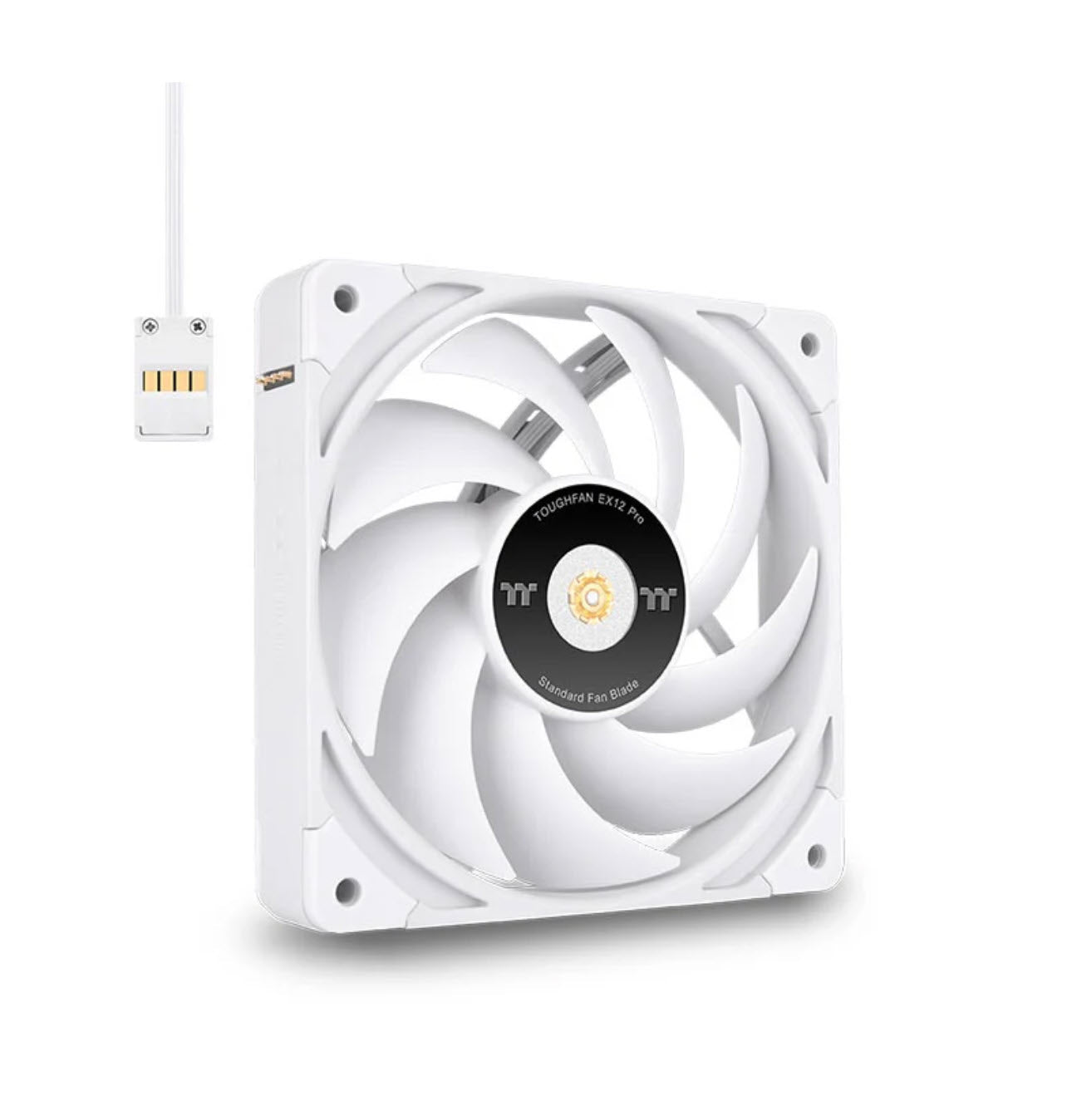

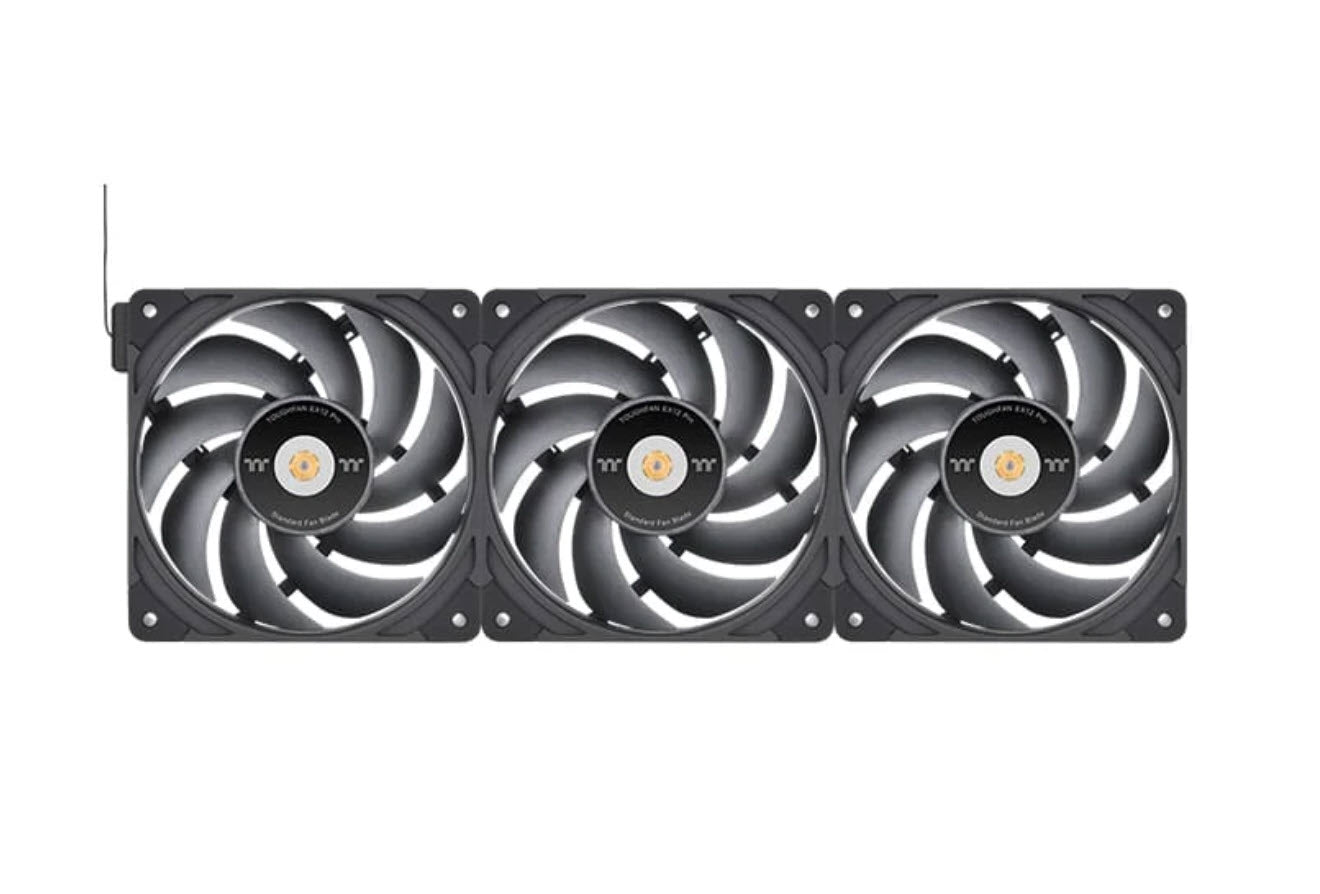

TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack)

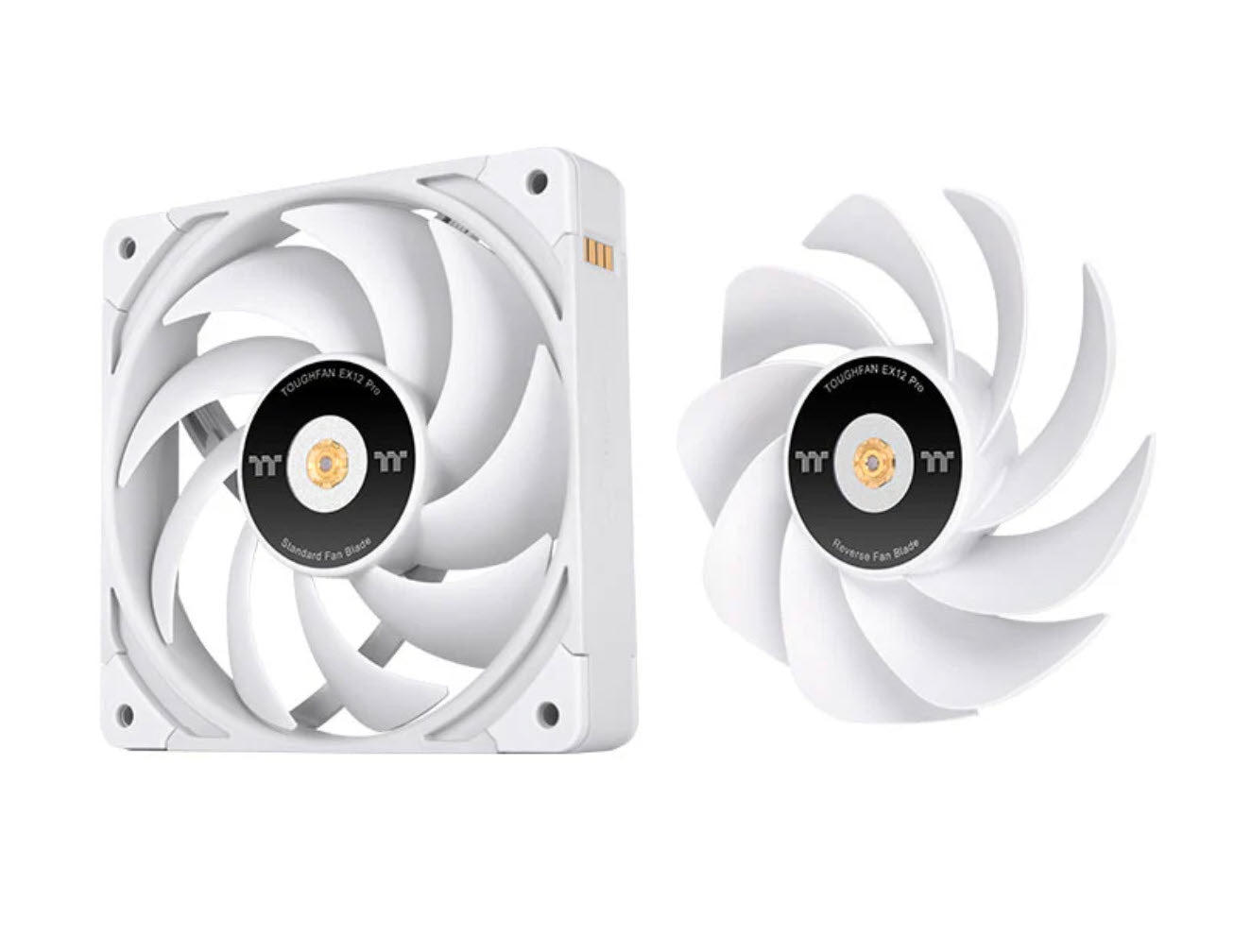

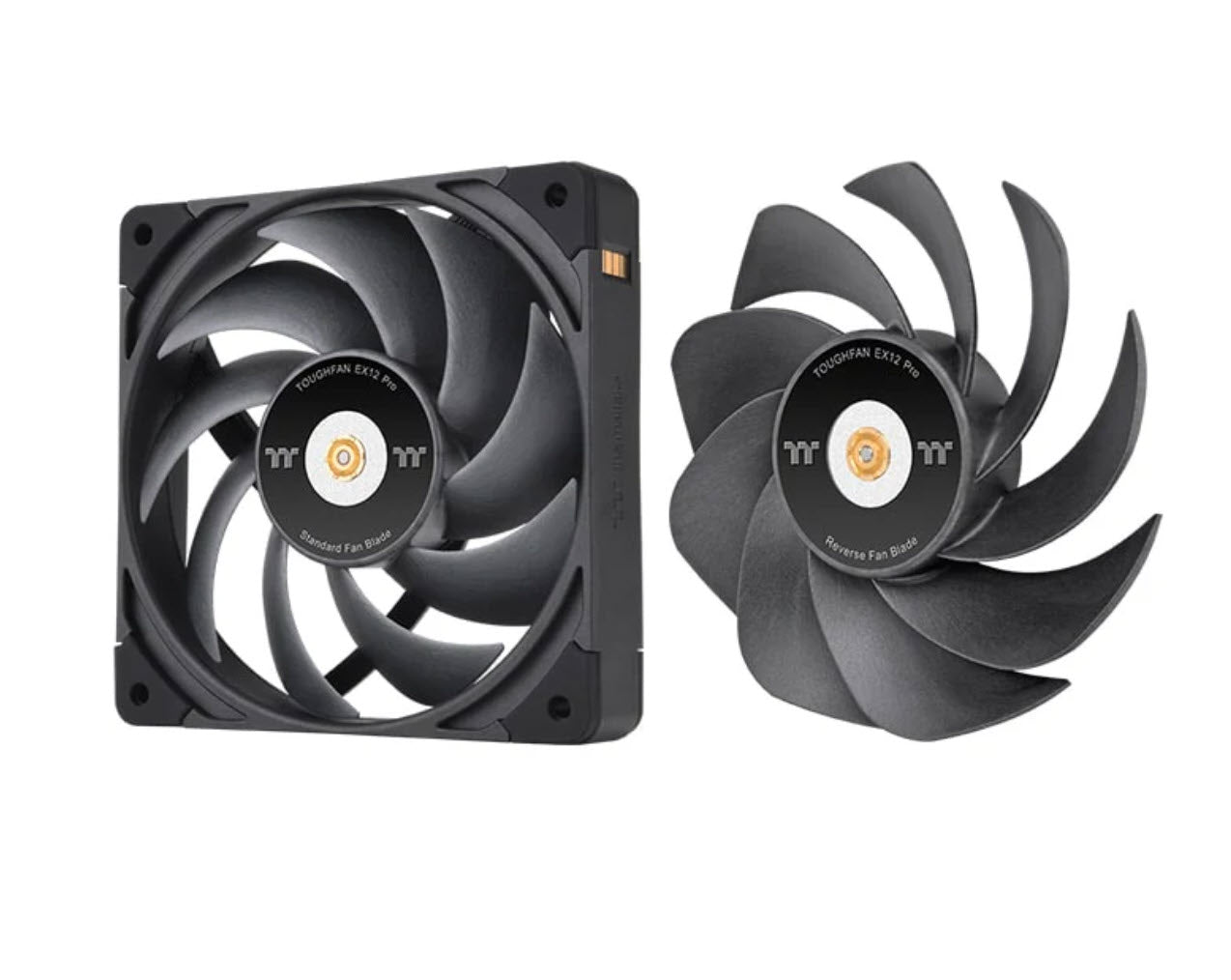

By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGFHAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation preferences.

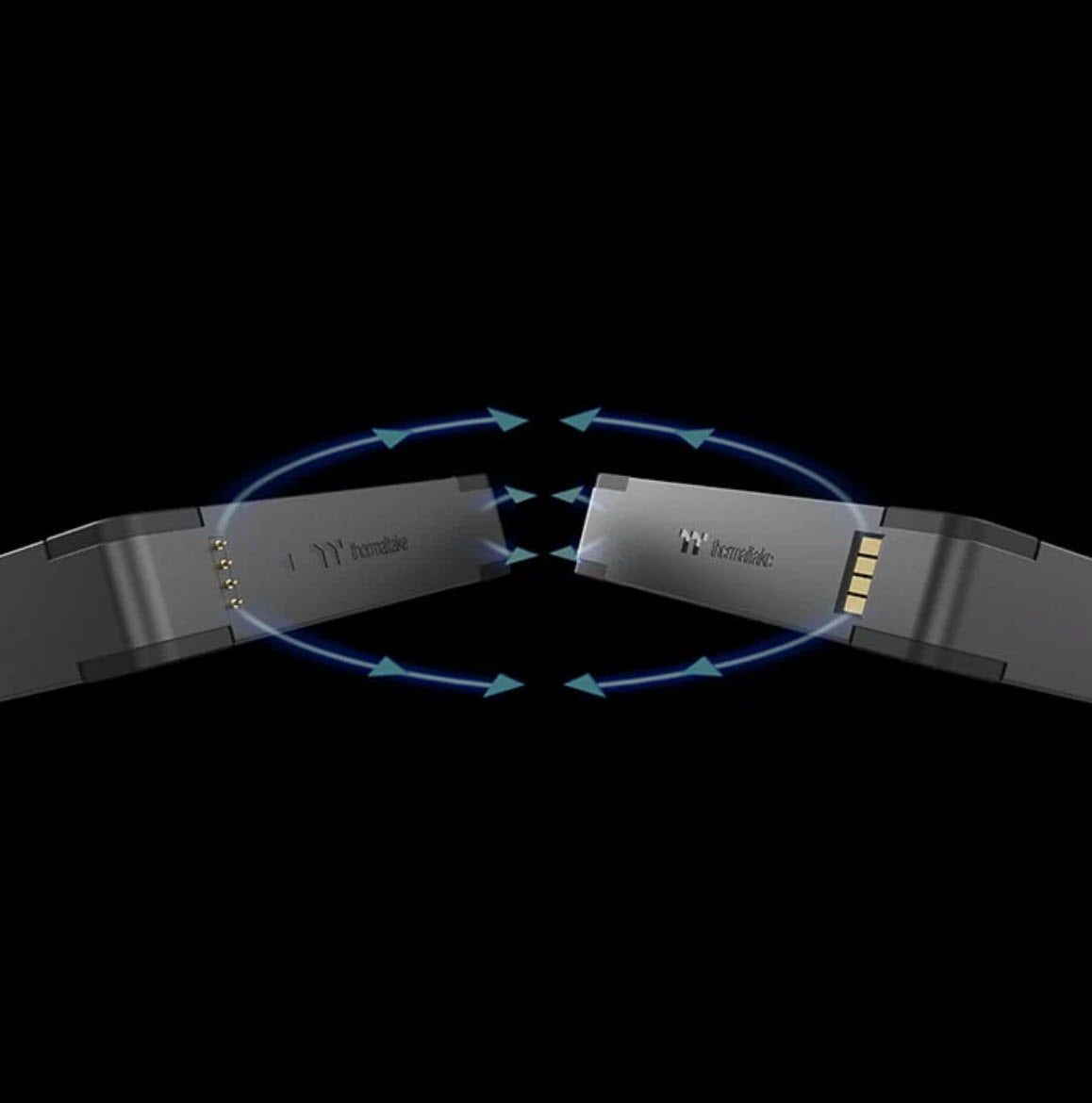

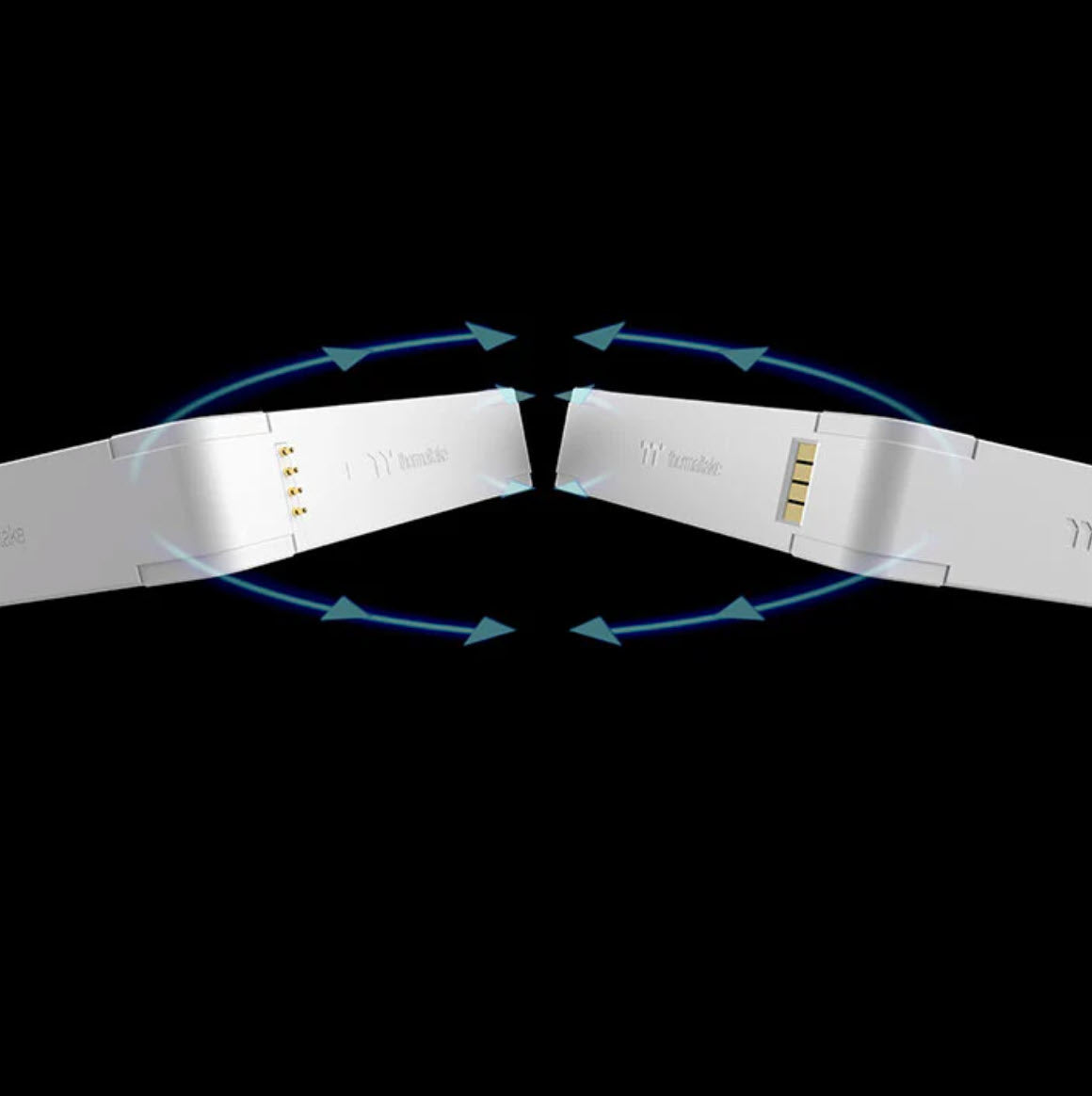

Steady Connection with MagForce 2.0

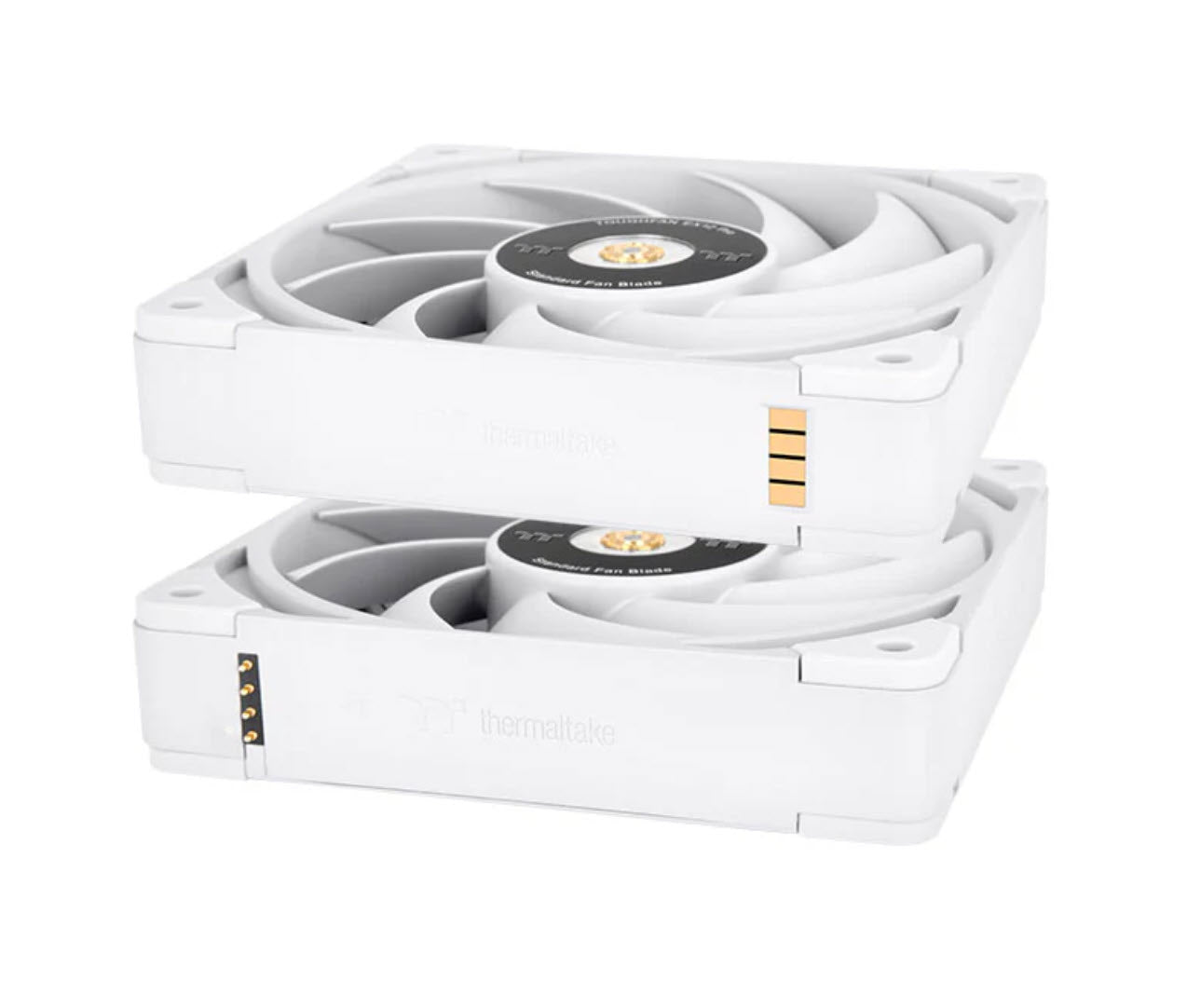

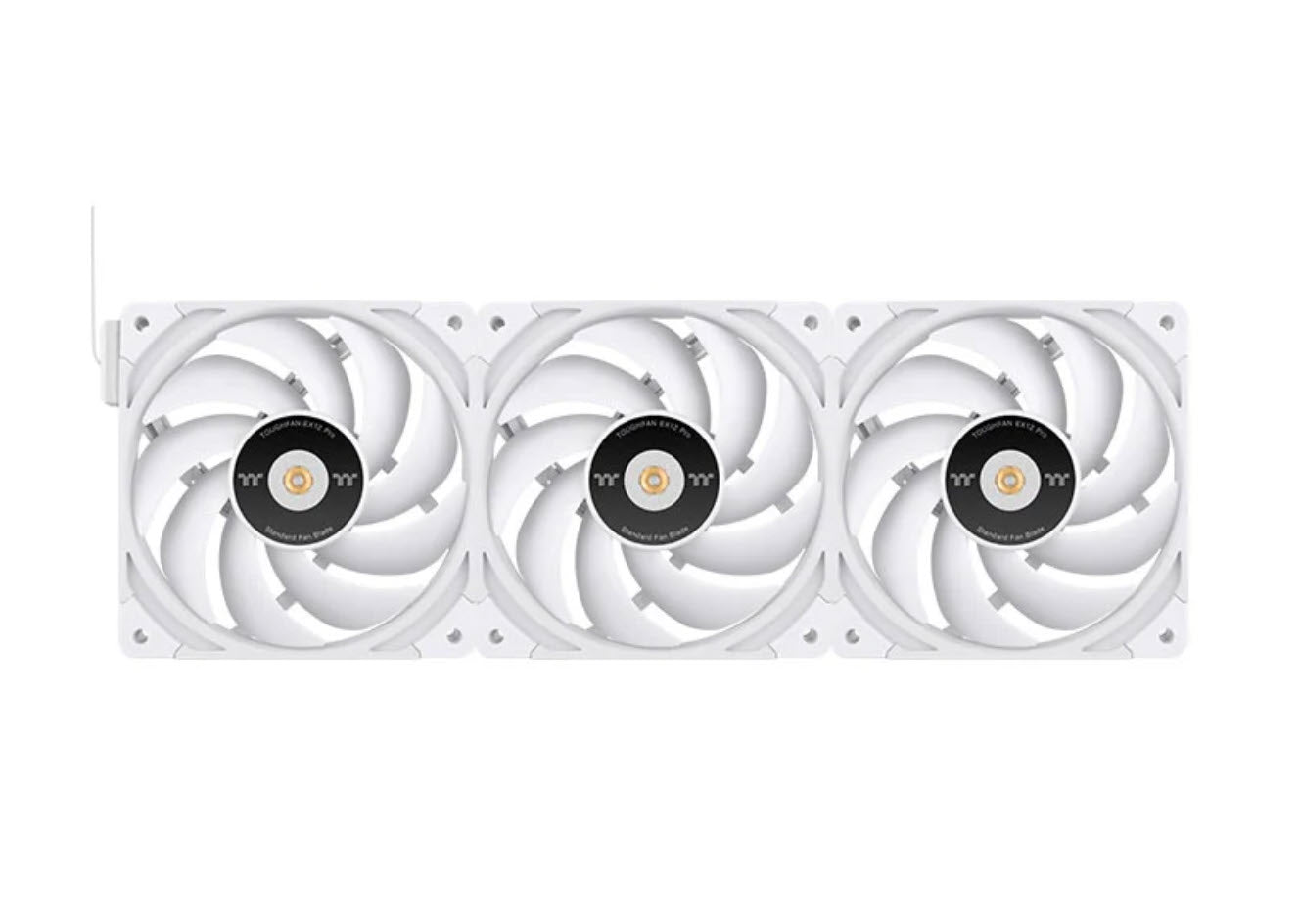

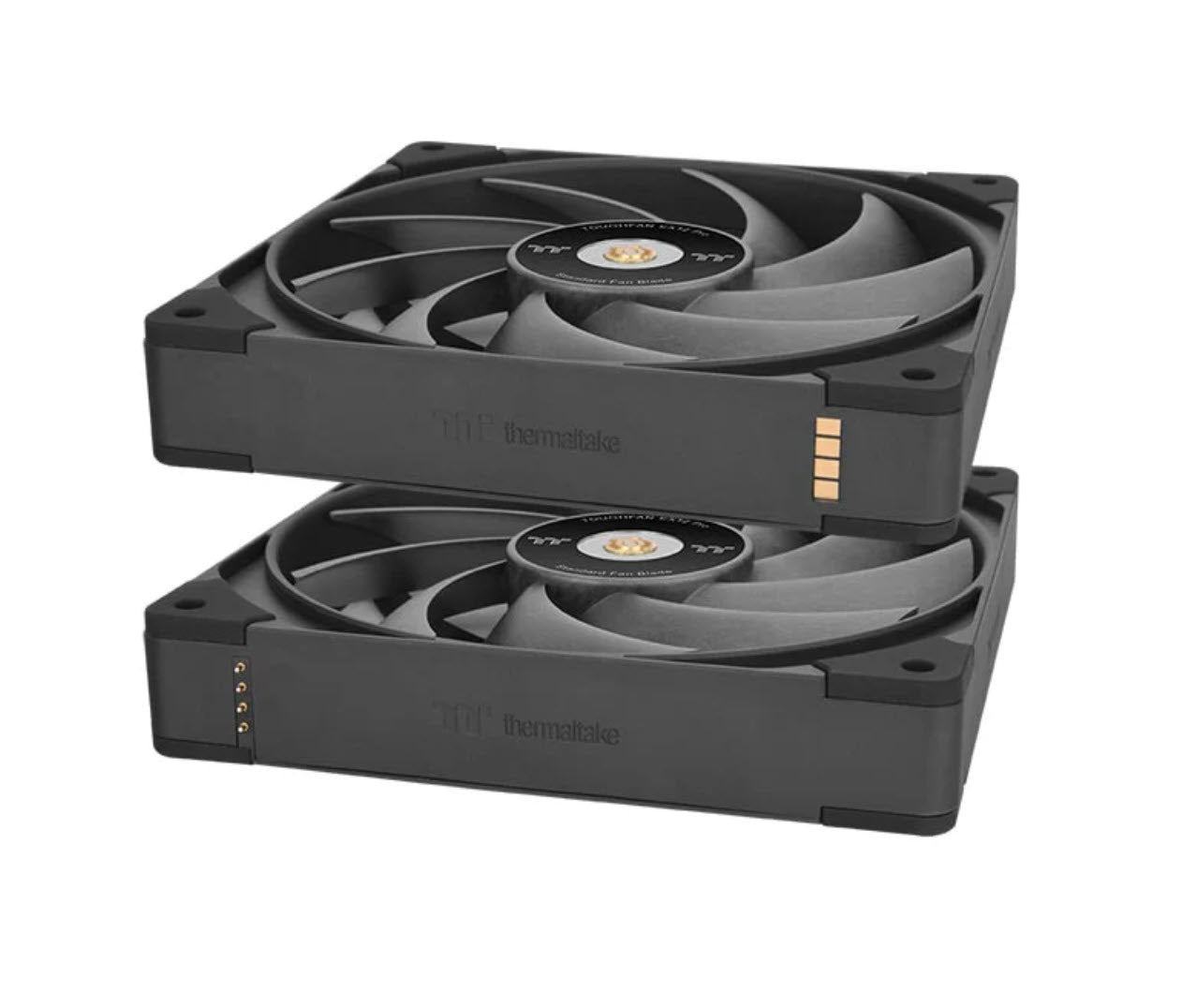

Evolved from TOUGHFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Features:

Specifications:



P/N	CL-F172-PL14BL-A
Dimension	140 x 140 x 25 mm
Interface	2510-4P
Started Voltage	6 V
Rated Voltage	12 V
Rated Current	0.3 A
Power Input	3.6 W
Fan Speed	PWM 500~2000 R.P.M
Max Air Pressure	Standard Fan Blade : 3.57 mm-H2O(one fan) Reverse Fan Blade : 2.95 mm-H2O(one fan)
Air Flow	Standard Fan Blade : 119.6 CFM(one fan) Reverse Fan Blade : 102.3 CFM(one fan)
Noise	Standard Fan Blade : 31.6 dB-A(one fan) Reverse Fan Blade : 34.1 dB-A(one fan)
Bearing Type	Hydraulic Bearing
Life Expectation	40,000 hrs,25℃
Other	Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3
