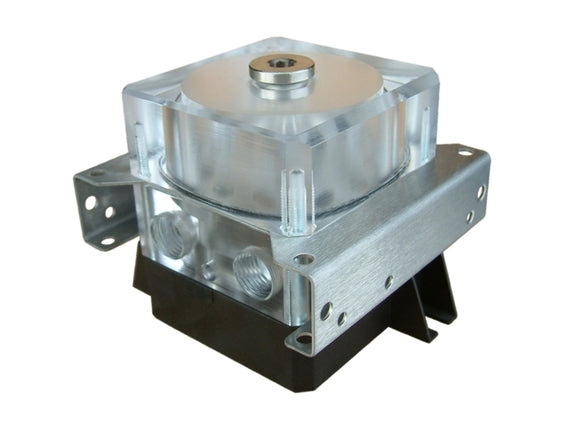

Watercool DDC-Tank

High-quality paper and Laing DDC Reservoir. Through the three-part design enables optimum ventilation. The bicameral system ensures that the coolant will stabilize in the upper area of the reservoir completely. For integration into the cooling system of the AB has two 1 / 4 inch thread. On another thread, which is located above the tank is filled. The extremely compact design is inspired by the design of the pump, despite the small dimensions of the reservoir has a capacity of around 100ml, which is for each cooling system more than adequate. To illuminate an LED hole is integrated.

The DDC-tank has a multi-functional stainless steel frame for mounting a 3.5 inch shaft with decoupling. In addition, the frame mounting holes on the side, from below and from above, these are held in the layout of a 80mm fan. Using an optional Entkopplungsset M4, the tank can be mounted vertically. (Pump not included)

• Dimensions (LxWxH): 62 x 62 x 50mm (without pump)


• Weight: 190g


• Material: Acrylic GS, stainless steel


• Connectors: 2x G1 / 4 inch thread

Delivery:

• 1x DDC-tank


• 1x Mounting materials


• 1x decoupling M3 (for horizontal decoupling)

Installation options:

• 3.5-inch bay


• Standing, hanging, side
