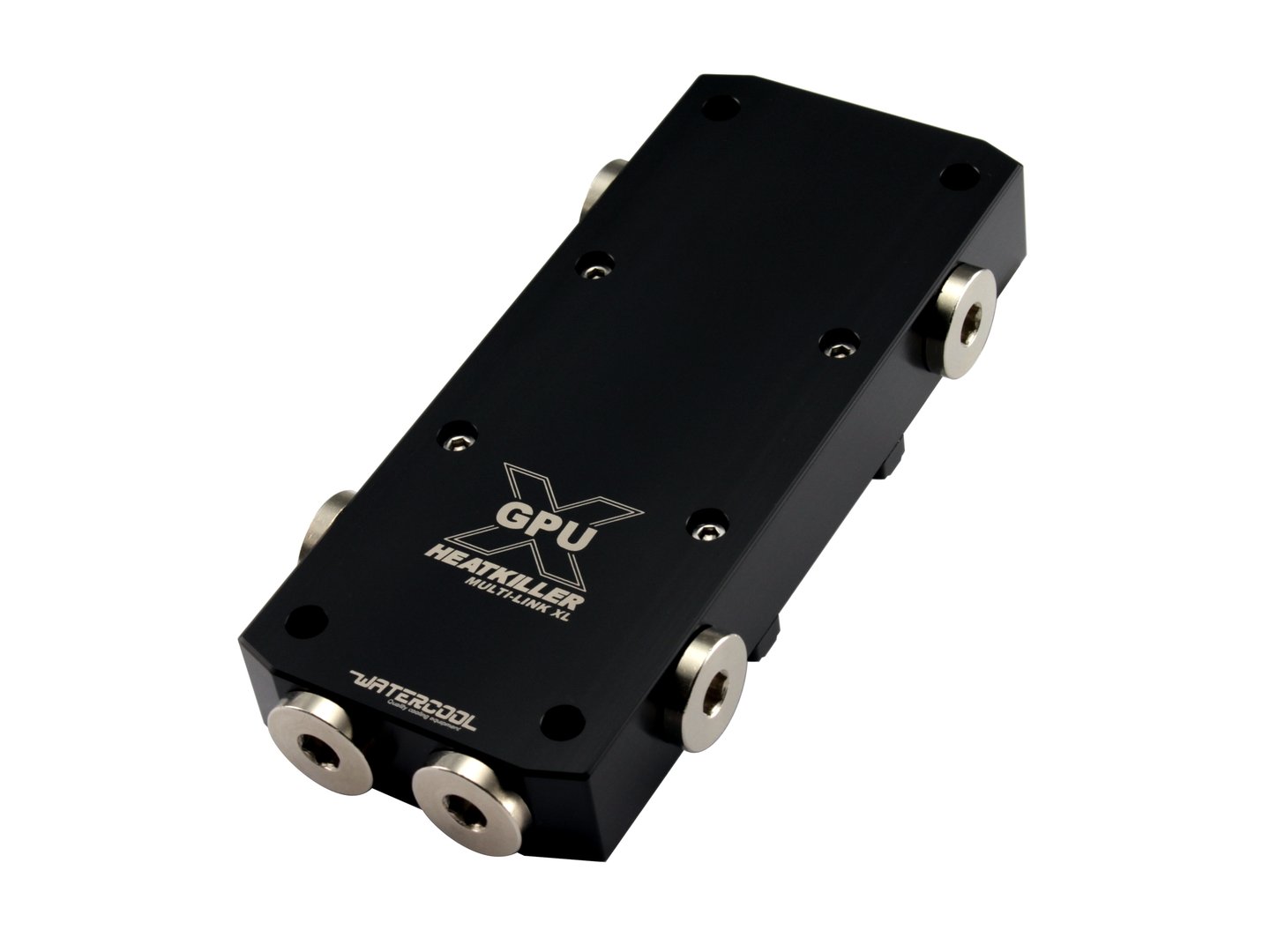

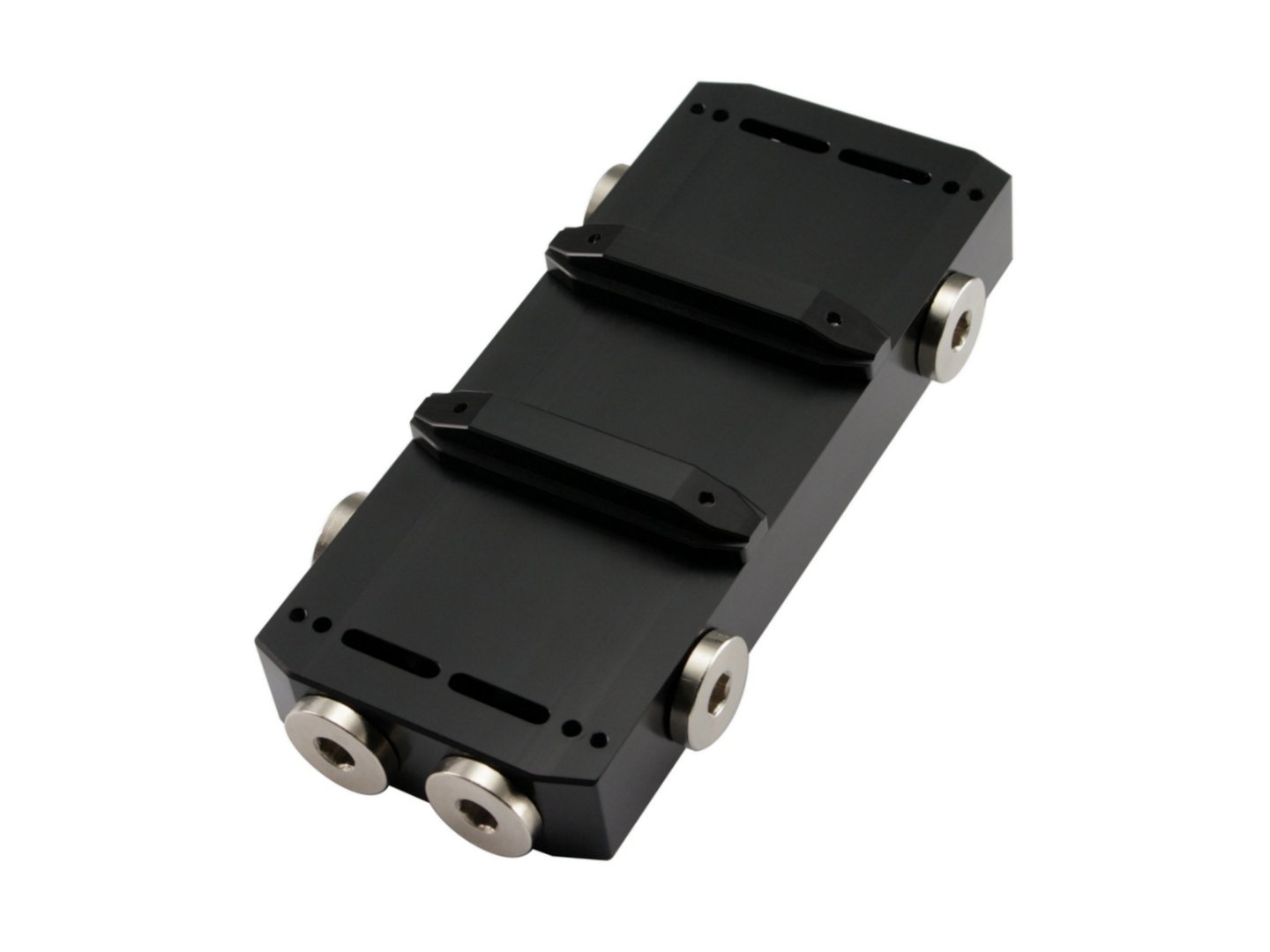

Watercool GPU-X Multi-Link XL 8-way

The GPU-X Multi-Link XL allows optimal combination of two or more graphics cards in SLI or Crossfire setup. He is aerodynamically optimized and gives the graphics cards additional stability.

With a few simple steps the link can be switched from parallel to serial operation. A necessary for SeriellverschluÃ? is already included.

All common configurations for three and four graphics cards setups are covered by the GPU-X Multi-Link XL. Other configurations are possible, plus there are 2 bridges closure for closing the free slots already included.

In addition, the link has eight G1 / 4 inch thread. He can be very flexible involved in the water cycle. The thread does not need to be sealed with the supplied plugs.

The installation is very simple. The GPU-X Multi-Link replaced the terminal blocks of VGA coolers. There are no additional adapters needed.

The product is compatible with all the coolers HEATKILLER ® GPU X ³ series.

Technical data:

• Material: POM (black)


• Dimensions: (L x W x H) 142 x 60 x 20 mm


• Weight: 250g


• Connection: G 1/4 inch 8x (DIN ISO 228-1)


• Pressure tested: 5 bar


• Compatible with: HEATKILLER® GPU X³ series, HEATKILLER® GPU Core X³

Scope of delivery:

• 1x GPU-X Multi-Link XL 8-way


• 5x closure bridges


• 1x Seriellverschluss
