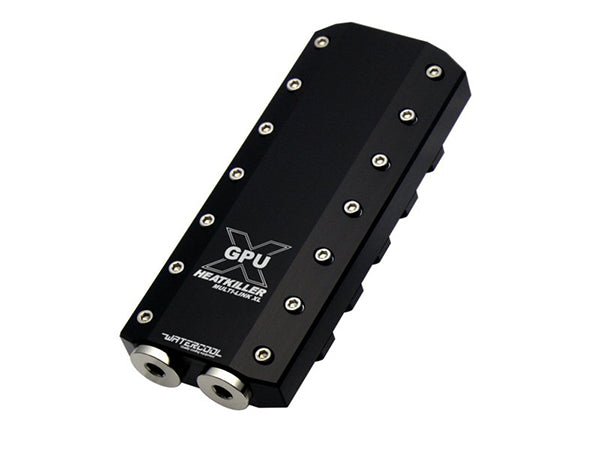

Watercool GPU-X Multi-Link XL

The GPU-X Multi-Link XL provides an optimal combination of two or more graphics cards in SLI or Crossfire setup. It is flow-optimized and gives the graphics card association added stability. With a few simple steps can the link be changed from parallel to serial operation. It is a necessary serial closure already included. All common configurations for three and four graphics cards setups are covered by the GPU-X Multi-Link XL. Other configurations are possible, in addition to 5 Connection bridges are to close the free slots in the delivery. In addition, the link with four 1/4 inch thread. So that it can be flexibly integrated into the water cycle. The unneeded thread can be closed with the supplied plugs.

Installation is very simple. The GPU-X Multi-Link will replace the terminal blocks of the graphics card cooler. It requires no additional adapter.

The product is compatible with all the coolers HEATKILLER ® GPU-X ³ series.

Specifications:

• Material: POM (black)


• Dimensions: (L x W x H) 142x 60 x 20 mm


• Weight: 250g


• Connection: 4 x G 1/4 inch (DIN ISO 228-1)


• Pressure tested: 5 bar


• Compatible with: HEATKILLER ® GPU-X ³ series, KILLER HEAT ® GPU-X ³ Core

Scope of supply:

• 1x GPU-X Multi-Link XL


• 5x closure bridges


• 1x Serial closure is optional
