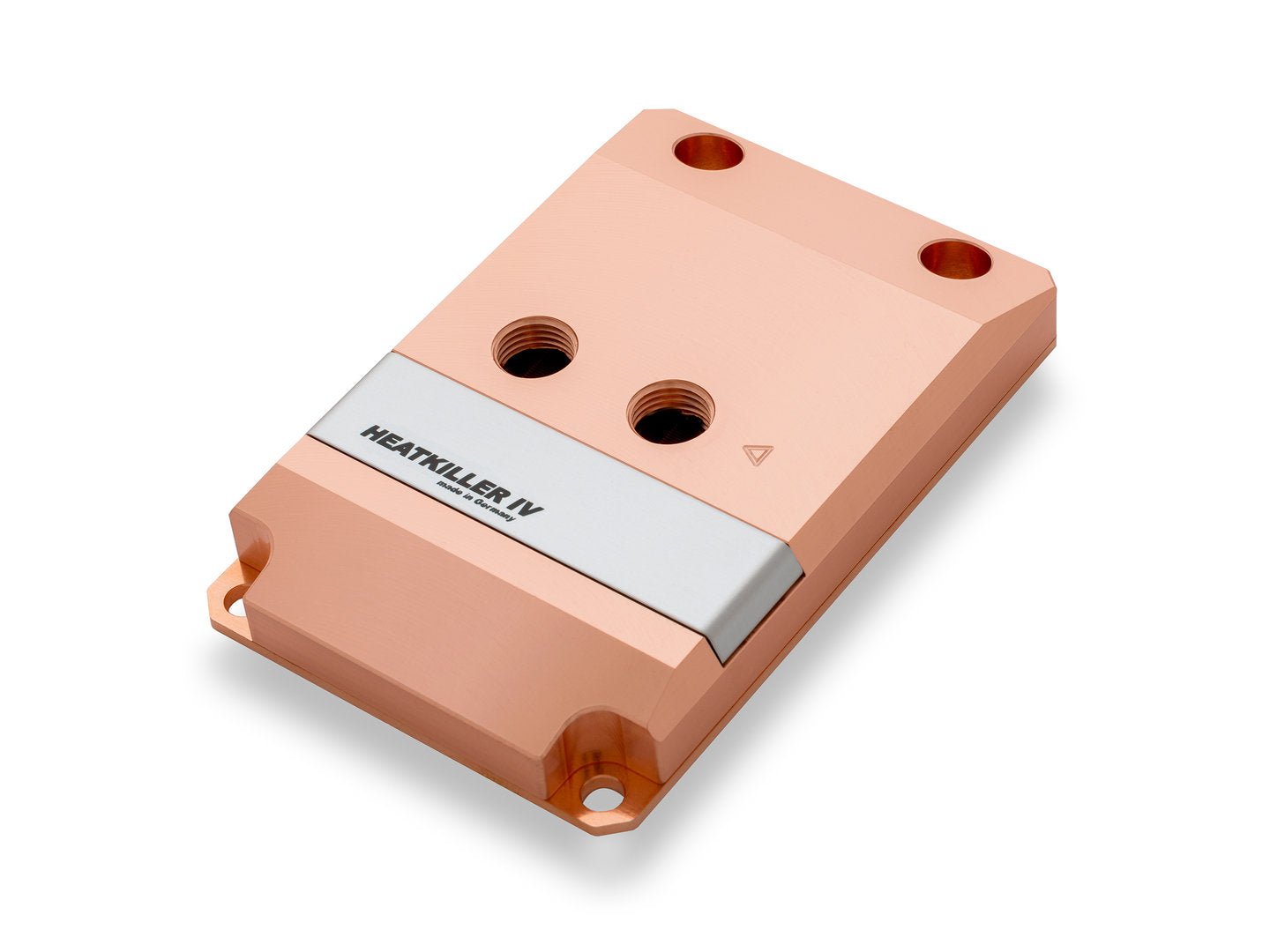

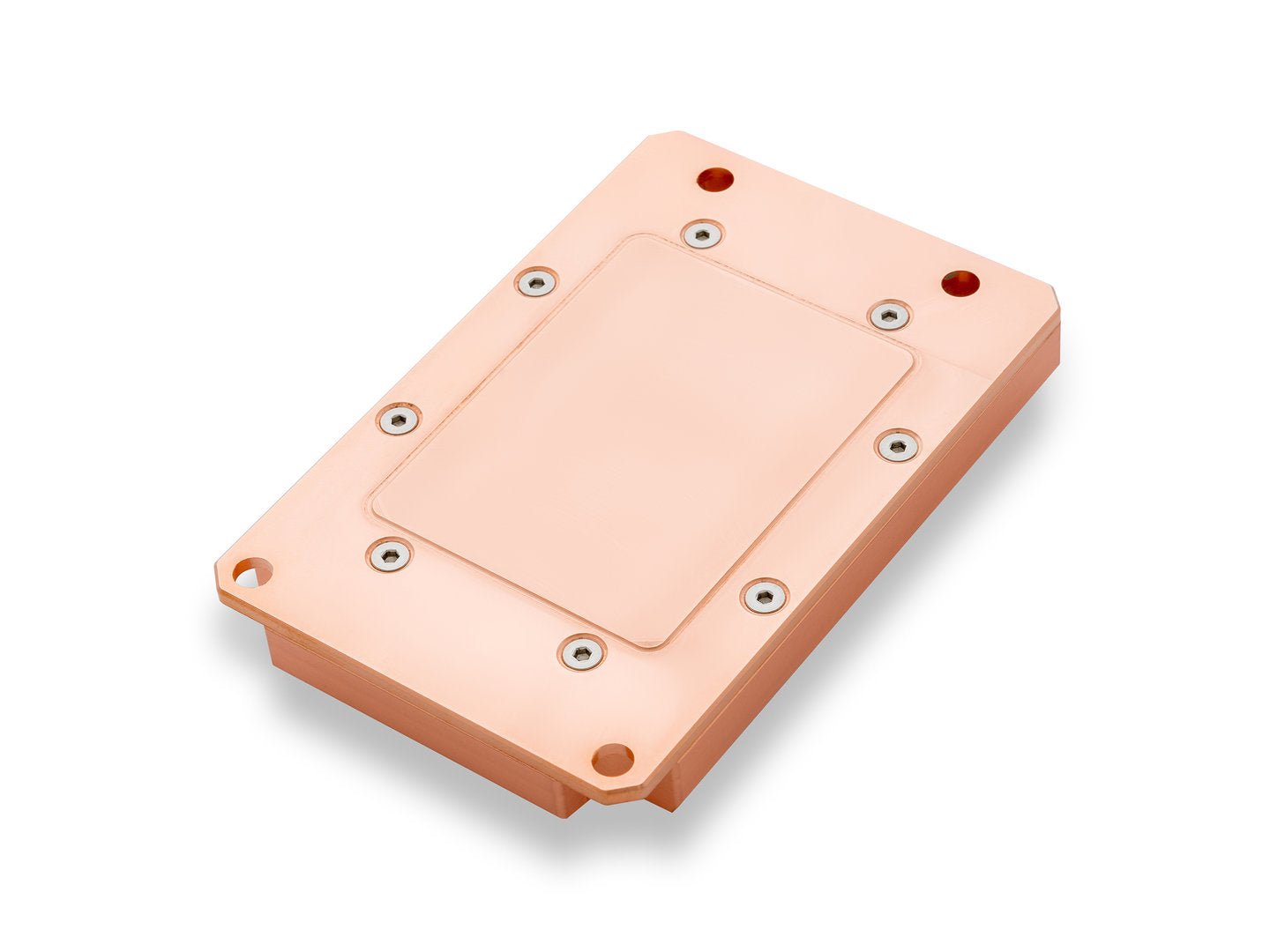

Watercool HEATKILLER® IV PRO for Threadripper™ PURE COPPER

The HEATKILLER® IV PRO for Threadripper? is a premium water block specifically designed for AMD® Threadripper? processors. It's based on the multiple award-winning HEATKILLER® IV CPU water block series.

The main feature of the block is the completely new cooling structure that is perfectly adjusted to the specific Threadripper? package. Instead of simply extending the cold plate, we developed a completely new and unique water block. For example, the cooling structure is more than 80% larger than that of a regular HEATKILLER® IV PRO. Flow and bleeding characteristics were also optimized. All these features let the HEATKILLER® IV PRO for Threadripper? block become a true performance monster!

Mounting the block is extremely simple due to the revamped easy-mount-system. It comes with a defined stop, which guarantees perfect and even pressure over the whole IHS.

The HEATKILLER® IV is a product ?made in Germany?, manufactured on state-of-the-art CNC machines at the Watercool headquarters.

Specifications::
Material Top: Copper
Material cold plate: Copper
Material EasyMountSystem: Nickel plated brass
Measurements (L x B x H): 118 x 78 x 18mm
Weight: approx 900g
Gaskets: NBR 70
Ports: 2x G ¼ inch (DIN ISO 228-1)
Distance between ports: 25 mm
Compatible with: socket TR4 (AMD® Ryzen? Threadripper?), Socket SP3r2 (AMD® EPYC?)

Scope of delivery:
HEATKILLER® IV PRO for Threadripper? PURE COPPER
Mounting material
Manual
