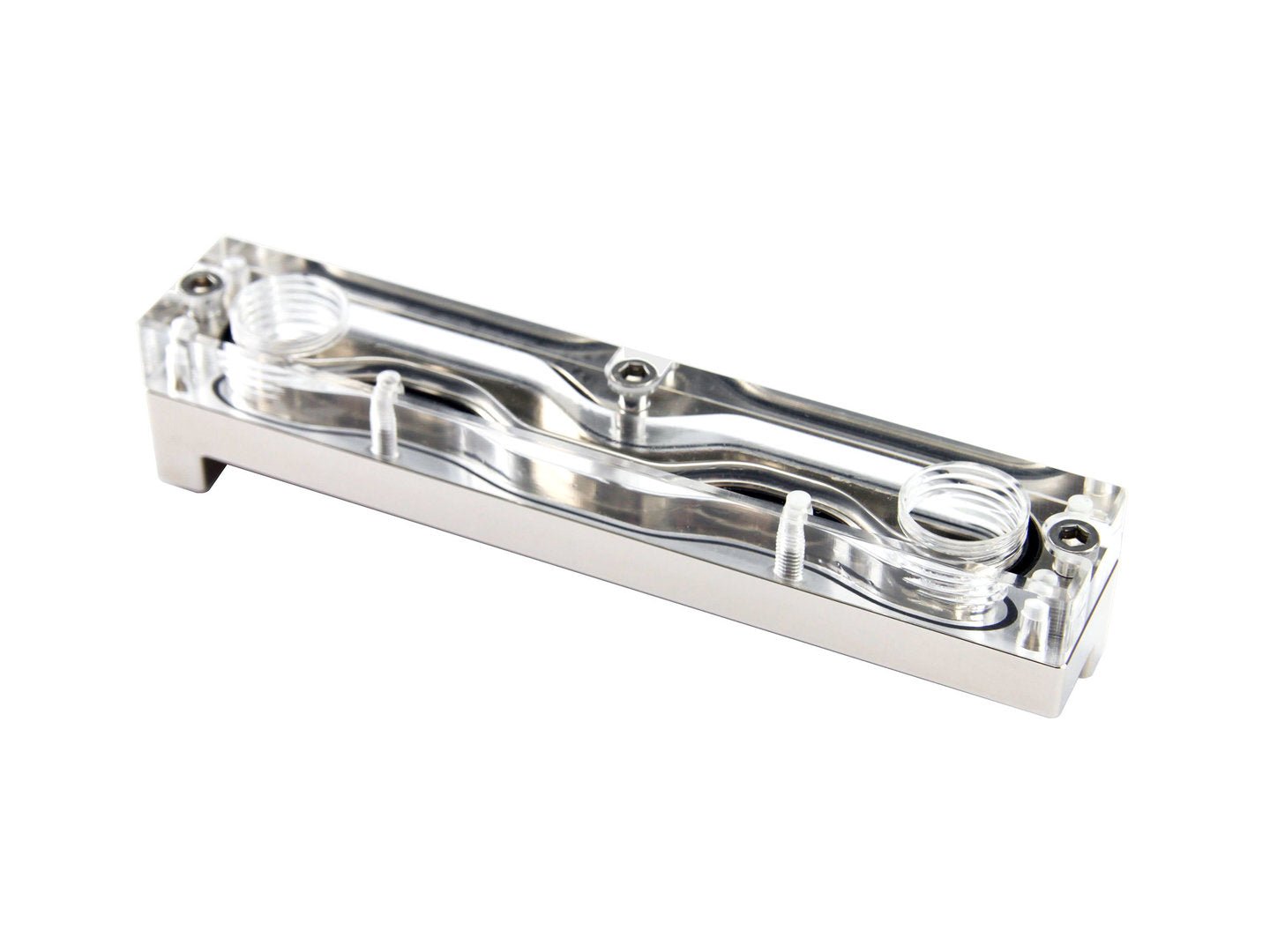

Watercool HEATKILLER® MB-X VRM ASUS RAMPAGE V - ACRYL NI

The heaters of the HEATKILLER® MB-X series are primarily designed for their performance. They are always designed specifically for the respective motherboard and are therefore not modularly designed as the products of our HEATKILLER® SW-X series. In return, the demanding customer expects an outstanding cooling performance with a very low flow resistance (high flow). In addition to the voltage transformers, the coils are also cooled. This improves the stability of the motherboard while increasing the overclocking potential.

Another feature of the HEATKILLER® MB-X series are the insulating spacers. These decouple the heat sink electrically from the mainboard. At the same time, you can also easily and tilt-free assembly.

Only high-quality materials are used in the production of the HEATKILLER® MB-X series. So the floor is made of 99.9% pure electrolyte copper. In order to save weight, the upper part is milled from an industrial plastic (POM). The surface is very clean, so disruptive screws completely disappear under a cover of polished stainless steel.

The water coolers can be conveniently integrated into the water circuit via G 1/4 inch thread. In addition to the mounting material, heat-conducting pads are also already supplied. Additional thermal conductors are not required.

Attention: This variant only includes the VRM water cooler.

Technical specifications:



•     Material: electrolytic copper nickel plated, POM, stainless steel


•     Dimensions (Lx WxH): 107 x 19 x 22.5mm (VRM)


•     Weight: approx. 150g


•     Pressure tested: 5 bar


•     Seals: NBR70


•     Connections: G ¼ inch (DIN ISO 228-1)

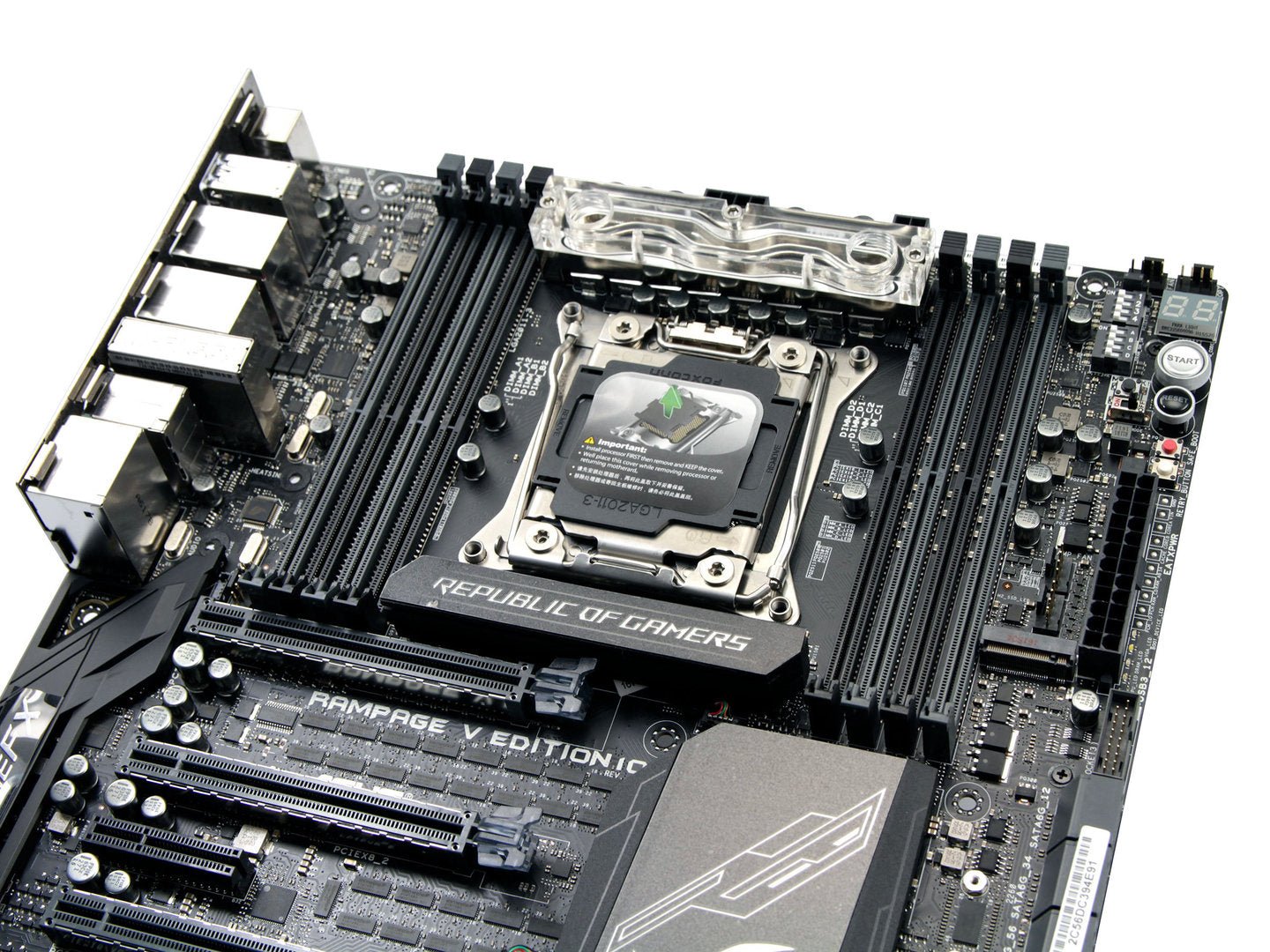

•     Compatible to:


•     ASUS ROG RAMPAGE V EXTREME,


•     ASUS ROG RAMPAGE V EXTREME / U3.1,


•     ASUS ROG RAMPAGE V EDITION 10



Delivery:



•     1x HEATKILLER® MB-X VRM ASUS RAMPAGE V - ACRYLIC NI


•     1x mounting material


•     1x thermal pads


•     1x assembly instructions
