Watercool HEATKILLER® MB-X VRM ASUS X399 - ACRYL

The HEATKILLER® MB-X series water blocks are absolutely focused on performance. They are individually designed to fit one specific motherboard and are not modular, like their HEATKILLER® SW-X counterparts. As a result, the customer is treated with exceptional cooling performance while maintaining extremely low resistance (High Flow Design). The HEATKILLER® MB-X water blocks cool both the MOSFET modules and the chokes. This enhances the overclocking potential and boosts stability in borderline stable overclock settings.

All HEATKILLER® MB-X series water blocks come with preinstalled insulating spacers. These provide an easy and tilt-free installation, while electrically decoupling the block from the board.

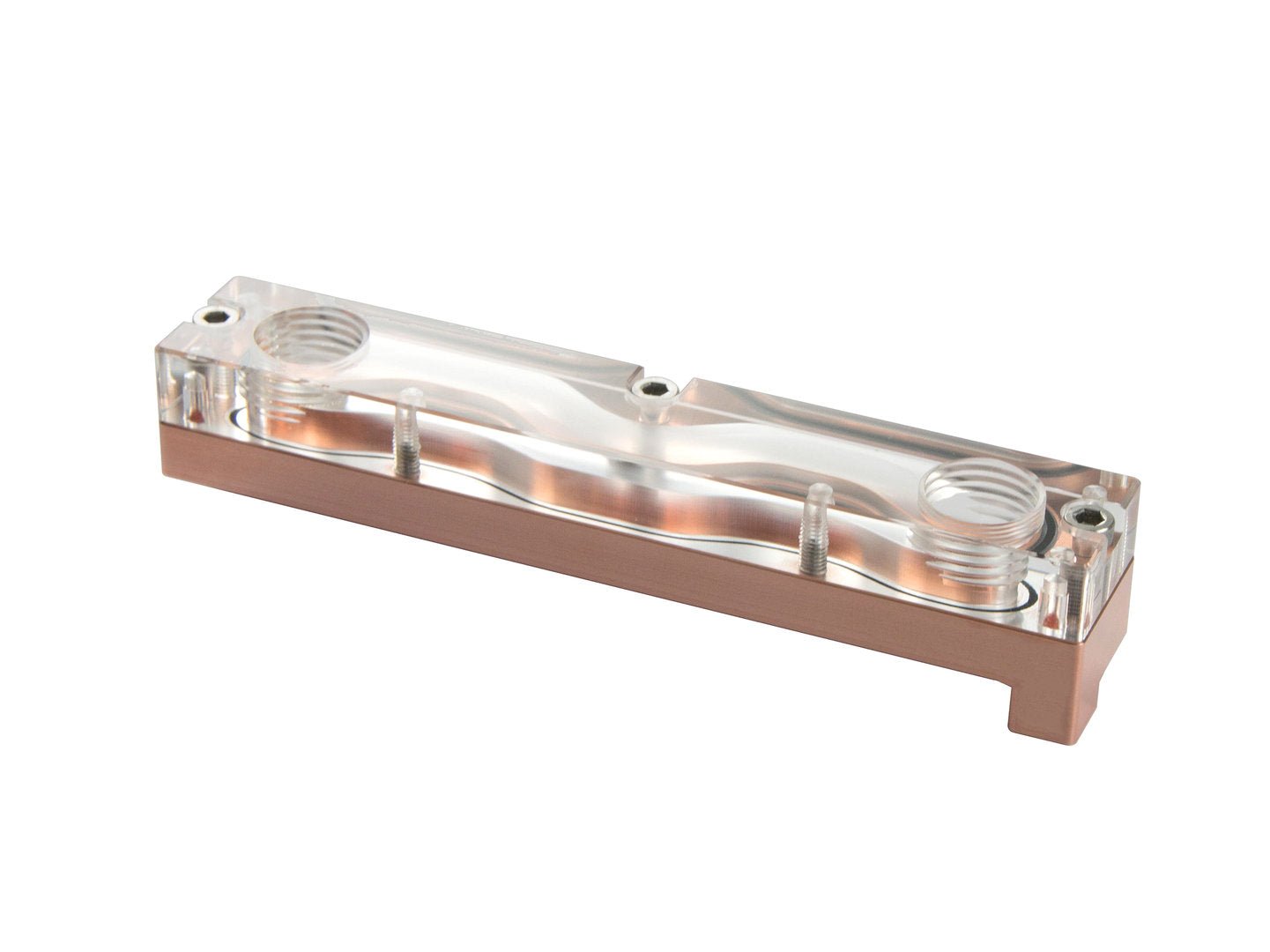

We use only highest quality materials for manufacturing our HEATKILLER® MB-X series water blocks. The block itself is milled out of 99.9% pure electrolytic copper. The top made from ACRYL (true PLEXIGLAS GS) grants free view on the coolant.

The block can be integrated into the loop via two G1/4'' threads. All mounting material is part of the delivery scope, including pre-cut and fitted thermal pads. No additional thermal interface material is needed.

Please also check our HEATKILLER Motherboard Compatibility Chart.

Specifications:
Material: Electrolytic Copper, PLEXIGLAS GS
Measurements (LxBxH): 107 x 19 x 22,5mm (VRM)
Weight: approx. 150g
pressure tested: 5 bar
Seals: NBR70
Ports: G ¼ '' (DIN ISO 228-1)

Compatible with:
ASUS ROG ZENITH EXTREME (confirmed physically)
ASUS ROG Strix X399-E Gaming (confirmed physically)
ASUS Prime X399-A (confirmed visually)

Scope of Delivery:
1x HEATKILLER® MB-X VRM ASUS X399 - ACRYL
1x Mounting Material
1x Precut thermal pads
1x Installation manual
