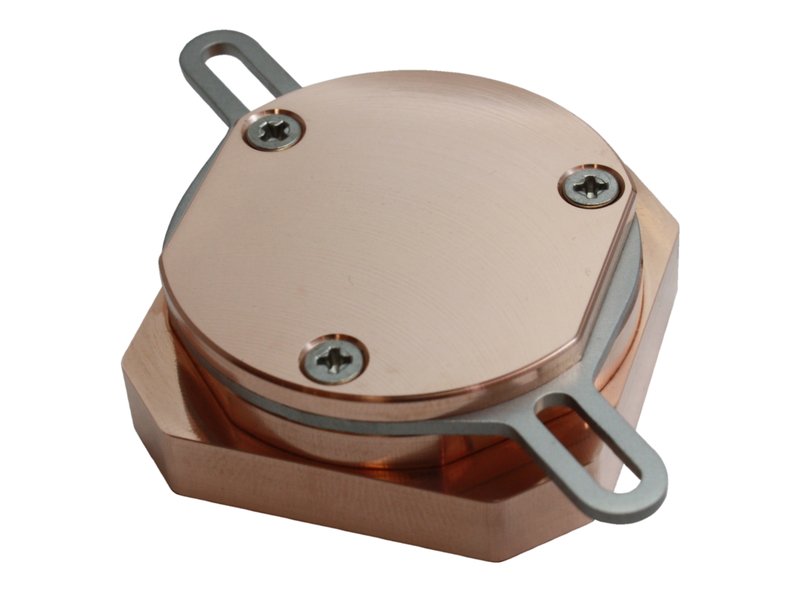

Watercool HEATKILLER® NSB Rev3.0 Ni

The HEATKILLER® NSB Rev3.0 Ni combines cooling power with maximum flexibility. This chipset cooler has been constructed to fit almost any mainboard. The mounting plate can be turned, to allow mounting in any desired orientation ? no matter how the mounting holes are placed. Two different mounting plates are included, which cover almost any possible mounting hole spacing from 43.0 mm to 79.2 mm.

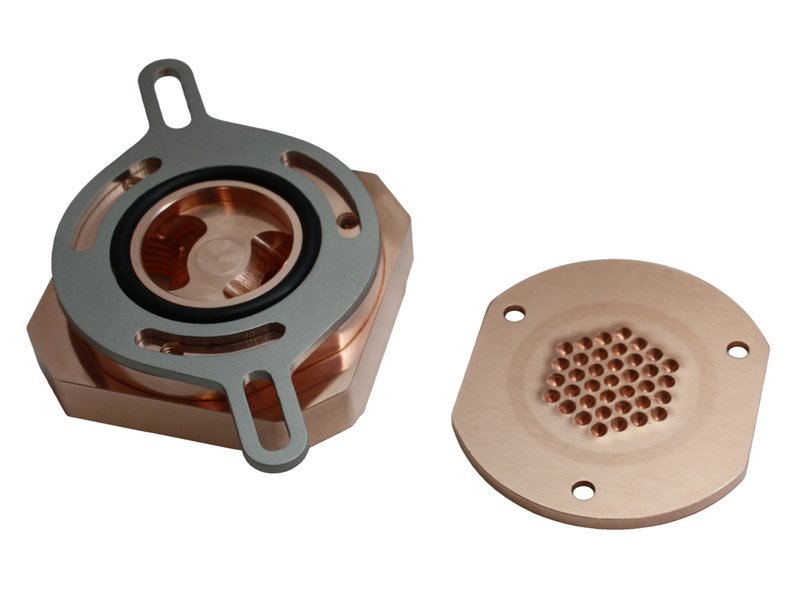

The bottom is manufactured from pure copper and utilises a highly efficient cooling structure. The flow resistance of the cooler is exceedingly small.

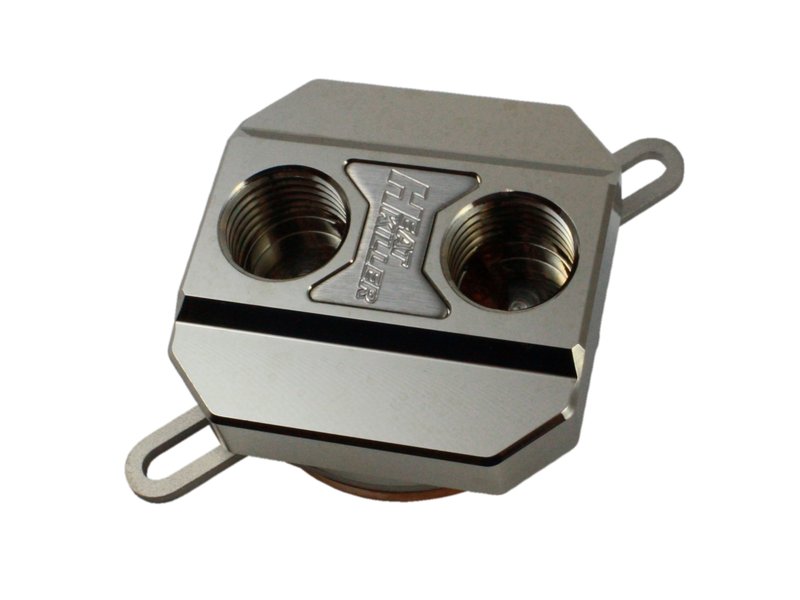

The top is manufactured from pure copper, plated with nickel, and features an ornament made from stainless steel just like the mounting plate. Despite the small dimensions (39 x 39 mm), the threads (G1/4?) are a full 22 mm apart.

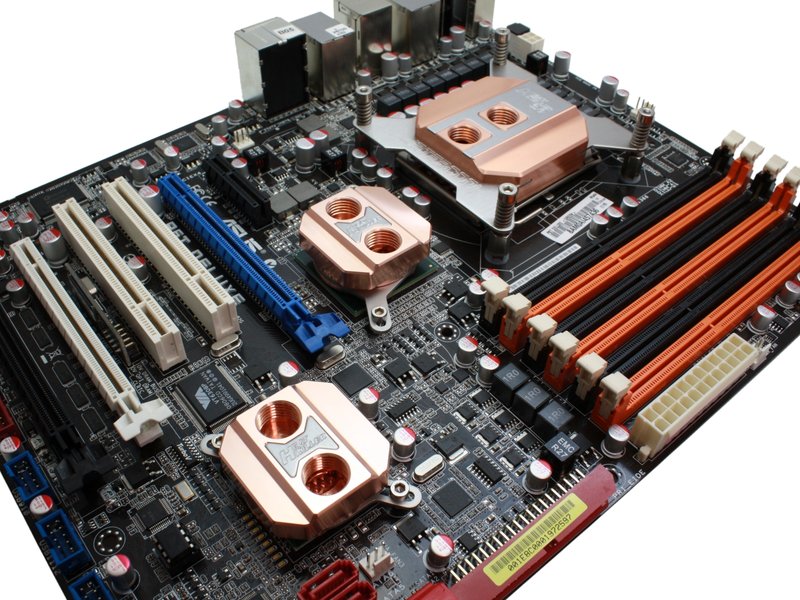

The HEATKILLER® NSB Rev3.0 Ni can be mounted on northbridges and on southbridges.

Specifications:

Material: Electrolytic copper ? nickel plated, stainless steel

Dimensions (L x W x H): 39 x 39 x 17 mm (block)

Weight: approx. 150 g

Pressure tested: 5 bar

Threads: G ¼?(DIN ISO 228-1)

Thread spacing: 22.0 mm



Included:

1x HEATKILLER® NSB Rev3.0  Ni

1x Mounting plate (43.0 to 59.0 mm)

1x Mounting plate (59.5 to 79.2 mm)

1x Installation material/manual
