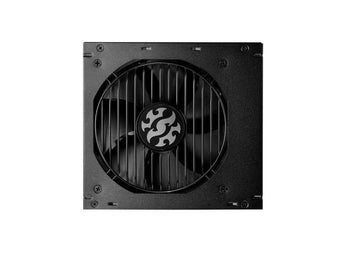

XPG CORE REACTOR ATX Power Supply: 850W Fully Modular

80 Plus Gold Certified. High Efficiency Operation With Low Noise Level.
120MM FDB Fan With Intelligent Fan Control.
High-Quality Industrial-Grade Japanese Capacitors For Extra Reliability
Fully Modular Cables For A Simple And Tidy Build.
10 Years Manufacturer Warranty

80 Plus Gold Certified

The 80 Plus Gold certified XPG CORE REACTOR Modular PC Power Supply (850W) gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.

Intelligent Fan-Curve

Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3 v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

Compact and Modular

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.

Premium Japanese Capacitators

Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR's DC voltage is maintained within ± 2% and reduces ripple and noise by up to 35% for enhanced dependability.

PSU Specifications

Dimension (W x L x H)	150 x 140 x 86mm
80 PLUS Rating	GOLD
ATX Version	Intel ATX 12V V2.52
Protections	OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification	CB / TUV / cTUVus / CCC / CE / FCC(IC) / BSMI / RCM / KC / NOM
PFC	0.99
Input Voltage	100V-240V
Input Current	10A-5A
Input Frequency	47Hz-63Hz
Operating Temperature	50â??
Fan Size	12cm
Fan Bearing	FDB
Fan Speed	2400
Noise Level @ 20%	11.2dB(A)
Noise Level @ 50%	850W : 11.3dB(A) / 750W : 11.3dB(A) / 650W : 11.2dB(A)
Noise Level @ 100%	850W : 24.7dB(A) / 750W : 22.7dB(A) / 650W : 22.3dB(A)
MTBF	100K hours at full load
ATX 24 Pin Connector	1
