YOUNUON 120x25mm Cooling Fan w/ AC Adapter and Adjustable Speed Controller

YOUNUON-120AC-D

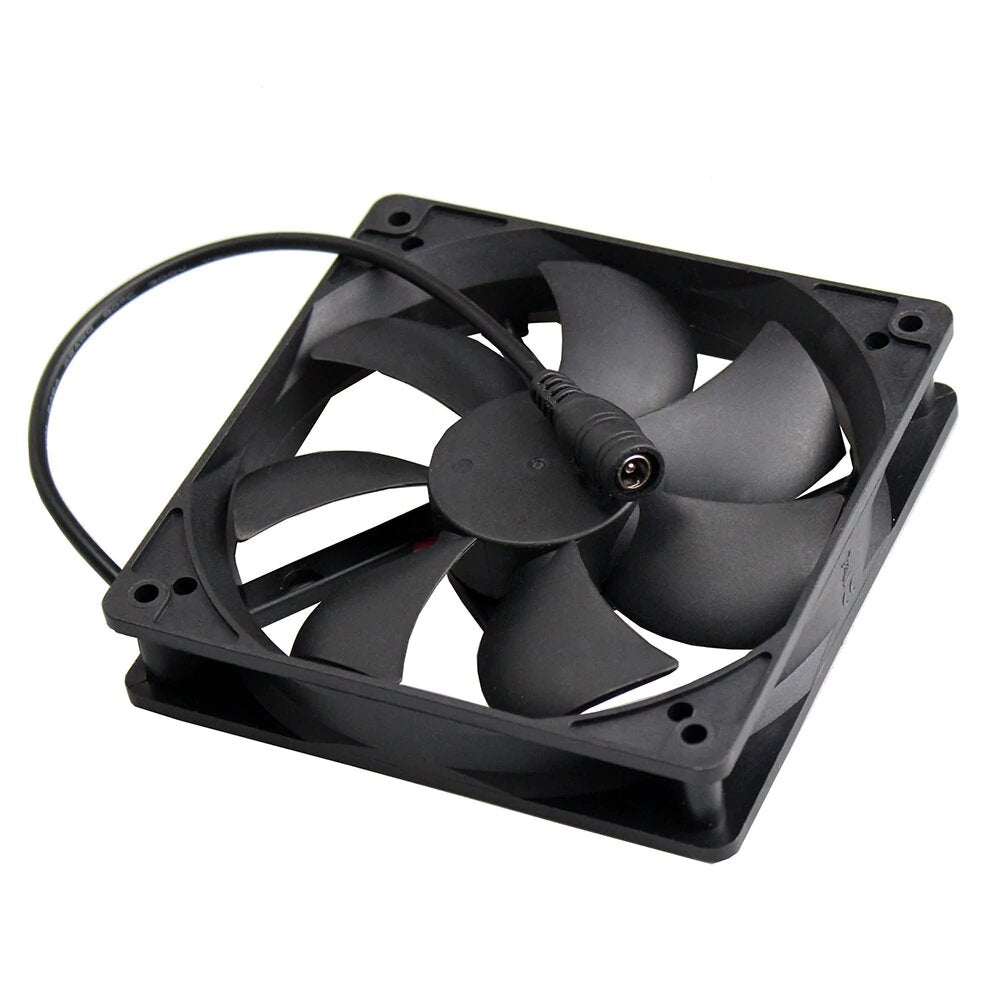

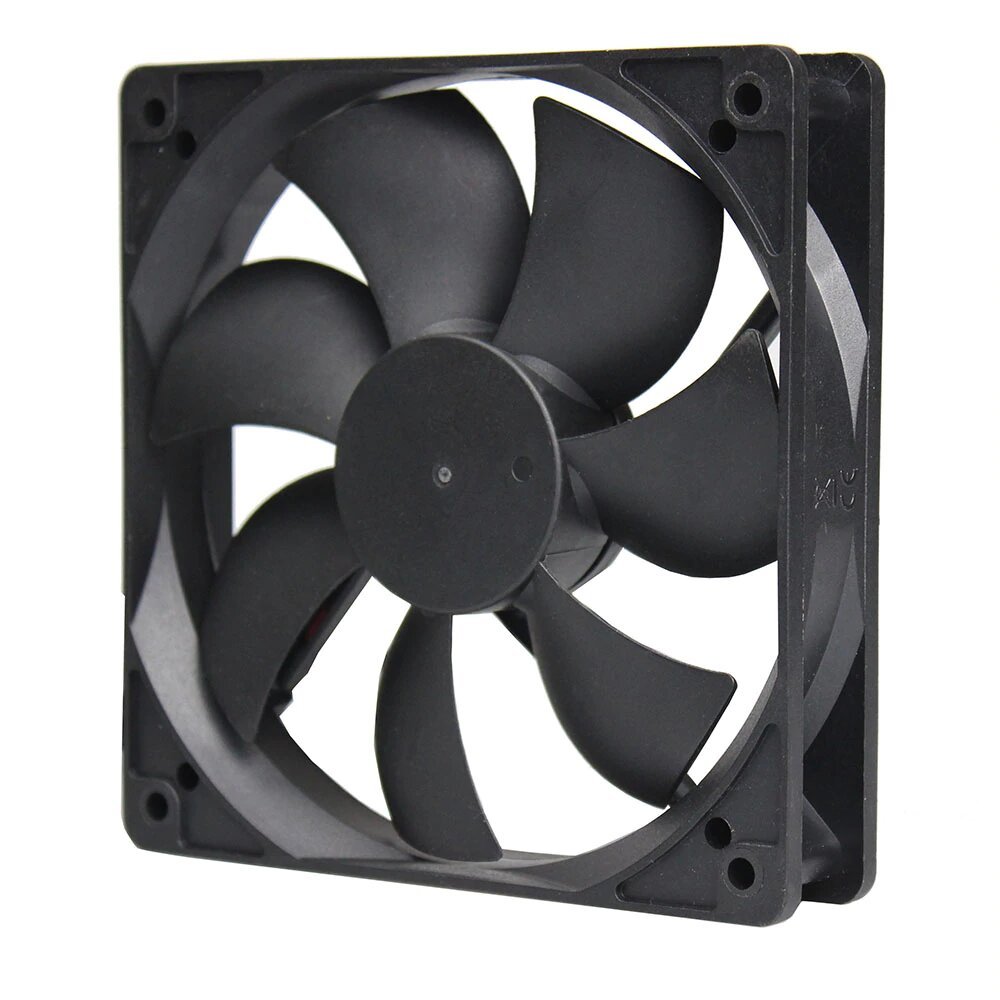

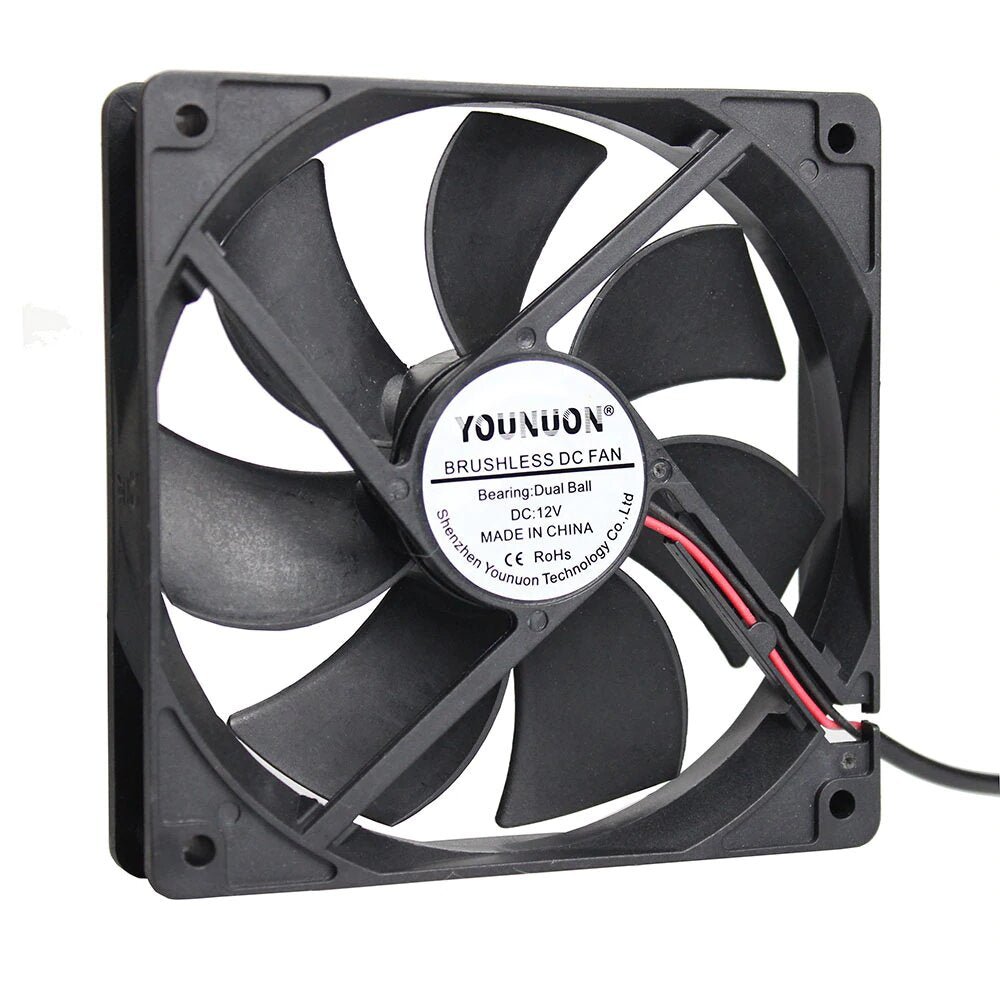

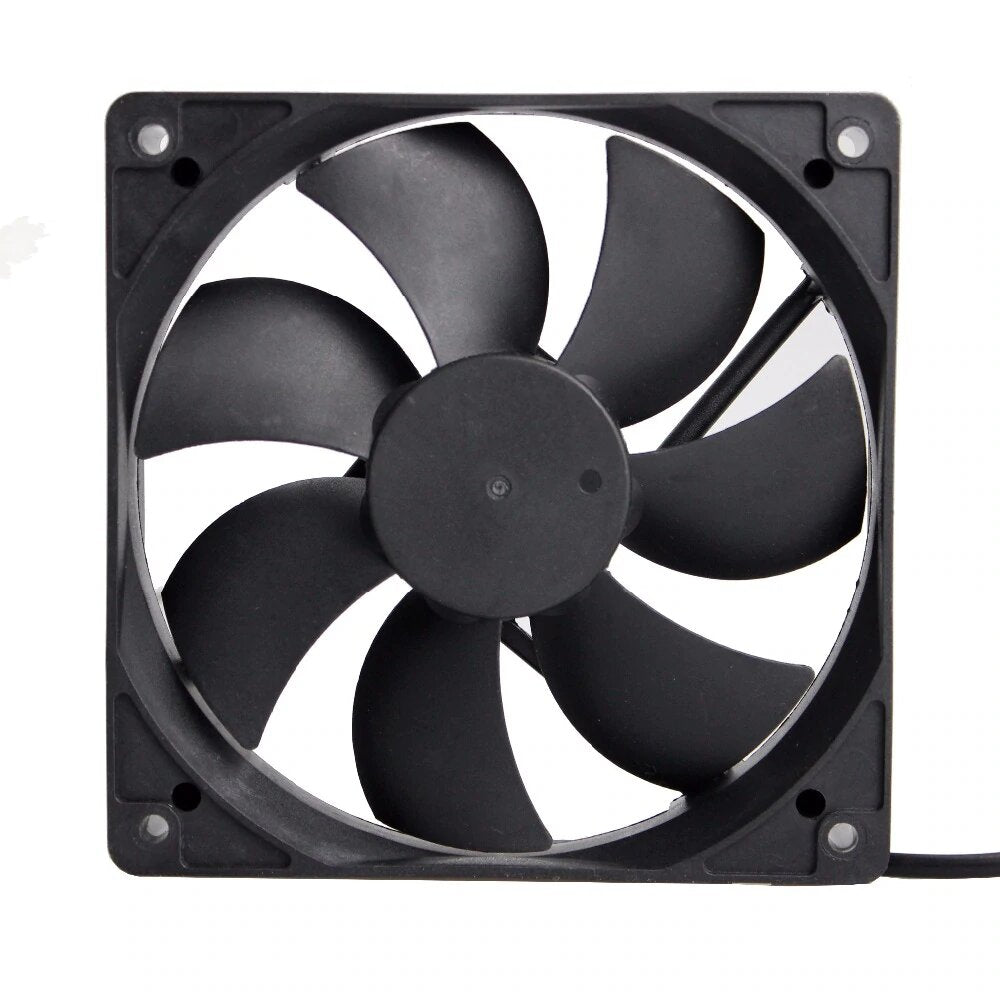

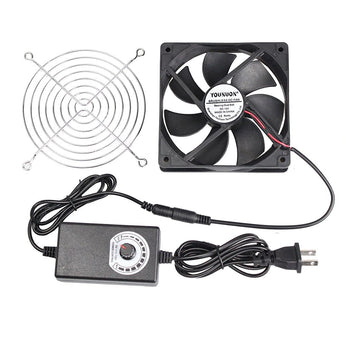

This high quality 120 X25mm AC powered fan from YOUNUON Electronics is great for extreme cooling using 110 V Power. Can be used in cases, HTPC environments, or added to any desk type enclosures for ventilation of hot air via AC power. This fan is speed adjustable from 3-12V depending on cooling needed. Fan frame is a sturdy composition and brilliant black color!

Found a better price? Let us know and we'll try and match it!
Estimate shipping
2 in stock
$29.95 USD $12.73 USD Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

This high quality 120 X25mm AC powered fan from YOUNUON Electronics is great for extreme cooling using 110 V Power. Can be used in cases, HTPC environments, or added to any desk type enclosures for ventilation of hot air via AC power. This fan is speed adjustable from 3-12V depending on cooling needed. Fan frame is a sturdy composition and brilliant black color!

Features

Applicationï¼?


  • Widely Used in:

  • Computer Case

  • Automotive field, UPS power supply, security monitoring

  • Power equipment,CNC machine tools, welding machines

  • Charging piles, network cabinets

  • Small Hear Radiating Communication equipment plate cooling heat

  • Intelligent industrial control equipment plate cooling heat

  • High Precision Medical equipment cooling

  • PC CPU Server Cooling Dissipation

  • Anywhere & electronic that need cooling

Specifications

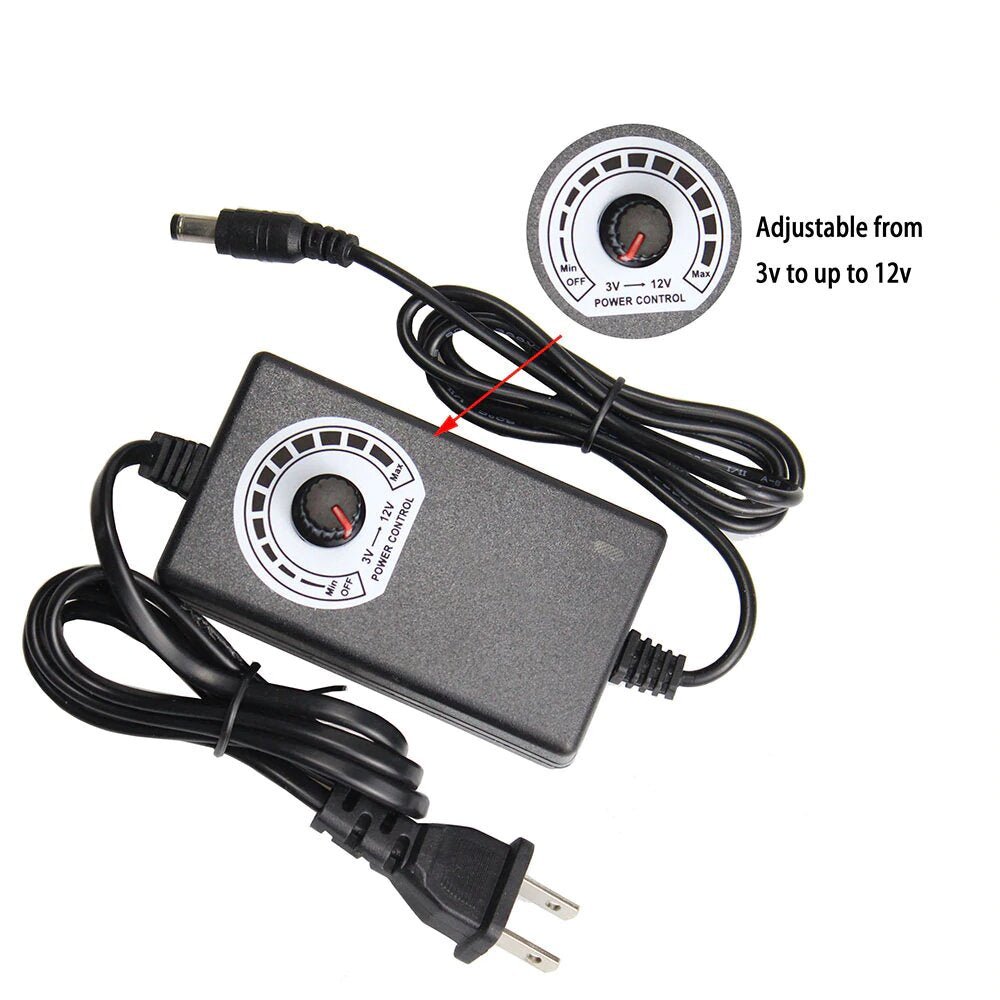

Controller


  • Power Controller:

  • Material: PC+ABS Engineering Plastic

  • Adjustable Voltage Range : 3V(min)-12V(max)

  • Power supplyï¼?AC 100V-240V

  • Inputï¼?110V-240V 50/60Hz

  • Outputï¼?DC 3V-12V 200-2000mA

  • Cable Length: appro1000mm





Parameters:


  • Dimensions:120Ã?120Ã?25mm(4.72''x4.72''x0.98')'

  • Mounting Distance: 105 ±0.3mm

  • Bearing Type: Dual Ball Bearing

  • Connector: DC Power Connector 5.5x2.5mm

  • Rated Voltage: DC 12V

  • Rated Current: 0.38Amp±10%

  • Rated Speed: 3000RPM±10%

  • Air Flow: 93CFM

  • Noise Level: 37.3dBA ±10%

  • Air Pressure:  0.27 In Hâ??O

  • Fan Life: 50000 hours

  • Cable Length: appro250mm
